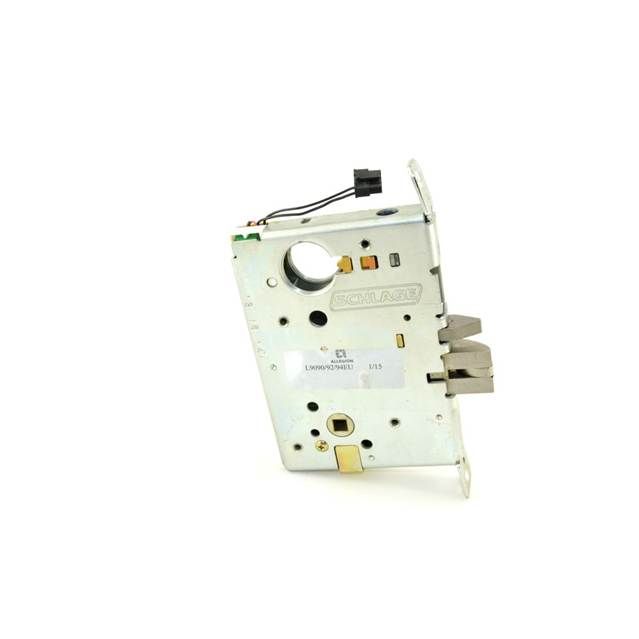

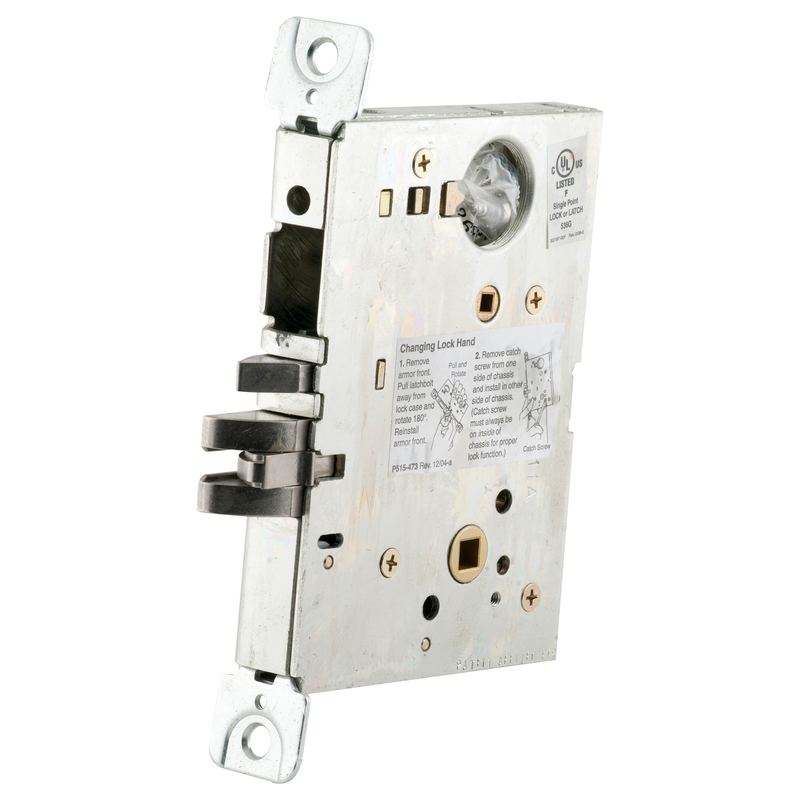

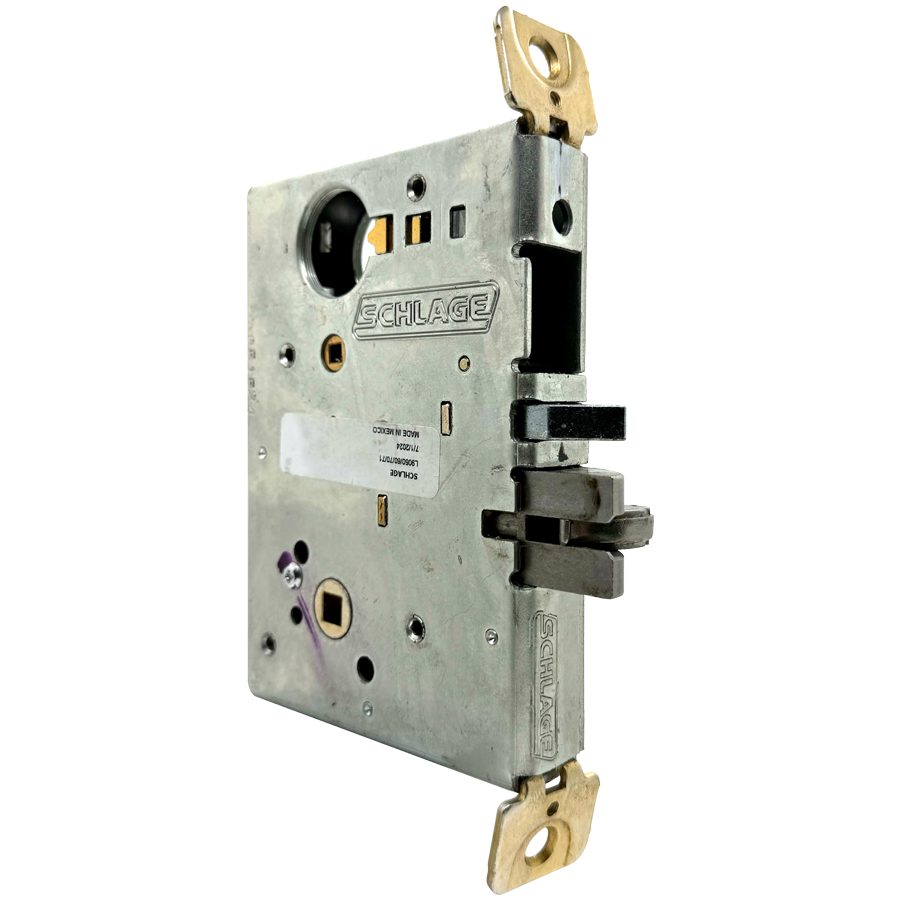

Schlage L9090LB Electrified Lock Body for L9090, L9092, L9094 Systems

Schlage Commercial L9090LB Electrified Lock Body is engineered to deliver robust security for various applications, including commercial and institutional environments. This lock body is part of the reliable L Series, showcasing Schlage's commitment to strength and advanced technology in security solutions that have been trusted for over 90 years. Designed specifically for use with L9090, L9092, or L9094 models, the L9090LB features an electrified design that allows for electrically unlocking or locking the outside lever continuously, without the need for a cylinder. Its durable zinc base construction ensures longevity, while the reversible handing adds flexibility for installation. Measuring 4-7/16" x 6-1/16" x 1", it fits standard 1-3/4" doors, accommodating a 2-3/4" backset. The lock body is UL Listed for 3-hour fire doors, providing peace of mind in critical situations. Many parts are finish specific, ensuring a tailored fit for your security needs. Schlage backs this product with a limited 10-year mechanical and 3-year electro-mechanical warranty, underlining their dedication to quality and reliability. Choose the Schlage L9090LB for an ideal blend of strength, functionality, and advanced security features.

Electrified Lock Body for Use with L9090 L9092 or L9094

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Electrified Lock Body
• L Series
• NA
• Made With Strong Materials
• Many Parts Are Finish Specific
• Universal input voltage - accepts 12 or 24V DC for installation flexibility
• User selectable fail safe/fail secure - changing mode between EL and EU is as simple as flipping a switch on the lock case
• Low maximum current draw - 0.4amps - allows multiple locks on a single power supply
• Low holding current - 0.01 amps - produces minimal heat, eliminating "hot levers" in electrically locking applications and allowing reliable operation even in poorly ventilated wood doors
• All-new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity
• New modular RX design – RX can be added on at a later time without opening the lock case
• Standard Allegion Connect quick-connect Molex system (can be cut off if traditional wiring splicing preferred)
