Schlage L9092ELB 06A 626 Grade 1 Electric NoDB Fail Safe Lock

Schlage L9092ELB 06A 626 Grade 1 Elec noDB, Fail Safe is a premium electric mortise lock designed for commercial applications that prioritize security and flexibility. This Grade 1 lock features a fail-safe function, ensuring that in the event of a power failure, the lock will remain unlocked, providing safety and accessibility. The L9092ELB is SFIC prep less core, allowing for easy customization with your choice of keying system. With a satin chromium plated finish, this lock not only offers durability but also presents a sleek, modern aesthetic. The universal input voltage of 12 or 24VDC enhances compatibility with various systems, while the user-selectable fail-safe/fail secure functions can be easily adjusted on-site. The innovative RX switch provides enhanced monitoring of the inside lever, balancing security needs with user convenience. Field reversible design simplifies installation, making it suitable for door thicknesses of 1-3/4". Fire rated for up to 3 hours, the Schlage L9092ELB lock is perfect for high-traffic commercial environments. With an operating amp draw of 400mA and a limited one-year warranty, this lock combines reliability with top-tier performance, ensuring peace of mind for building professionals and homeowners alike.

Grade 1 Elec noDB, Fail Safe

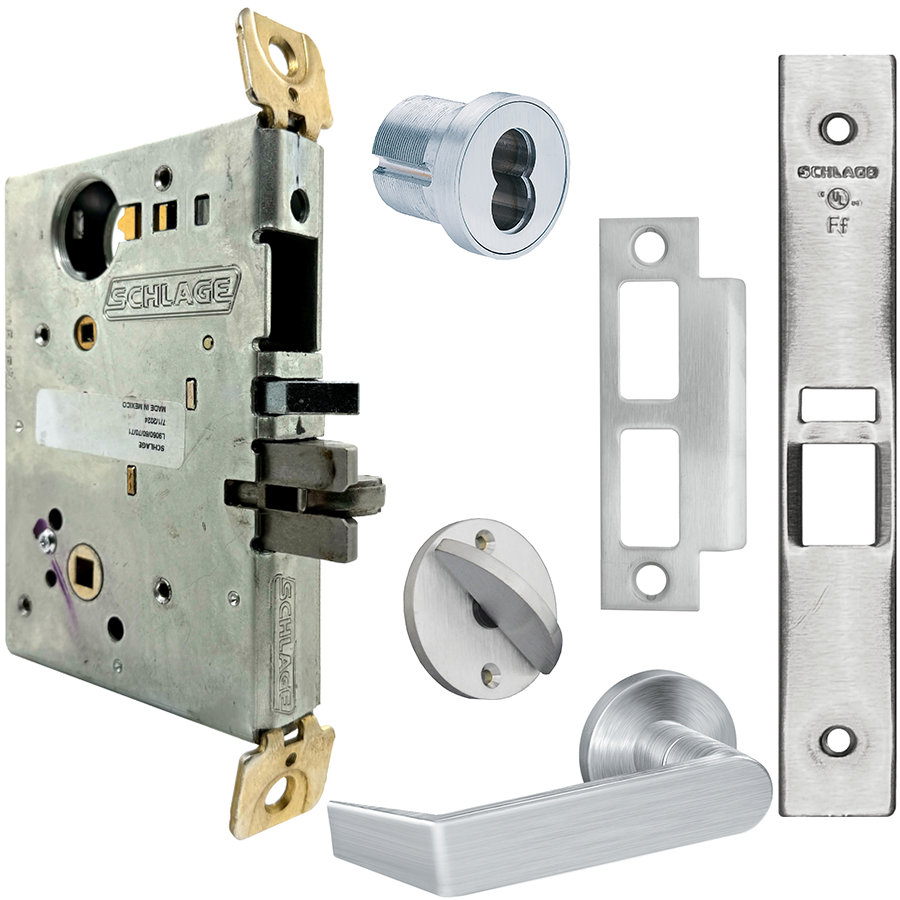

Grade 1 Fail Safe Electric Mortise Lock, SFIC Prep Less Core, 06 Lever, A Rose, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
