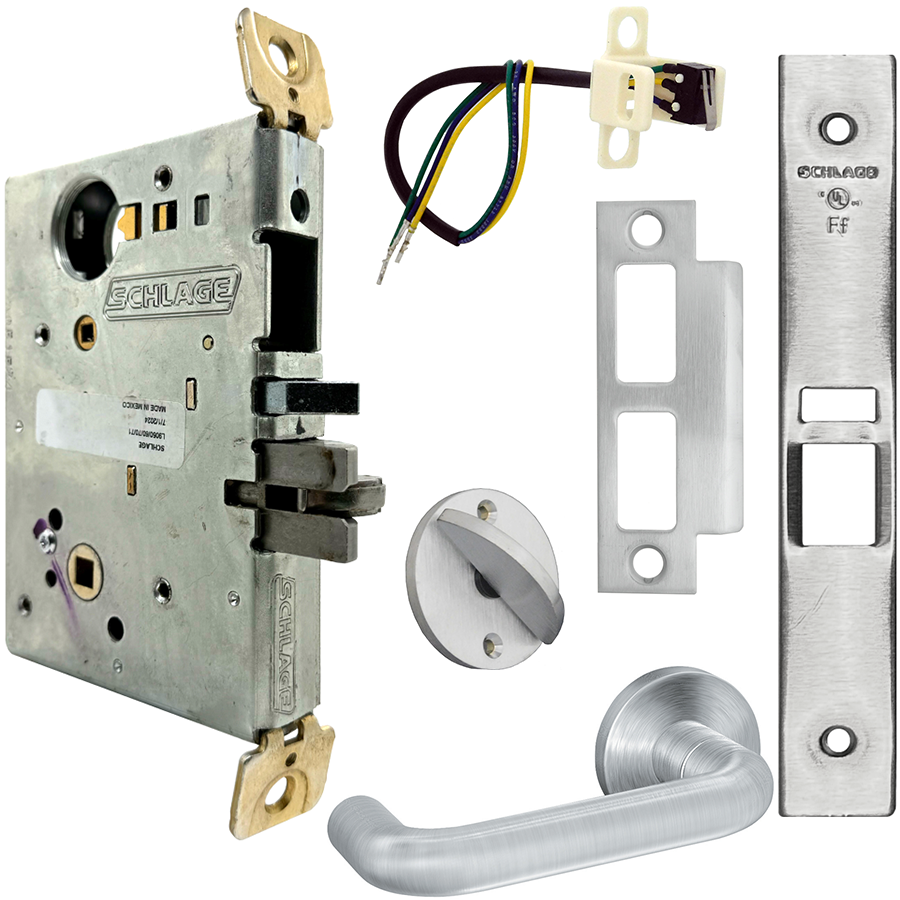

Schlage L9092ELL 03A 626 RX Grade 1 Electric NoDB Fail Safe Lock

Schlage L9092ELL 03A 626 RX Grade 1 Elec noDB, Fail Safe is a robust electric mortise lock that embodies superior security and functionality. Designed with a Grade 1 rating, this lock ensures exceptional performance and durability for commercial applications. Its fail safe feature provides enhanced safety, automatically unlocking during power failure, making it ideal for high-traffic areas. This model is equipped with a satin chromium plated finish that not only adds a touch of elegance but also ensures long-lasting wear resistance. The universal input voltage capability allows for seamless integration with either 12 or 24VDC systems, while a user-selectable fail safe/fail secure switch offers flexibility in usage settings. The innovative RX switch monitors the inside lever for heightened security, balancing sensitivity and reliability. Field reversible handing simplifies installation, accommodating varying door configurations. With a bolt projection of 3/4" and compatibility with 1-3/4" thick doors, the Schlage L9092ELL is designed for versatility. ADA compliance ensures accessibility for all users. Backed by a one-year limited warranty, this electric mortise lock is an excellent choice for building professionals seeking dependable security solutions. Whether for new construction or retrofit projects, the Schlage L9092ELL stands out as a top-tier option in the electrified lock category.

Grade 1 Elec noDB, Fail Safe

Grade 1 Fail Safe Electric Mortise Lock, Less Cylinder, 03 Lever, A Rose, Request to Exit, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
