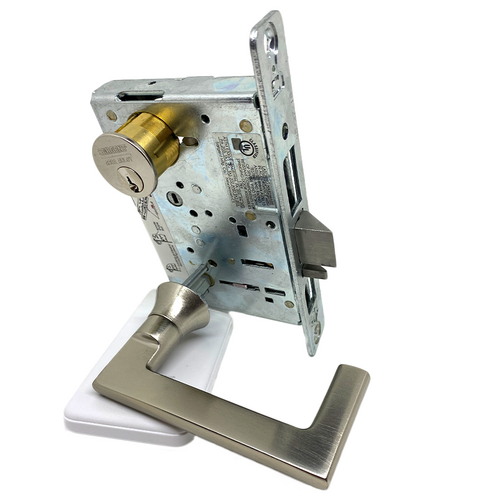

Schlage Lock Company L9092EU-R-03L-613 KIT offers robust security with its electric lock/unlock mortise design, perfect for various professional applications. This versatile lock operates on 12/24VDC and includes a convenient CON-6W 6-inch wire extension, ensuring easy installation and integration into existing systems. The full-size IC (FSIC) with a 6-pin C keyway mechanism enhances security while allowing for key control. Designed to meet ANSI/BHMA Grade 1 operational and security standards, the L9092EU features a UL listing for a 3-hour fire door, adding an essential layer of safety in emergency situations. Its oil-rubbed bronze finish (613/US10B) not only provides a sleek aesthetic but also resists wear and tear, making it suitable for high-traffic areas. Key features include security blocking hubs that prevent unauthorized access, anti-saw pins in the deadbolt to resist tampering, and a field-reversible latch bolt for easy handing adjustments. The lock also supports various monitoring options, enhancing its functionality in access control systems. With its patented Everest 29 S123 keyway, unauthorized duplication is effectively mitigated, offering peace of mind for building professionals and homeowners alike.

KIT - 03L Electric Lock/Unlock Mortise Lock, 12/24VDC, Includes CON-6W 6in Wire Extension, Full Size IC (FSIC), 6-Pin C Keyway Keyed 1-Bit, 613/US10B Oil Rubbed Bronze

The L series has long been the benchmark for grade 1 mortise locks. Beyond strength and security–it offers flexibility to meet most needs. Sixty-one mechanical functions include ten non-levered small- and large-case deadbolt functions and nine electrified functions that are regularly used as part of electronic access control systems. L Series locks have the ability to suite across electronic, tubular, exit trim, and multi-point locks to integrate seamlessly into any environment. The series features an array of security options including patented, 180-degree high visibility lock status indication trim, key override of a thumbturn being held, and support for multiple keyway families and cylinder types including Primus XP high-security cylinders.

Features:

• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Specifications:

• Chassis Case material: Cold rolled steel (CRS) with zinc dichromate plating
• Chassis Backset: 2-3⁄4" (70 mm) only
• Chassis Case size:
• L9000 Series: 4-7⁄16" x 6-1⁄16" x 1" (113 mm x 154 mm x 25 mm)
• L400 Series: 4-7⁄16" x 3-5⁄8" x 1" (113 mm x 92 mm x 25 mm)
• Chassis Door Thickness:
• Standard: 1-3⁄4" (44 mm)
• Optional: 1-3⁄8" (35 mm)
• Over 1-3⁄4" (44 mm) specify door thickness and position in door EE, EI, EO, ED
• Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).
• Trim Handing: L9000 Series: Field-reversible without disassembly. L400 Series: Non-handed
• Lever/knob:
• 33 lever designs: Forged brass and cast stainless steel
• Two knob designs (see page 5): Heavy-duty wrought brass or stainless steel Ligature resistant lever (SL1) and knob (SK1), high security ligature resistant (HSLR) trim, HL6 hospital latch
• Rose/Escutcheon:
• L escutcheons: 7-15⁄16" x 1-3⁄4" x 7⁄16" (202 mm x 44 mm x 11 mm); cold-forged brass and stainless steel
• N escutcheons: 7-7⁄8" x 2-1⁄2" x 7⁄16" (200 mm x 64 mm x 11 mm); heavy-wrought, reinforced brass and stainless steel
• Roses: A, B, C: wrought brass and stainless steel; AVA and MER: forged brass
• Combinations: Available with knob both sides, lever both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
• Armor:
• L9000 Series: Standard: 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm). Optional: 1-1⁄16" x 8" x 7⁄32" (27 mm x 203 mm x 6 mm)
• L400 Series: Standard: 1-1⁄4" x 5-9⁄16" x 7⁄32"(32 mm x 141 mm x 6 mm)
• Latch: 3⁄4" (19 mm) throw stainless steel latch with anti-friction tongue
• Deadbolt: 1" (25 mm) throw stainless steel deadbolt
• Strike:
• L9000 Series: Standard: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) x 1-3⁄16" (30 mm) lip with dust box; optional: extended lip strike options (7⁄8", 1", 1-1⁄2", 1-3⁄4", 2")
• L400 Series: Standard: 1-1⁄8" x 3-1⁄2" (29 mm x 89 mm) with dust box; optional: 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) with dust box
• Cylinder format: 6-pin Conventional mortise cylinder (standard); also available in concealed mortise cylinder, FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options. Two nickel silver cut keys per lock.
• Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus XP security levels with available master keying and construction keying.

Standard Lever and Knob Styles:

• 01: Width: 3.88". Projection: 2.69"
• 02: Width: 4.75". Projection: 2.81"
• 03 (Tubular): Width: 4.75". Projection: 2.81"
• 05: Width: 3.75". Projection: 2.88"
• 06 (Rhodes): Width: 4.63". Projection: 2.5"
• 07 (Athens): Width: 4.63". Projection: 2.88"
• 12: Width: 4.63". Projection: 3.06"
• 17 (Sparta): Width: 4.75". Projection: 3"
• 18: Width: 4.88". Projection: 2.69"
• ACC (Accent): Width: 4.13". Projection: 3.13"
• AST (Asti): Width: 4". Projection: 2.63"
• LAT (Latitude): Width: 4.75". Projection: 2.56"
• LON (Longitude): Width: 4.88". Projection: 2.56"
• MER (Merano): Width: 4". Projection: 3.13"
• OME (Omega): Width: 5.06". Projection: 3.31"
• 41: Width: 2.21". Projection: 2.34"
• 42: Width: 2.13". Projection: 2.54"

Non-Keyed Functions:

• L9010: Passage latch
• ANSI F01
• Levers (or knobs) only-both sides; latchbolt only
• Latchbolt retracted by lever (or knob) from either side at all times
• Inside lever always free for immediate egress
• L9025: Exit or communicating lock
• ANSI F31
• No outside trim; lever (or knob) only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from inside only
• Inside lever always free for immediate egress
• L/LV9040: Bath/bedroom privacy lock
• ANSI F22
• Emergency thumbturn access outside; thumbturn inside; latchbolt only
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by rotating inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
• Inside lever always free for immediate egress
• Note: Hospital latch trim not available with Vandlgard option.
• L/LV9040 with XL11-446: Privacy with thumbturn both sides
• Thumbturn both sides; latchbolt only
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by rotating either thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating either thumbturn unlocks outside lever
• Rotating inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks
• Inside lever always free for immediate egress
• Note: Available in rose or L escutcheon trim only.
• L/LV9044: Privacy with coin turn outside
• Coin turn outside; thumbturn inside; latchbolt only
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by rotating outside coin turn or inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating outside coin turn unlocks outside lever
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L9412 with XL11-907: Exit lock with deadbolt
• Lever (or knob) only-outside; thumbturn inside with lever; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever
• Deadbolt thrown or retracted by rotating inside thumbturn
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• L/LV9440: Privacy with deadbolt
• ANSI F19
• Emergency thumbturn access outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by rotating inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• L/LV9444: Privacy with deadbolt and coin turn outside
• Coin turn outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by rotating inside thumbturn or outside coin turn; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating outside coin turn retracts deadbolt and unlocks outside lever
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.

Single Cylinder Non-Deadbolt Functions:

• L9026: Exit lock with cylinder
• Key cylinder only, no lever (or knob) outside; lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from inside
• Key outside retracts latchbolt
• Inside lever always free for immediate egress
• Note: Available in rose or L escutcheon trim only.
• L/LV9050: Entrance/office lock
• ANSI F04
• Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key outside or by turning inside thumbturn; Vandlgard option allows both levers to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt but does not unlock
• Inside lever always free for immediate egress
• Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9056, L/LV9056 with XL13-439: Entrance/office lock with automatic unlocking
• Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key outside or by turning inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt; XL13-439 option also allows key override of thumbturn if being held in locked position
• Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9070: Classroom lock, exterior lockdown only
• ANSI F05
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9076: Classroom holdback lock, exterior lockdown only
• ANSI F06
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside unlocks outside lever and retracts latchbolt
• Rotate inside lever while turning key 360° to activate retracted latch holdback feature; to deactivate, reverse key rotation 360°
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key.
• Note: Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9080: Storeroom lock
• ANSI F07
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Outside lever always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts latchbolt
• Inside lever always free for immediate egress
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9081: Accessible storeroom lock
• Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside inserted and turned 280° unlocks allowing outside lever to retract latchbolt
• Inside lever always free for immediate egress

Double Cylinder Non-Deadbolt Functions:

• L/LV9060: Apartment entrance lock
• ANSI F09
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key inside; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts latchbolt but cannot lock or unlock outside lever
• Rotating inside lever retracts latchbolt; key inside retracts latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key inside.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9066 with XL11-897: Store lock
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Both levers are made inoperative by key from either side
• Key use on either side unlocks both levers and retracts latchbolt
• Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9071: Classroom security lock, interior/exterior lockdown
• ANSI F32
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Rotating inside lever retracts latchbolt; key on either side unlocks outside lever and retracts latchbolt
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9077: Classroom security holdback lock, interior/exterior lockdown
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts latchbolt but cannot unlock outside lever
• Rotating inside lever retracts latchbolt; key inside retracts latchbolt and unlocks outside lever
• Rotate inside lever while turning key 360° to activate retracted latch holdback feature; to deactivate, reverse key rotation 360°
• Inside lever always free for immediate egress
• Note: Outside lever remains inoperative until unlocked by key inside.
• Note: Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9082: Institution lock
• ANSI F30
• Key cylinder both sides; latchbolt and deadlocking auxiliary latch
• Both levers (or knobs) always fixed; Vandlgard option allows both levers to rotate freely down while locked
• Key on either side retracts latchbolt
• Caution: Double cylinder locks on anydoor, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.

Single Cylinder Deadbolt Functions:

• L/LV9453: Entrance/office lock with deadbolt
• ANSI F20
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside; rotating thumbturn 20° locks outside lever only; rotating thumbturn 90° also throws deadbolt; Vandlgard® option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked
• Rotating inside lever retracts deadbolt and latchbolt; outside lever unlocked when thumbturn is returned to vertical position
• Inside lever always free for immediate egress
• Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9456, L/LV9456 with XL13-439: Corridor lock with deadbolt
• ANSI F13
• Key cylinder outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside or by inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and unlocks outside lever; XL13-439 option allows key to retract deadbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9460 with XL11-635: Cylinder x thumbturn deadbolt with fixed levers
• Key cylinder outside; thumbturn inside; deadbolt only
• Both levers (or knobs) always fixed
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• L9460 with XL11-886: Cylinder x thumbturn deadbolt with inside active lever
• Key cylinder outside; thumbturn inside; deadbolt only
• Outside lever (or knob) always fixed; inside lever always active
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Rotating inside lever retracts deadbolt
• Inside lever always free for immediate egress
• L9464 with XL11-886: Single cylinder deadbolt with inside active lever
• Key cylinder outside with lever (or knob); lever only-inside; deadbolt only
• Outside lever always fixed; inside lever always active
• Deadbolt thrown or retracted by key outside
• Rotating inside lever retracts deadbolt
• Inside lever always free for immediate egress
• L9465: Closet/storeroom lock
• Key cylinder outside with lever (or knob); lever only-inside; deadbolt and latchbolt
• Latchbolt retracted by lever from either side at all times
• Deadbolt thrown or retracted by key outside
• Caution: Deadbolt locks with outside key retraction only can result in situations where occupants can be locked in.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9473: Dormitory/bedroom lock
• ANSI F21
• Key cylinder outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side at all times
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9480, L/LV9480 with XL13-439: Storeroom lock with deadbolt
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked; XL13-439 option allows key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9485, L/LV9485 with XL13-439: Faculty/hotel restroom lock with deadbolt
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by rotating inside thumbturn
• Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately); XL13-439 option allows emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• Note: Not available in SFIC or Everest SL formats.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L9485 with XL11-557: Prison function lock
• Key cylinder outside with knob; knob only-inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside knob always free spinning; latchbolt retracted by inside knob
• Inside knob is made inoperative (fixed) when deadbolt is thrown by guard key outside
• Guard key outside retracts deadbolt and unlocks inside knob; in unlocked state use of prisoner’s key outside retracts latchbolt only
• Note: Available with knobs in rose or L escutcheon trim only. Tamper-resistant torx screws standard.
• L/LV9486, L/LV9486 with XL13-439: Faculty/hotel restroom lock with chevron indicator
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard® option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by rotating inside thumbturn, when thrown-indicator message changes from blank to "do not disturb"
• Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately); XL13-439 option allows emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
• Note: Not available in SFIC or Everest SL formats. Hospital latch trim not available with Vandlgard option.
• To order with key override, specify function and note XL13-439 as a special option.
• Available with A, B or C roses only; to order chevron indicator with "occupied" message specify L583-375.
• L/LV9496, L/LV9496 with XL13-439: Corridor lock with chevron indicator
• Key cylinder outside; thumbturn inside; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside or by inside thumbturn, when thrown-indicator message changes from blank to "occupied"; Vandlgard option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and unlocks outside lever; XL13-439 option allows key to retract deadbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Available in rose trim only.
• To order with key override, specify function and note XL13-439 as a special option.
• Adds chevron style occupancy indicator (09-611) to sectional trim lock with A or B roses only.

Double Cylinder Deadbolt Functions:

• L/LV9457: Classroom security lock with deadbolt
• ANSI F33
• Key cylinder both sides; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key either side retracts both latchbolt and deadbolt and unlocks outside lever
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L/LV9458: Classroom security lock with deadbolt and auxiliary latch
• ANSI F34
• Key cylinder both sides; deadbolt, latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever (or knob) from either side
• Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key either side retracts both latchbolt and deadbolt and unlocks outside lever
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
• Note: Ligature-resistant trims not available with Vandlgard option.
• L9462 with XL11-886: Double cylinder deadbolt with active inside lever
• Key cylinder both sides; deadbolt only
• Outside lever (or knob) always fixed; inside lever always active
• Deadbolt thrown or retracted by key from either side
• Rotating inside lever retracts deadbolt
• Inside lever always free for immediate egress
• L9466: Utility room/storeroom lock
• ANSI F14
• Key cylinder both sides; deadbolt and latchbolt
• Latchbolt retracted by lever (or knob) from either side
• Deadbolt thrown or retracted by key from either side
• Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
• Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
• L/LV9482 x XL11-543: Institution lock with deadbolt
• Key cylinder both sides; deadbolt, latchbolt and deadlocking auxiliary latch
• Both levers always fixed; Vandlgard option allows both leversto rotate freely down while locked
• Deadbolt thrown or retracted by key from either side
• Key on either side retracts both deadbolt and latchbolt
• Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome with antimicrobial coating
• 629 - Bright stainless steel
• 630 - Satin stainless steel
• 630AM - Satin stainless steel antimicrobial
• 643e - Aged bronze
