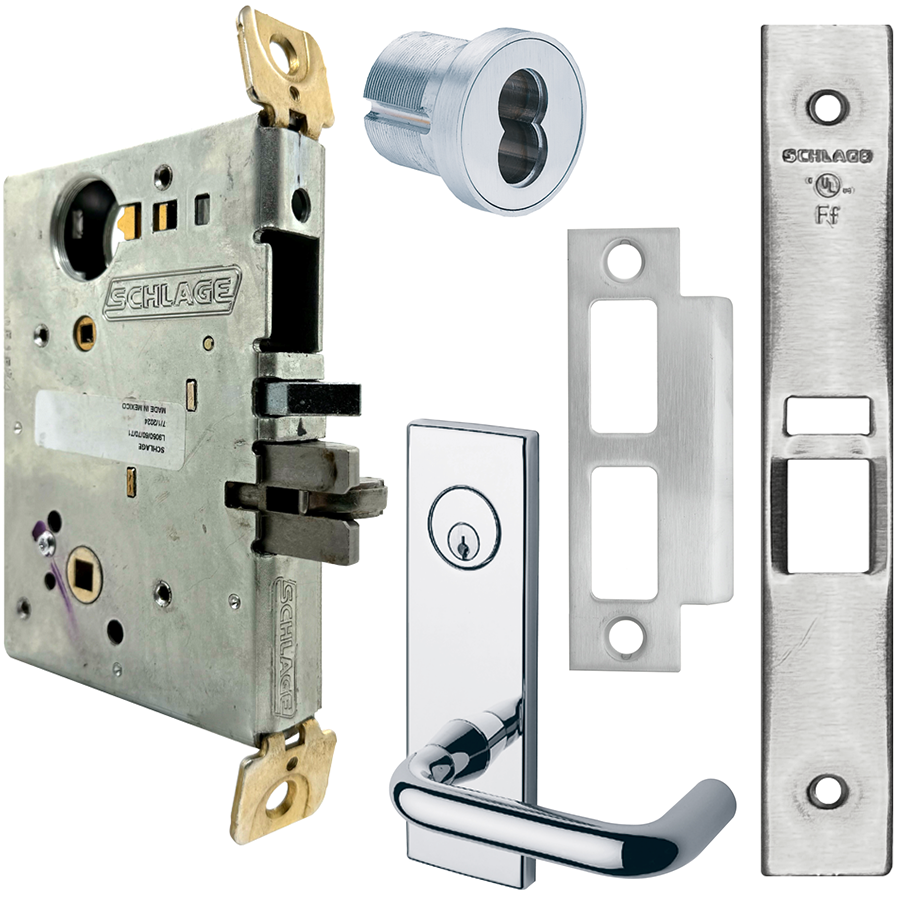

Schlage L9092EUB 03L 626 Grade 1 Electric NoDB Fail Secure

Schlage L9092EUB 03L 626 Grade 1 Elec noDB, Fail Sec offers robust security and advanced technology in a fail-secure electric mortise lock. Engineered to meet Grade 1 standards, this lock is perfect for commercial applications, providing a reliable solution for high-traffic areas. The sleek satin chromium plated finish adds a modern touch, ensuring durability while maintaining aesthetic appeal. With its SFIC prep less core, the L9092 allows for easy customization and adaptability. The universal input voltage of 12VDC or 24VDC ensures compatibility with a variety of systems, while user-selectable fail safe/fail secure functions can be effortlessly adjusted in the field. The innovative RX switch enhances security by monitoring the inside lever with an advanced detection level, balancing sensitivity and reliability. This feature can be added on-site without the need to open the lock case, providing added convenience for installers. Designed for doors with a thickness of 1-3/4", the Schlage L9092 also boasts a bolt projection of 3/4" and comes with a limited 1-year warranty. Its field-reversible handing and ADA compliance make it accessible for all users. Experience peace of mind with this state-of-the-art electric lock from Schlage.

Grade 1 Elec noDB, Fail Sec

Grade 1 Fail Secure Electric Mortise Lock, SFIC Prep Less Core, 03 Lever, L Escutcheon, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
