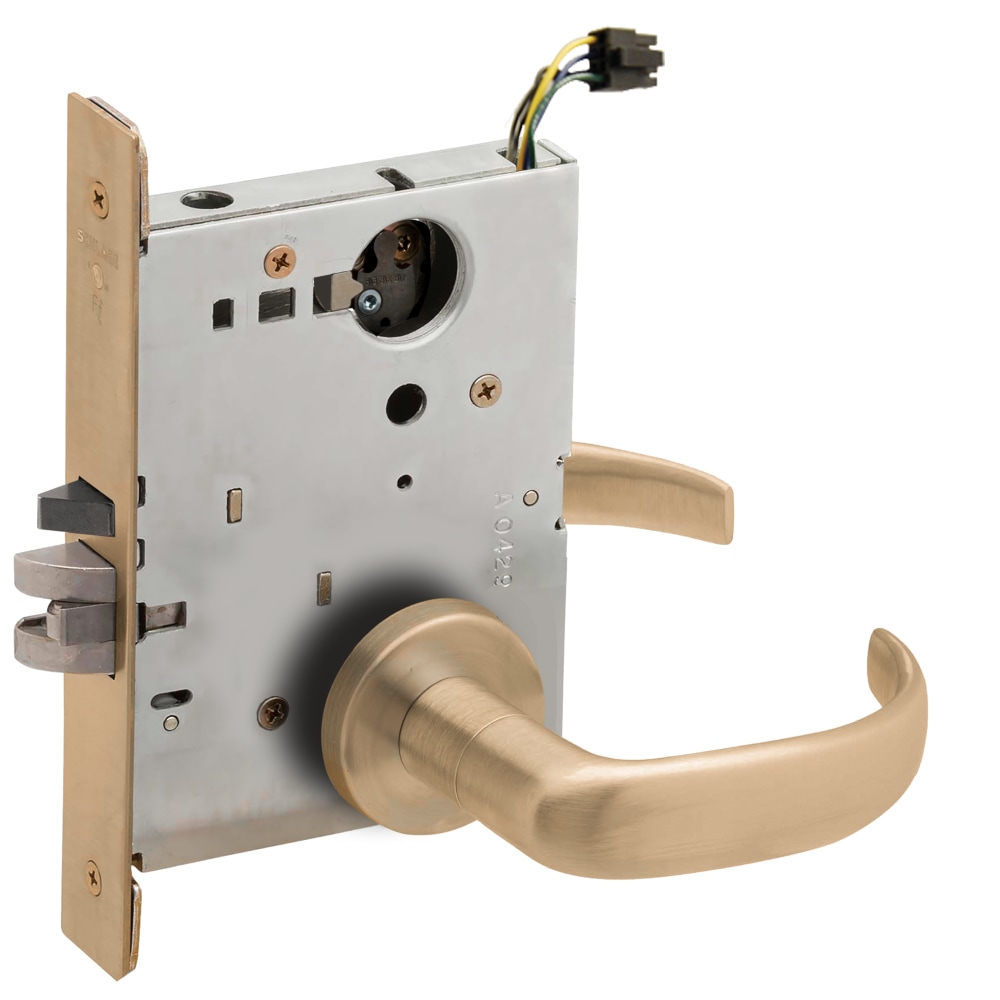

Schlage L9092EUL 17A 609 RX Grade 1 Elec noDB, Fail Sec is a Grade 1 fail secure electric mortise lock designed for commercial applications, providing enhanced security and convenience. Crafted with a sleek satin brass finish and a blackened satin relieved clear coat, this lock not only meets aesthetic expectations but also delivers exceptional performance. Equipped with the latest technology, the L909x Series offers universal input voltage options of 12 or 24VDC, allowing for versatile installations. The unique fail safe/fail secure functionality is easily selectable in the field, providing flexibility based on security needs. The advanced RX switch enhances detection levels for the inside lever, striking an ideal balance between security and sensitivity, and can be added without opening the lock case. This electric mortise lock features a field-reversible design, ensuring compatibility with various door configurations. With an operating voltage of 12VDC/24VDC and a robust bolt projection of ¾ inch, it guarantees reliable operation. The lock is also ADA compliant and offers a fire rating of up to 3 hours, making it an excellent choice for safety-conscious installations. With a limited one-year warranty, the Schlage L9092EUL is a dependable solution for those seeking both security and sophistication in their locking systems.

Grade 1 Elec noDB, Fail Sec

Grade 1 Fail Secure Electric Mortise Lock, Less Cylinder, 17 Lever, A Rose, Request to Exit, Satin Brass Blackened Satin Relieved Clear Coated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
