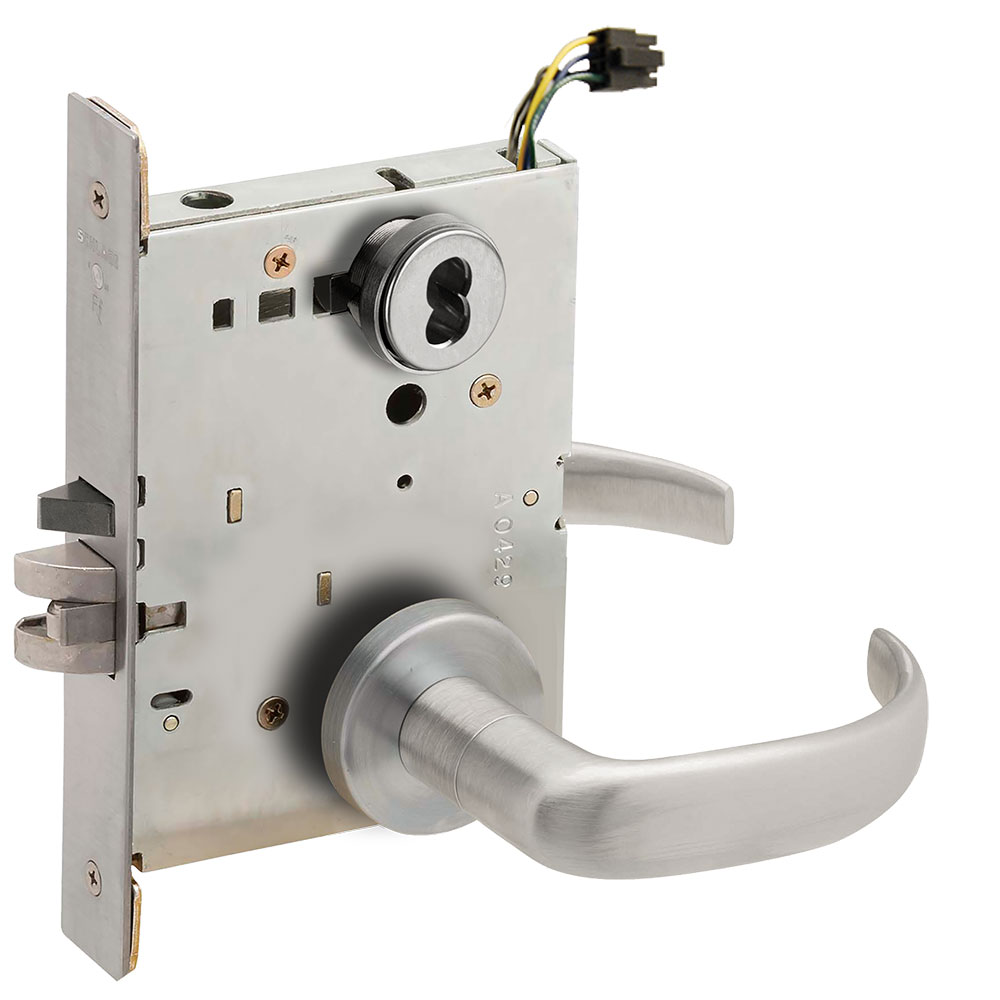

Schlage L9093EUJ 17A 626 Grade 1 Electric Both Levers, No DB

Schlage L9093EUJ 17A 626 Grade 1 Elec Both Lvrs, noDB is a top-tier fail secure electric mortise lock designed for commercial applications. Featuring a Grade 1 rating, it guarantees exceptional durability and security. This lock utilizes a satin chromium plated finish, providing both aesthetic appeal and resistance to wear. The L9093EUJ supports universal input voltage, accommodating both 12VDC and 24VDC, and allows for user-selectable fail safe or fail secure functions, easily adjusted via a switch within the lock case. The innovative RX switch enhances security by monitoring the inside lever with improved detection levels, ensuring a balance between security needs and user access. Designed for doors with a thickness of 1-3/4 inches, this electric lock is field reversible for versatile installation. Its robust construction features a brass or bronze base material, a bolt projection of 3/4 inch, and a fire rating of 3 hours, offering confidence and reliability in critical environments. With a lever design of 17, an A rose escutcheon, and a combination of screws for installation, the L9093EUJ is engineered for easy integration into existing systems. Backed by a limited 1-year warranty, this lock exemplifies Schlage's commitment to quality and security.

Grade 1 Elec Both Lvrs, noDB

Grade 1 Fail Secure Electric Mortise Lock, Schlage FSIC Prep Less Core, 17 Lever, A Rose, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
