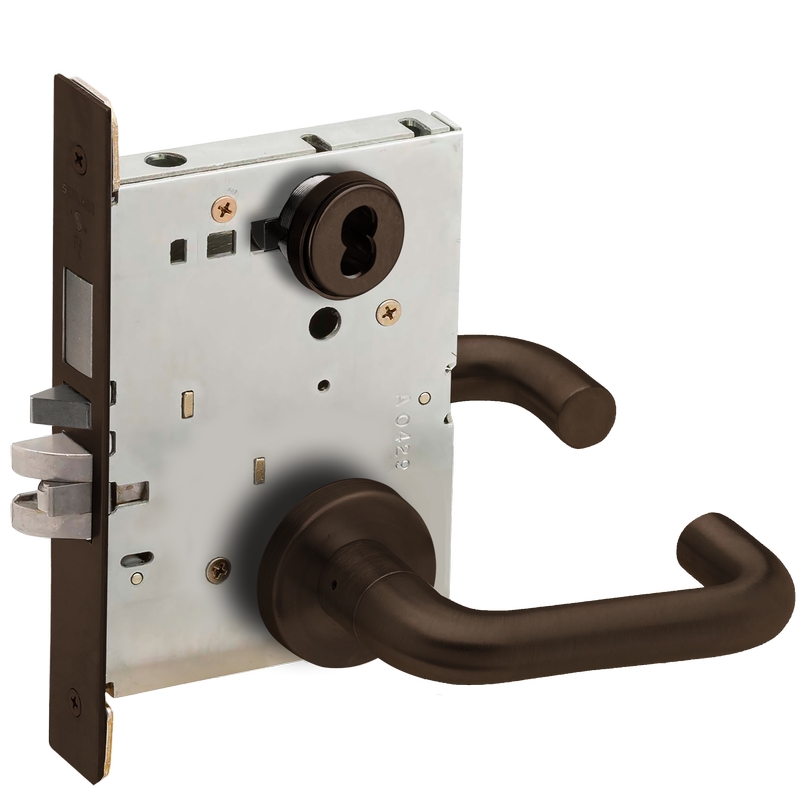

Schlage Commercial L9453B03A613 Entry / Office with Deadbolt Mortise Lock offers a robust solution for security and accessibility in commercial settings. This lock features a small format IC less core design, making it an ideal choice for both entry and office applications. Its stylish oil rubbed bronze finish not only enhances aesthetics but also offers durability against wear and tear. Designed with a 2-3/4" backset and a reversible handing, the L9453B03A613 accommodates various door configurations, ensuring convenient installation. The lock's dimensions include a 2-1/8" rose and a 4-3/4" lever, providing a comfortable grip, while the 2-13/16" projection ensures a streamlined profile. The ANSI strike enhances its compatibility with standard door frames, reinforcing security. With the added functionality of a deadbolt, this lock provides an extra layer of protection, making it suitable for high-traffic areas that require both convenience and security. The L Series is known for its reliability, and this model exemplifies that commitment to quality. Whether for a new installation or a replacement, the Schlage Commercial L9453B03A613 is an excellent choice for professionals seeking dependable door hardware solutions.
Attributes
Alternate Codes: L9453B03A613
Ansi: A156.13-2017 Series 1000
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 3/4" Latch, 1" Deadbolt
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Lock Sets, Mortise Locks
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Length: 1-1/8"
Cylinder Type: Less Core, SFIC
Design: 03 Lever
Dimension: 2-1/8" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: Entry / Office with Deadbolt
Function Family: Entrance/Office
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 2-3/4"
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Design: 3
Lever Knob Design: 03 Lever
Leverknob Design: 03 Lever
Leverknob Design Family: Tubular Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset - Latch and Deadbolt
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Pins: 6 to 7
Projection: 2-13/16"
Rose Escutcheon Design: A Rose
Rose Number: 09-404 A 613, 09-403 A 613
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8" Diameter, 13/32" Projection
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: L283-008, L283-006, L283-004
Std Latch Type: Combination Latch and Bolt
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 613
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Lock Sets
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
