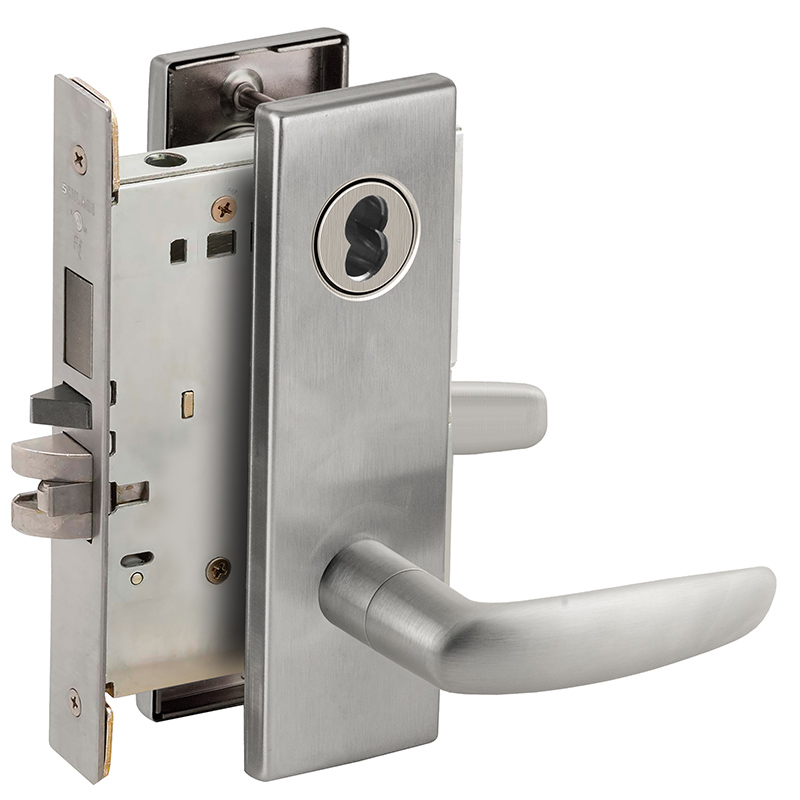

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Ansi: F20 - Entry/Office
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Design: NULL
Dimension: 2-1/2" x 7-7/8" Escutcheon with 4-5/8" Lever and 2-7/8" Projection
Door Range: 1-3/4"
Door Thickness: 1.75
Dust Box: K510-066
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9453-Entrance Office Lock w Deadbolt
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 07 - Lever
Leverknob Design: 07 Lever
Limited Warranty: 3 Years
Lock Face Size: 1.25
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Projection: 2-7/8"
Rose Escutcheon Design: N - Escutcheon
Roseescutcheon Design: N Escutcheon
Screws: C203-736
Series: L Series
Std Strike Height: 4.875
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1.1875
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4.875
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1.1875
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
