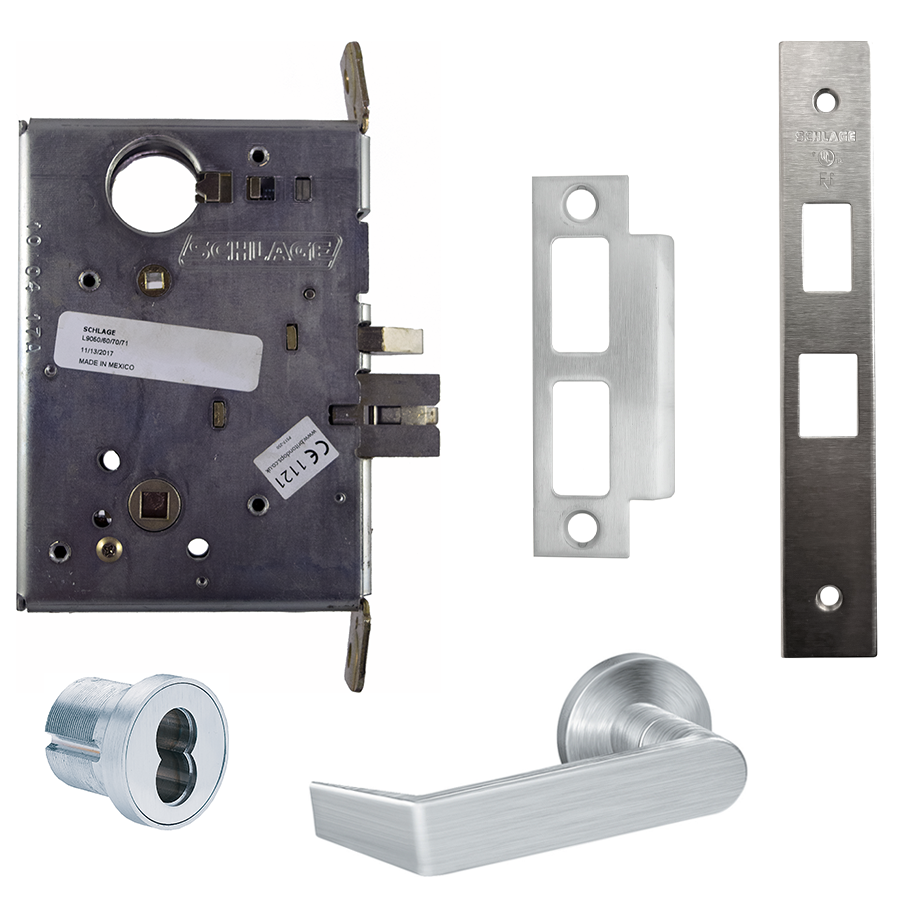

Schlage L9456B06B626 Corridor Mortise Lock, Small Format IC, 06 Lever, Satin Chrome Finish

Schlage Commercial L9456B06B626 Corridor Mortise Lock is designed to provide robust security and functionality for commercial applications. This lock features a small format interchangeable core, allowing for easy rekeying when necessary, ensuring flexibility for property management. Its sleek satin chrome finish not only adds a modern touch but also enhances durability against wear. The corridor function allows for latchbolt retraction from either side, while the deadbolt can be thrown using a key or thumbturn. This design ensures that the inside lever remains free for immediate egress, a critical feature for safety in emergency situations. Certified to ANSI/BHMA A156.13-2012 and UL listed for a three-hour fire door, this lock meets rigorous safety standards. With a 2-3/4" backset and a 1-3/4" door thickness, the Schlage L9456B is compatible with a wide range of door applications, making it a versatile choice. The 2-9/16" rose and 4-5/8" lever design complement the lock's functionality, while the 10-year limited mechanical warranty offers peace of mind. For building professionals seeking a reliable and stylish locking solution, this mortise lock stands out as a strong contender.

Corridor Mortise Lock with Small Format IC Less Core with 06 Lever and B Rose Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• Corridor - Latchbolt Retracted From Either Side, Deadbolt Thrown by Key or Thumbturn, Throwing Deadbolt Locks Outside Lever, Turning Inside Lever Retracts Deadbolt and Latchbolt and Unlocks Outside Lever, Inside Lever is Always Free for Immediate Egress,
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
