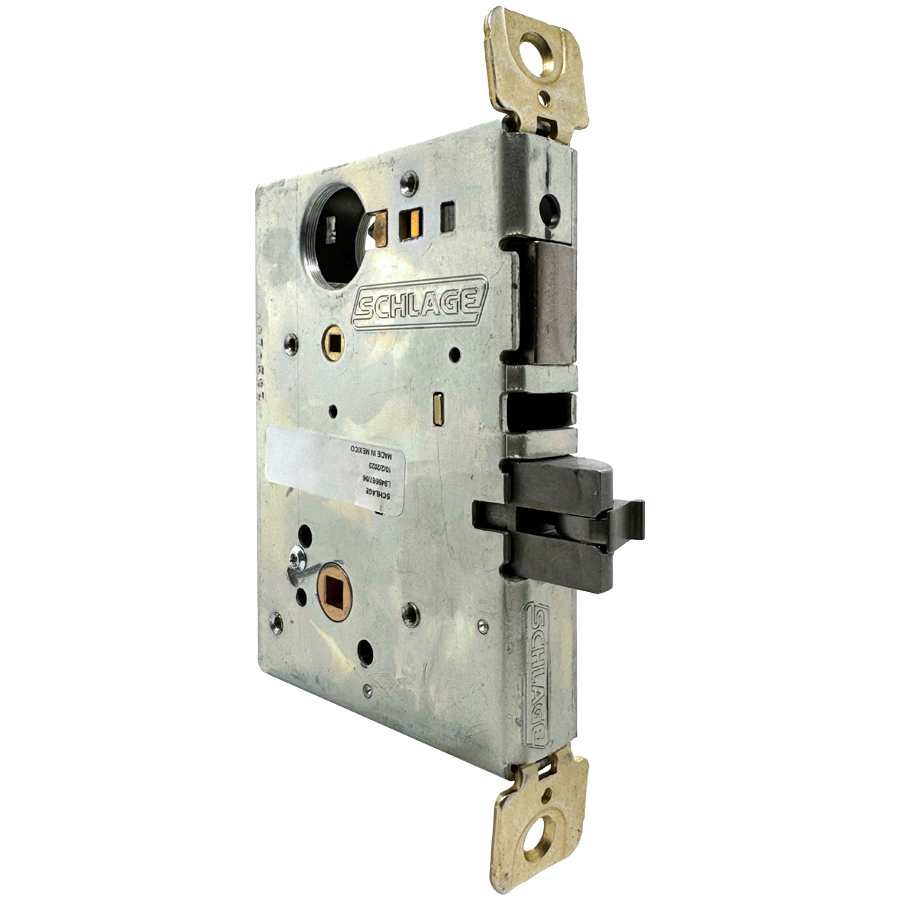

Schlage L9456LB L283-138 Mortise Lock Body for L9456, L9457, L9496

Schlage Commercial L9456LB L283-138 Mortise Lock Body is engineered for robust security and unmatched durability in high-traffic environments. This corridor function lockset allows for the latchbolt to be retracted from either side, with a deadbolt that can be thrown by key or thumbturn. The design ensures that the outside lever is locked when the deadbolt is engaged, while the inside lever remains free for immediate egress-making it an ideal choice for both safety and convenience. Constructed to meet ANSI/BHMA Certified A156.13-2012 standards, this Commercial Grade 1 lock body is UL Listed for a 3-hour fire door, providing peace of mind when it matters most. Designed for 1-3/4" doors, with a 2-3/4" backset, it features dimensions of 4-7/16" x 6-1/16" x 1" and a latch faceplate dimension of 1-1/4" x 8". Crafted from zinc base material, the L9456LB is built to withstand the rigors of commercial use. With a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, this lock body reflects Schlage's commitment to quality and reliability in security solutions. Secure your property with confidence using Schlage Commercial L9456LB.

L283-138 Mortise Lock Body for L9456 L9457 and L9496

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Corridor - Latchbolt Retracted From Either Side, Deadbolt Thrown by Key or Thumbturn, Throwing Deadbolt Locks Outside Lever, Turning Inside Lever Retracts Deadbolt and Latchbolt and Unlocks Outside Lever, Inside Lever is Always Free for Immediate Egress,
• ANSI/BHMI Certified A156.13-2012
• Commercial Grade 1
• Lock Body Mortises Inside the Edge of the Door
• UL Listed for 3 Hour Fide Door
• Corridor
• Standard (non-Vandlgard) lock case
