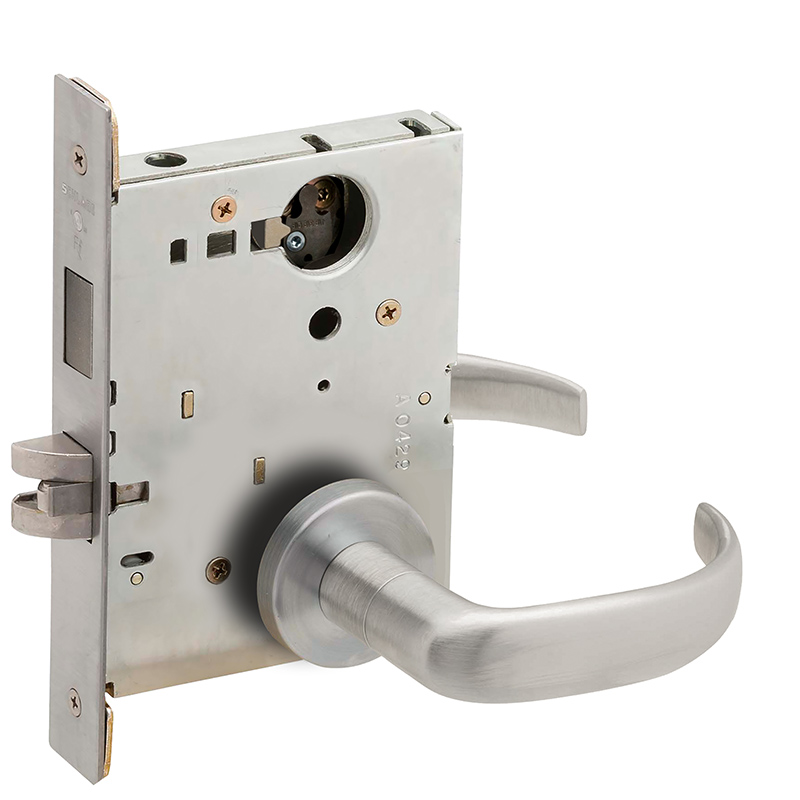

Schlage Commercial L9466L17A626 Store / Utility Room Mortise Lock Less Cylinder with 17 Lever and A Rose Satin Chrome Finish is designed for durability and functionality in utility spaces. This lock features a robust 2-3/4" backset, ensuring a secure fit for a variety of door configurations. The satin chrome finish not only enhances its aesthetic appeal but also offers excellent resistance to wear and tarnishing, making it suitable for high-traffic areas. With dimensions of a 2-1/8" rose, a 4-3/4" lever, and a 3" projection, this mortise lock is both practical and stylish. The reversible handing allows for versatile installation, accommodating different door orientations effortlessly. Designed for store and utility room applications, it provides reliable access control while maintaining a sleek profile. Equipped with an ANSI strike, the Schlage L9466L17A626 meets industry standards for security and performance. This lock is part of the L Series, known for its quality craftsmanship and reliable operation. With the ability to ship via UPS, this product offers convenience and efficiency for your procurement needs. Upgrade your security solutions with this sophisticated and functional mortise lock that combines design and performance seamlessly.
Store / Utility Room Mortise Lock Less Cylinder with 17 Lever and A Rose Satin Chrome Finish
Ansi Function: F14 - Store Door
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Less Cylinder
Design: NULL
Dimension: 2-1/8" Rose with 4-3/4" Lever and 3" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9466-Store Utility Room Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 17 - Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: A - Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
