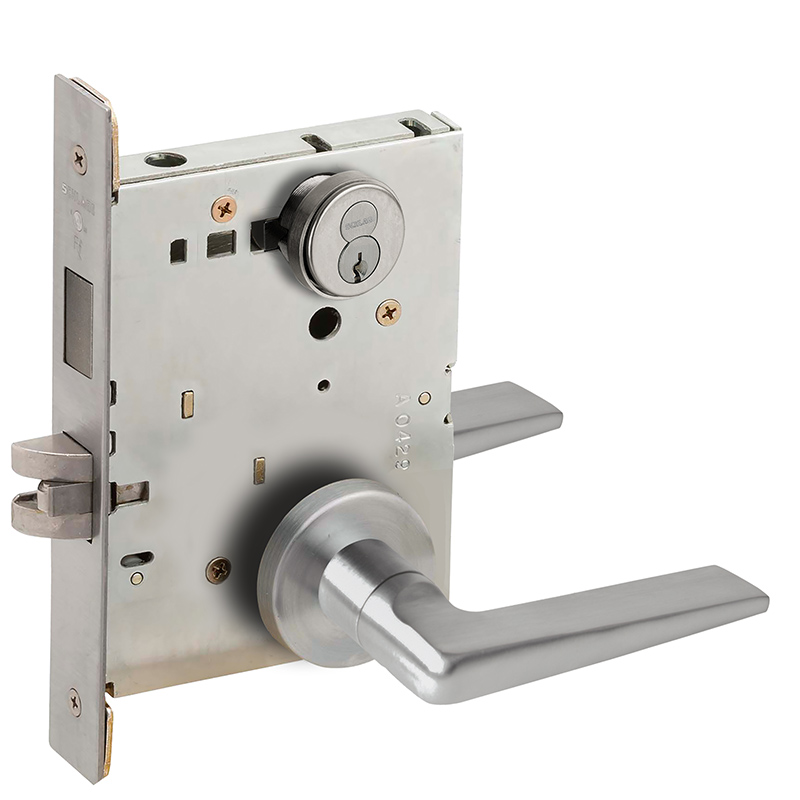

Schlage Commercial L9466R05A626 Store / Utility Room Mortise Lock offers robust security and versatility for a variety of applications. Designed with a large format IC core C keyway, this lock ensures high-level access control, making it an ideal choice for store or utility room environments. The satin chrome finish not only enhances the lock's aesthetic appeal but also provides durability against wear and tear. Featuring a 2-3/4" backset, the L9466R is engineered for easy installation and compatibility with standard door preparations. Its dimensions include a 2-1/8" rose, a 3-3/4" lever, and a 2-13/16" projection, allowing it to fit seamlessly into any commercial setting. The reversible handing makes it adaptable for left or right-hand doors, adding to its functional flexibility. This lock is part of the L Series and includes an ANSI strike, ensuring compliance with industry standards. Whether you're upgrading security in a busy retail environment or enhancing access control in a utility space, the Schlage L9466R05A626 delivers reliability, convenience, and peace of mind. With the added benefit of shipping via UPS, securing your premises has never been easier.
Store / Utility Room Mortise Lock with Large Format IC Core C Keyway with 05 Lever and A Rose Satin Chrome Finish
Ansi Function: F14 - Store Door
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC With Core
Design: NULL
Dimension: 2-1/8" Rose with 3-3/4" Lever and 2-13/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9466-Store Utility Room Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: 1 Bitted
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 05 - Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: A - Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
