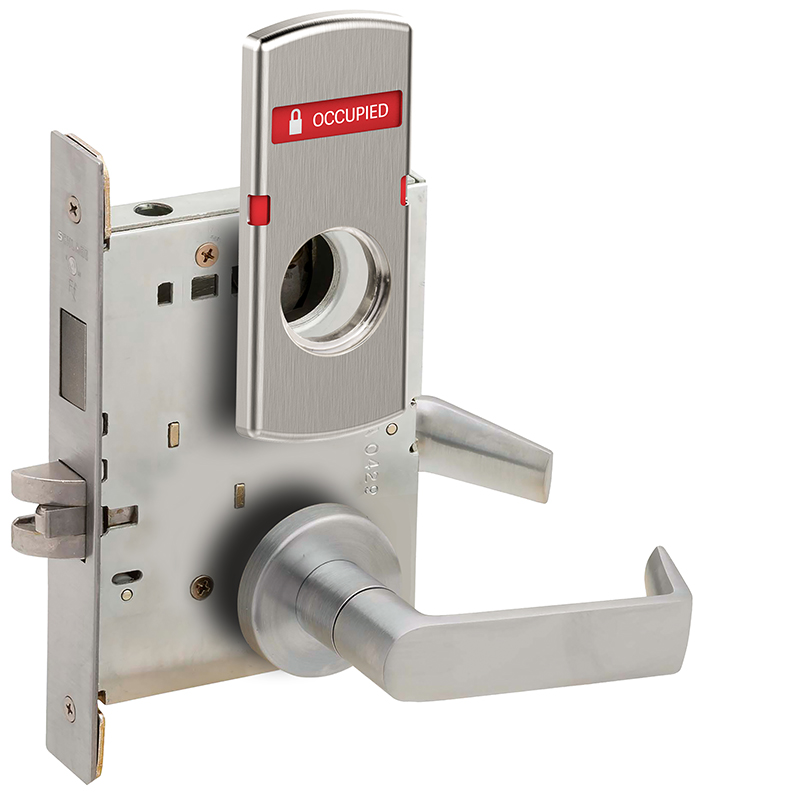

Schlage L9473L 06A 626 OS-OCC Grade 1 Dormitory Deadbolt LockSchlage L9473L 06A 626 OS-OCC Grade 1 Dormitory w/Deadbolt is a robust mortise lock designed specifically for high-traffic environments such as schools, hospitals, and factories. This lock features a satin chrome finish and a VACANT/OCCUPIED indicator, which enhances usability while ensuring security. The heavy-gauge, fully wrapped steel case offers exceptional protection against door edge attacks, making it highly durable for daily use. Meeting ANSI Grade 1 standards, the L9473L lock not only provides superior security but also boasts a two-piece anti-friction tongue that minimizes wear and tear. The built-in security features ensure reliability, including a break-away spindle to prevent unsecured failures and a hub blocking plate that discourages manipulation. Additionally, the spring-loaded fusible link secures fail-safe operation in the event of a fire. Adaptability is a key advantage, with a universal lock case that supports ten functions, allowing for field-reversible handing without the need to open the lock case. The independent lever rotation and locking thumb-turn add convenience, making it easy to use. With a fire rating of 3 hours and a limited warranty of 3 years, the Schlage L9473L is a dependable choice for any commercial application.
Grade 1 Dormitory wDeadbolt
Dormitory Mortise Lock with Deadbolt, Less Full Face Cylinder, 06A Design, VACANT/OCCUPIED Indicator for Outside of Door, Satin Chrome
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting - no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Attributes
Ansi Function: F21 - Entry Office
Bolt Projection: 3/4 In.
Commercial Residential: Commercial
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9473-Dormitory Bedroom Lock
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 06 Lever
Limited Warranty: 3 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Roseescutcheon Design: A Rose
Screws: Combination
Series: L9000 Series Mortise Lock
Std Latch Backset Dim: 2-3/4 In.
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
