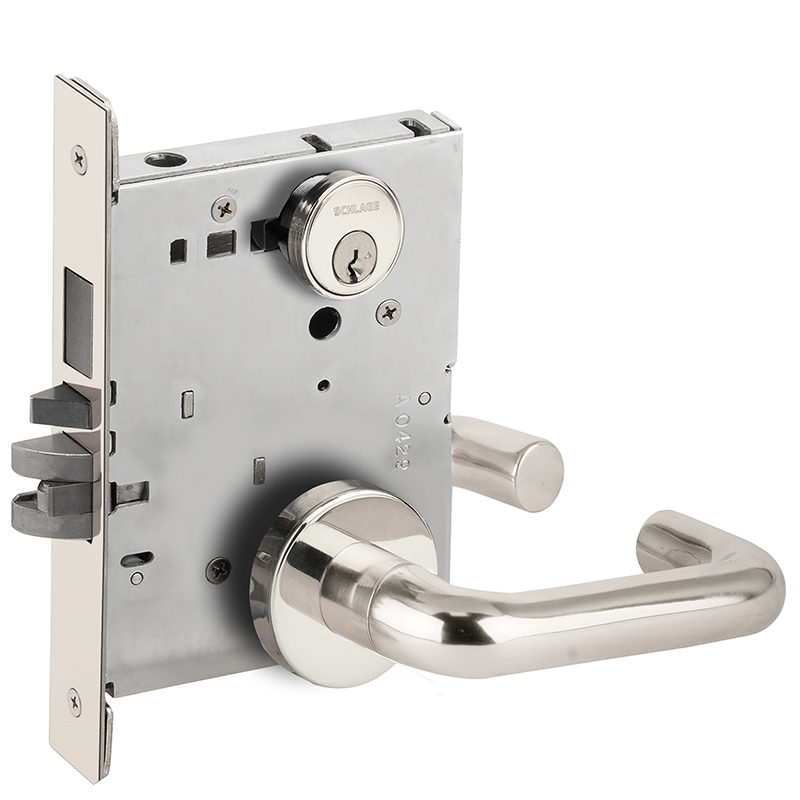

Schlage Commercial L9480P03A625 Storeroom with Deadbolt Mortise Lock offers a robust solution for securing storerooms and restricted areas. This high-quality lock features a storeroom function combined with a deadbolt, ensuring enhanced security for your premises. Designed with a C keyway, the lock is perfect for environments requiring controlled access. The aesthetic appeal of this lock is accentuated by its bright chrome finish, providing a modern look that complements various architectural styles. With a 2-3/4" backset and a design incorporating the 03 lever and A rose, the dimensions include a 2-1/8" rose, a 4-3/4" lever, and a projection of 2-13/16", making it a functional yet stylish addition to your door hardware. This reversible handing feature allows for versatile installation, catering to both left and right-hand doors. The lock is also equipped with an ANSI strike for reliable performance. As part of the L Series, the L9480P03A625 combines durability and design, making it an ideal choice for building professionals and knowledgeable homeowners seeking dependable door security solutions. With the ability to ship via UPS, this product ensures convenient delivery right to your project site.
Storeroom with Deadbolt Mortise Lock C Keyway with 03 Lever and A Rose Bright Chrome Finish
Alt Part No: 256853
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4" Latch, 1" Deadbolt
Category: Lock Sets
Country of Origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 03 Lever and A Rose
Dimension: 2-1/8" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Bright Chrome
Finish Description: Bright Chrome
Fire Rated: 3 Hours {A}
Function: 9480-Storeroom Lock w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Keying: Keyed Different
Keys: Cut
Keyway: S123
Length: 0.0
Lever Knob Design: 03 - Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Num Of Keys: 2
Num Pins: 6
Rose Escutcheon Design: A - Rose
Sales Unit: EA
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
