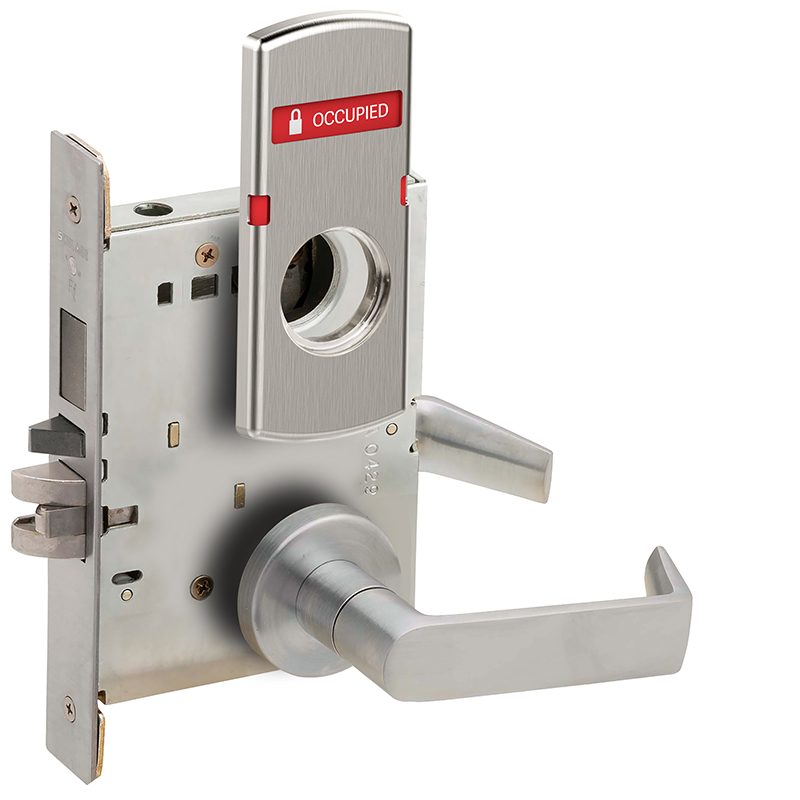

Schlage L9485L 06A 626 OS-OCC Grade 1 Hotel Deadbolt LockSchlage L9485L 06A 626 OS-OCC Grade 1 Hotel with Deadbolt offers an exceptional blend of durability and security, designed specifically for high-traffic environments like schools, hospitals, and factories. This L Series Mortise Lock features a robust all-metal, heavy-gauge steel construction, ensuring it withstands daily use while maintaining reliable operation. Equipped with a VACANT/OCCUPIED indicator for easy monitoring, the lock also features a 06 lever design and an A Rose for an elegant touch. The lock’s functionality is enhanced by a universal case that supports ten different functions, allowing for versatile applications. Field-reversible handing simplifies installation, and the two-piece anti-friction tongue reduces wear, guaranteeing long-lasting performance. For added security, the lock incorporates a break-away spindle to prevent unauthorized access and a spring-loaded fusible link for fail-secure mode in case of fire. The satin chrome finish not only enhances its aesthetic appeal but also provides a layer of protection against wear and tear. Certified to ANSI Grade 1 standards, the Schlage L9485L meets stringent safety requirements, making it a trusted choice for commercial settings. With a three-year limited warranty, this lock combines quality craftsmanship with functional design, ensuring peace of mind for facility managers and building professionals alike.
Grade 1 Hotel w Deadbolt
L Series Mortise Lock, Faculty Restroom Lock, 06 Lever, A Rose, Less Full Face Cylinder, VACANT/OCCUPIED Indicator for Outside of Door, Satin Chrome
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting - no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
- Commercial Grade 1
- UL Listed for 3 Hour Fide Door
- ANSI/BHMI Certified A156.13-2012
- Lock Body Mortises Inside the Edge of the Door
- Faculty Restroom, Latchbolt Retracted By Key or Lever, Deadbolt Thrown by Thumbturn, Deadbolt is Thrown All Keys Are Inoperative Except Emergency Key, Turning Inside Retracts Dead and Latchbolt, Auxiliary Latch Deadlocks Latchbolt, Inside is Always Free
Attributes
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch, 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Cylinder
Design: 06 Lever
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-1/2" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9485-Faculty Restroom Lock
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 06 Lever
Leverknob Design: 06 Lever
Limited Warranty: 3 Years
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Length: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Width: 5.38"
Projection: 2-1/2"
Rose Escutcheon Design: A Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Combination Latch and Bolt
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
