Net 30 terms available

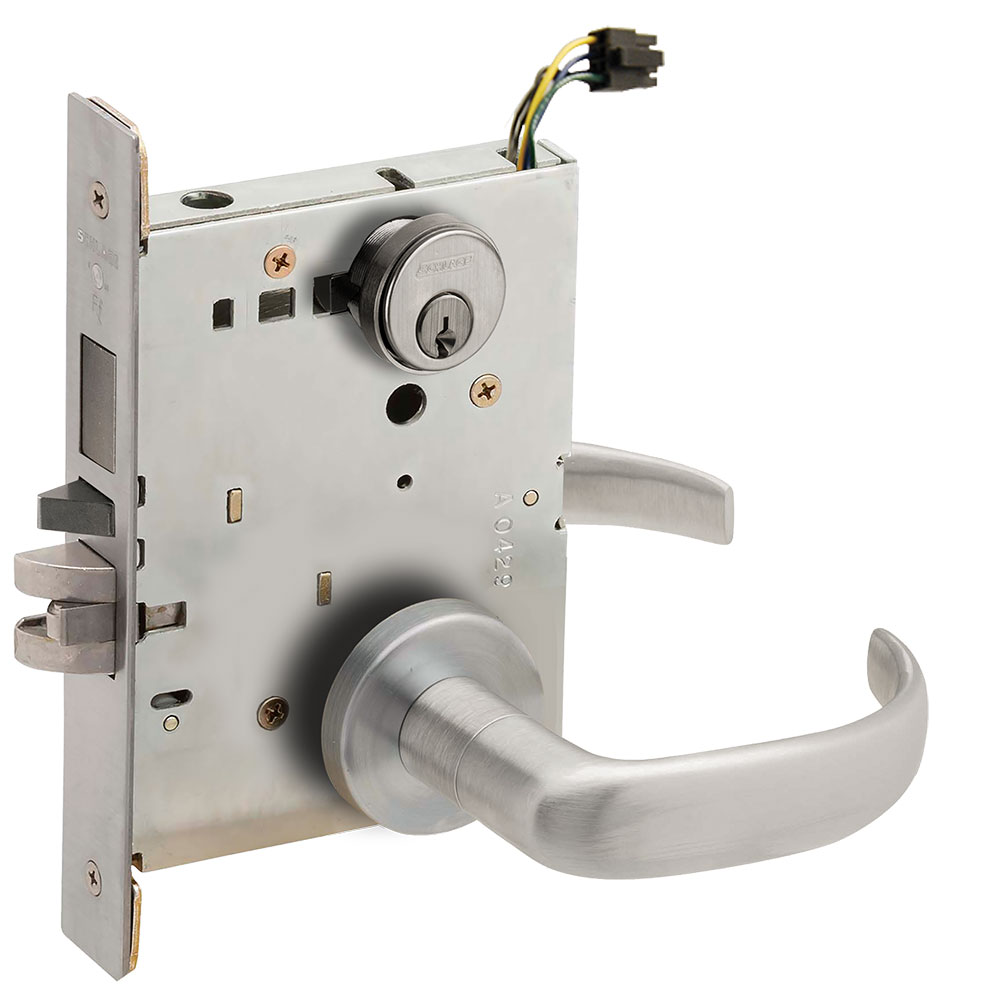

Schlage L9492EUP 17A 626 RX Grade 1 Elec wDB, Fail Sec is the epitome of security and convenience in electrified mortise locks. Designed for commercial use, this Grade 1 Fail Secure Electric Mortise Lock integrates cutting-edge technology to deliver exceptional performance. The lock supports a universal input voltage of 12 or 24VDC and allows for user-selectable fail safe or fail secure functions, easily adjustable in the field. Featuring a robust 17 lever design with an A Rose and a sleek satin chromium-plated finish, this lock not only enhances security but also complements modern architectural aesthetics. Its field-reversible handing and compatibility with standard door thicknesses of 1-3/4" make installation straightforward and versatile. The innovative RX switch monitors the inside lever, offering enhanced detection that balances security and sensitivity. The Schlage L9492EUP is ADA compliant, ensuring accessibility for all users, and is backed by a one-year limited warranty. With a 3/4" bolt projection and a fire rating of 3 hours, this lock is built to withstand demanding conditions. Whether securing office spaces or commercial facilities, the Schlage L9492EUP is a reliable choice for those who prioritize safety without compromising on style.
Grade 1 Elec wDB, Fail Sec
Grade 1 Fail Secure Electric Mortise Lock, Conventional Cylinder, 17 Lever, A Rose, Request to Exit, Satin Chromium Plated Finish, Field Reversible
The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 400mA
Base Material: Brass or Bronze
Bolt Projection: 3/4"
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9492EU-Fail Secure
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Included
Leverknob Design: 17 Lever
Limited Warranty: 1 Year
Lock Face Size: 8" x 1-1/4"
Of Keys: 2
Operating Voltage: 12VDC/24VDC
Pack Qty: 1
Pins: 6
Power: Hard Wired
Roseescutcheon Design: A Rose
Screws: Combination
Series: L9090 Series Electrified Mortise Lock
Std Keyway: C
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Electric Mortise Lock
Switch Type: Request to Exit
Type: Electric Locks
Unit of Measure: Each
