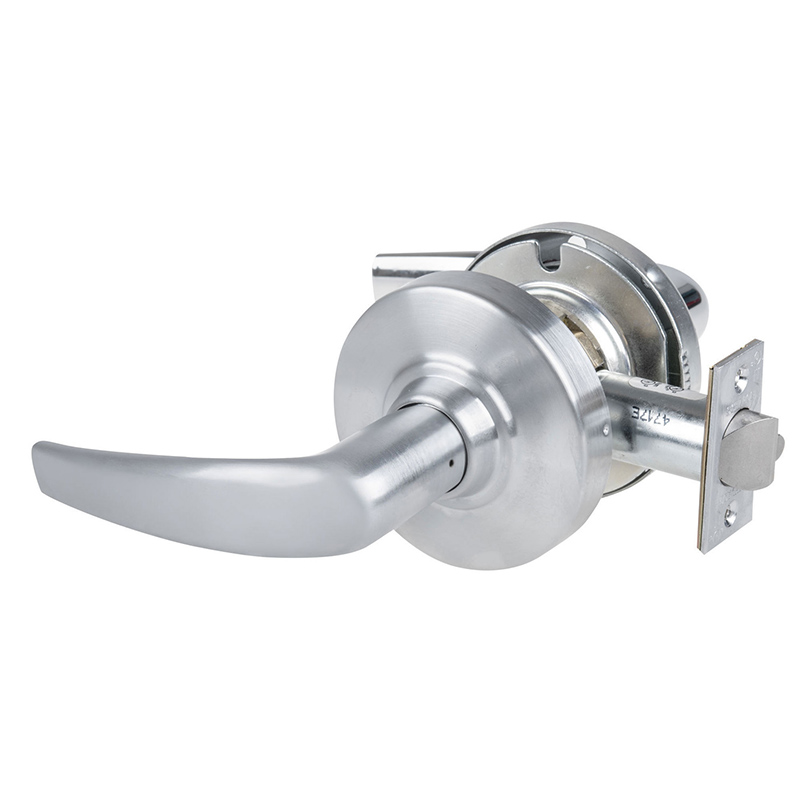

Schlage ND10S ATH 626 14-010 Grade 1 Passage Latch combines durability with elegant design, featuring the Athens lever in a sleek satin chrome finish. This non-keyed, Grade 1 passage latch is engineered for high-traffic areas, ensuring exceptional performance and longevity. With a 3-3/4" backset and non-handed installation, it easily fits doors with thicknesses ranging from 1-5/8" to 2-1/8", making it versatile for various applications. The ND Series is renowned for its robust construction, having exceeded 3 million operating cycles without failure, providing peace of mind in commercial environments such as healthcare, education, and retail. The latch bolt features a 1/2" throw with deadlocking capabilities, enhancing security while the pressure cast zinc levers ensure a comfortable grip. Designed with accessibility in mind, the ND10S meets ADA compliance standards, making it an ideal choice for inclusive environments. Additionally, it comes with a ten-year limited warranty, underscoring Schlage's commitment to quality. Whether for new installations or replacements, the Schlage ND10S ATH passage latch delivers reliability and style, making it a trusted choice for professionals and homeowners alike.
Grade 1 Passage Latch, Athens Lever, Non-Keyed, 3-3/4" Backset, Satin Chrome Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F75 - Passage
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 10-Passage Latch
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Passage Latch
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: 217718657
Product Height: 3.44"
Product Length: 6.28"
Product Width: 3.31"
Projection: 3-5/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 3-3/4 In.
Std Latch Number: 14-010
Std Latch Type: Springlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
