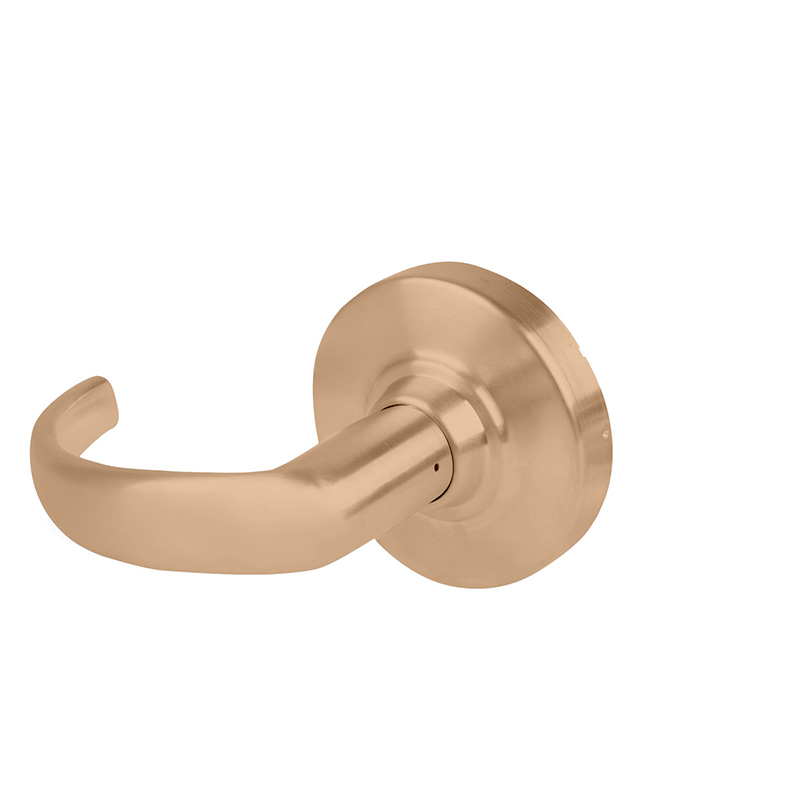

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Manufacturer surcharge: 3.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Sparta
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 612/US10
Finish Description: Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 170-Single Dummy
Function Family: Dummy
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: SPA - Sparta
Lever Knob Design Name: Sparta
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Product Height: 3.44"
Product Length: 6.66"
Product Width: 3.5"
Projection: 3-1/2 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
