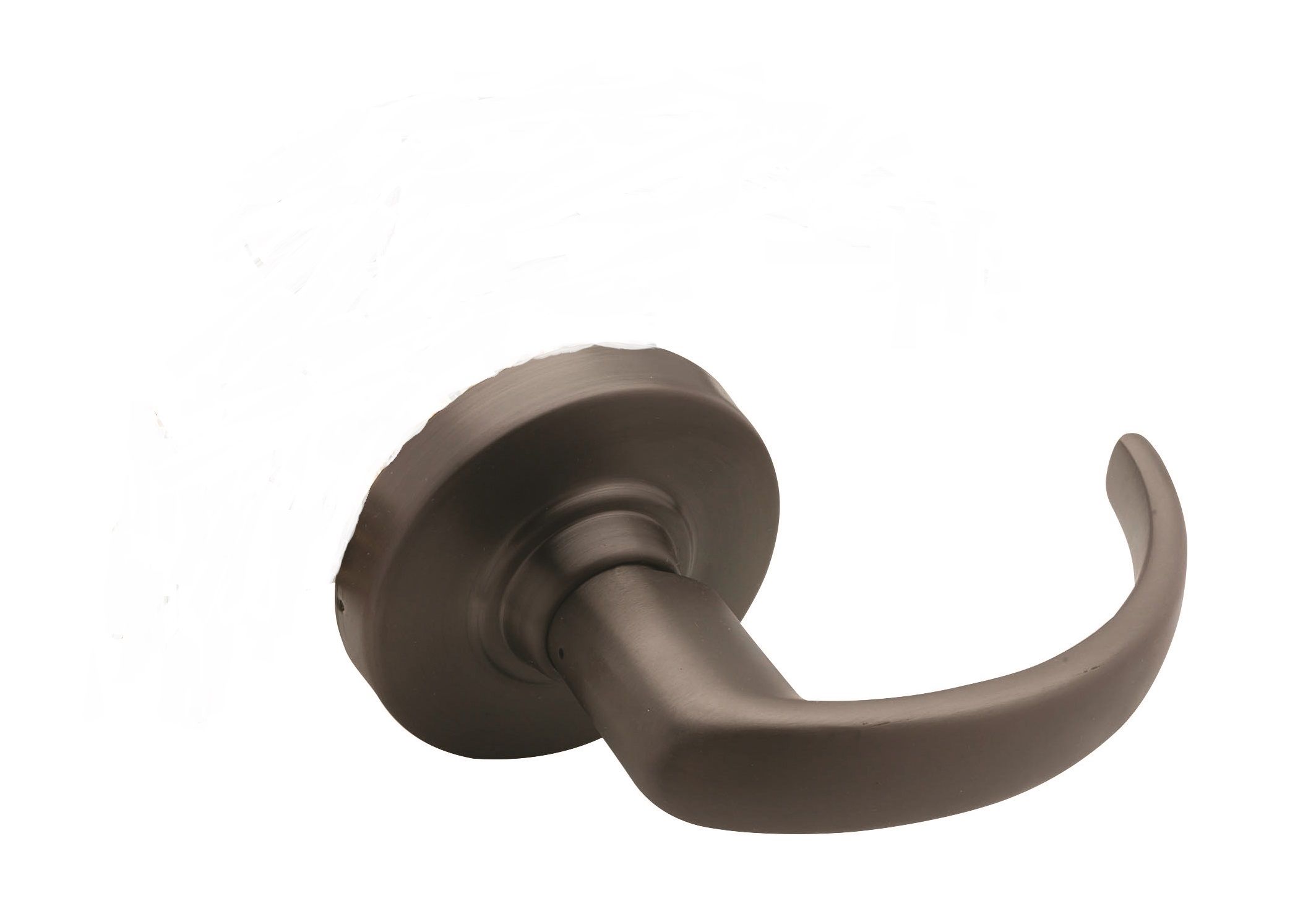

Schlage Commercial ND170SPA613 ND Series Single Dummy Sparta features an elegant oil rubbed bronze finish that complements a variety of architectural styles. Designed to serve as a dummy trim, this product is ideal for use on one side of a door, functioning as either a door pull or a matching inactive trim. With a robust construction, it meets the ANSI/BHMA Certified A156.2-2011 standards and is classified as Commercial Grade 1, ensuring superior durability and reliability. This single dummy trim accommodates door thicknesses ranging from 1-5/8" to 2-1/8", making it versatile for different applications. The 3-7/16" rose, paired with a 4-15/16" lever and a 3-1/2" projection, offers a modern aesthetic while providing ease of use. Its reversible handing allows for flexible installation options. Additionally, the ND170SPA613 is UL Listed for 3-hour fire doors, enhancing safety in commercial settings, while the zinc base material ensures longevity. With a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, you can trust in Schlage’s commitment to quality and performance. Elevate your door hardware with this stylish and functional addition from Schlage.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Sparta
Dimension: 3-7/16" Rose with 4-15/16" Lever and 3-1/2" Projection
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 170-Single Dummy
Function Family: Dummy
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: SPA - Sparta
Lever Knob Design Name: Sparta
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Product Height: 3.44"
Product Length: 6.66"
Product Width: 3.5"
Projection: 3-1/2 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series
Ship Weight: 5 lbs.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
