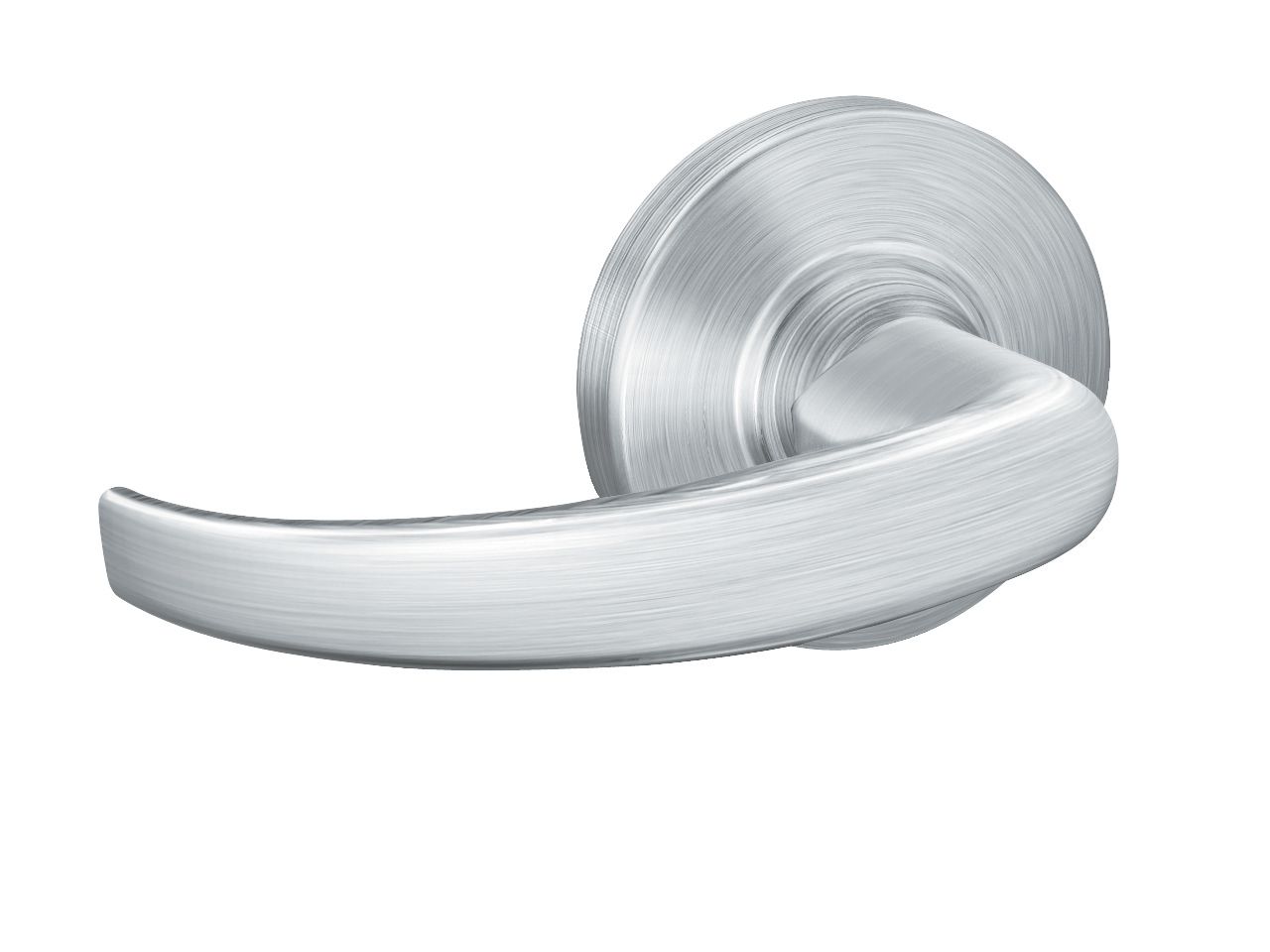

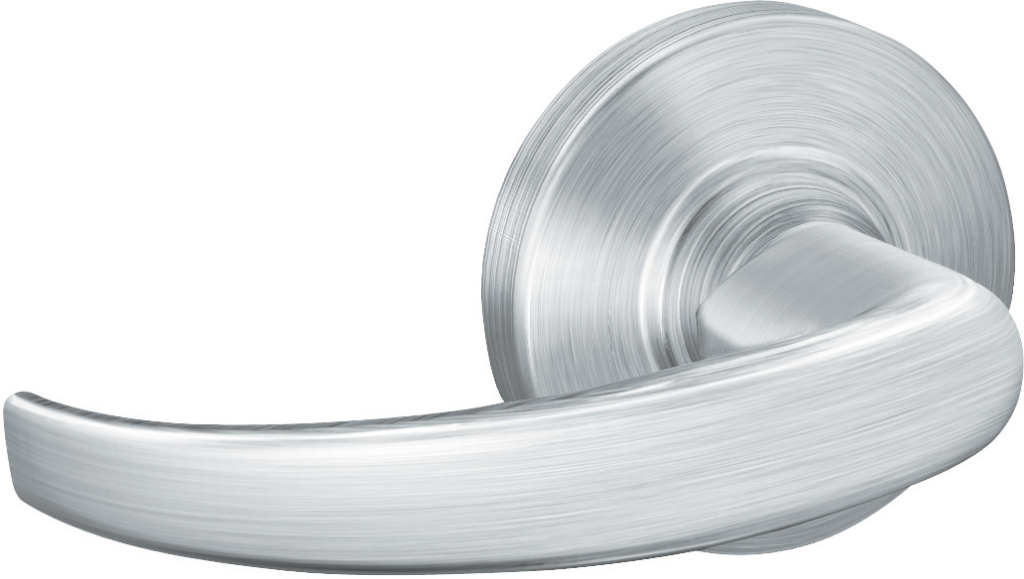

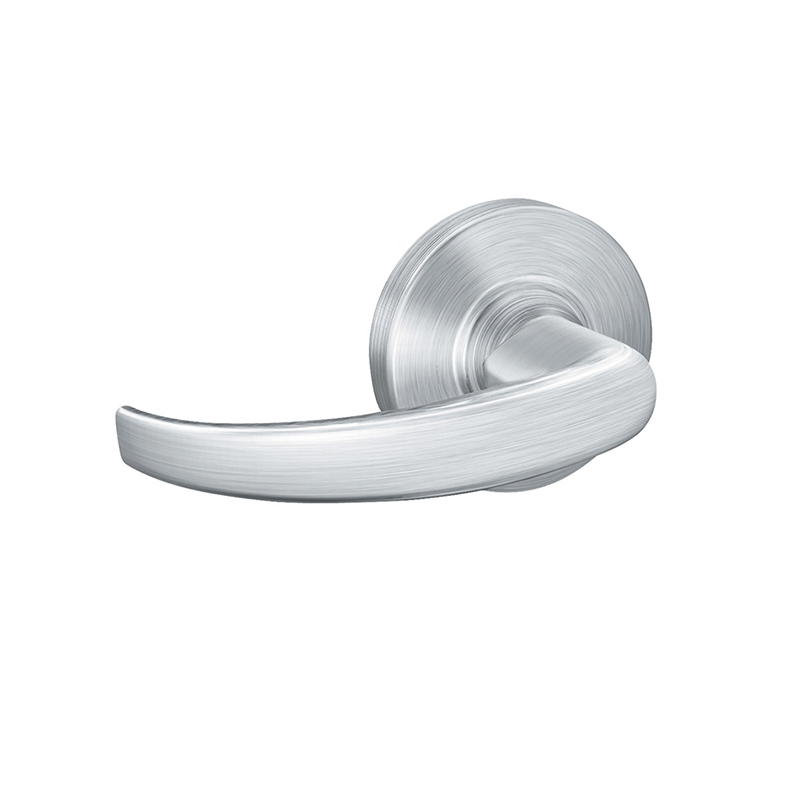

Schlage Commercial ND170SPA626 ND Series Single Dummy Sparta Satin Chrome Finish offers an exceptional blend of style and functionality, making it an ideal choice for both commercial and institutional settings. This single dummy trim is designed for one side of the door, serving as a pull or matching inactive trim, which enhances the overall aesthetic while ensuring ease of use. Crafted with durability in mind, this product is ANSI/BHMA Certified to A156.2-2011 and falls under Commercial Grade 1, ensuring top-tier performance in demanding environments. It accommodates door ranges from 1-5/8" to 2-1/8" and is UL Listed for a 3-hour fire door, providing an extra layer of safety and reliability. The Sparta design features a 3-7/16" rose, a 4-15/16" lever, and a 3-1/2" projection, all finished in a sleek satin chrome that complements various architectural styles. Its reversible handing allows for versatile installation options, while the robust zinc base construction ensures longevity. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage ND170SPA626 is a dependable choice for anyone seeking quality door hardware that combines security and elegance.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND170SPA626, ND170SPA626-ISO, ND170SPA626ISO
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Sparta
Dimension: 3-7/16" Rose with 4-15/16" Lever and 3-1/2" Projection
Door Application: Cylindrical Levers
Door Thickness: 1-5/8" to 2-1/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 180 min
Function: 170-Single Dummy
Function Family: Dummy
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Design: Sparta
Lever Knob: Lever
Lever Knob Design: SPA - Sparta
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: Sparta
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Manufacturer Function: Single Dummy Trim
Manufacturer Function Description: Dummy trim for one side of door. Used for door pull or as matching inactive trim.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
Maximum Door Thickness: 2-1/8"
Minimum Door Thickness: 1-5/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Product Height: 3.44"
Product Length: 6.66"
Product Width: 3.5"
Projection: 3-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series
Ship Weight: 5 lbs.
Structure Function: 170
Structure Outside Finish: 626
Structure Outside Trim: SPA
Structure Series: ND
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: LOCK SETS
Ul Listing: UL/cUL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
