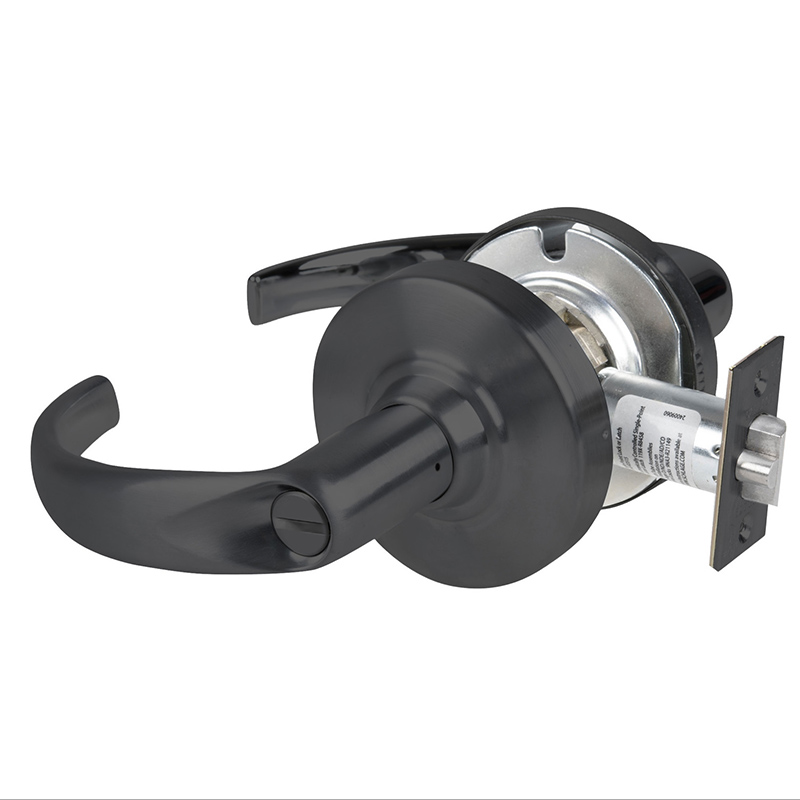

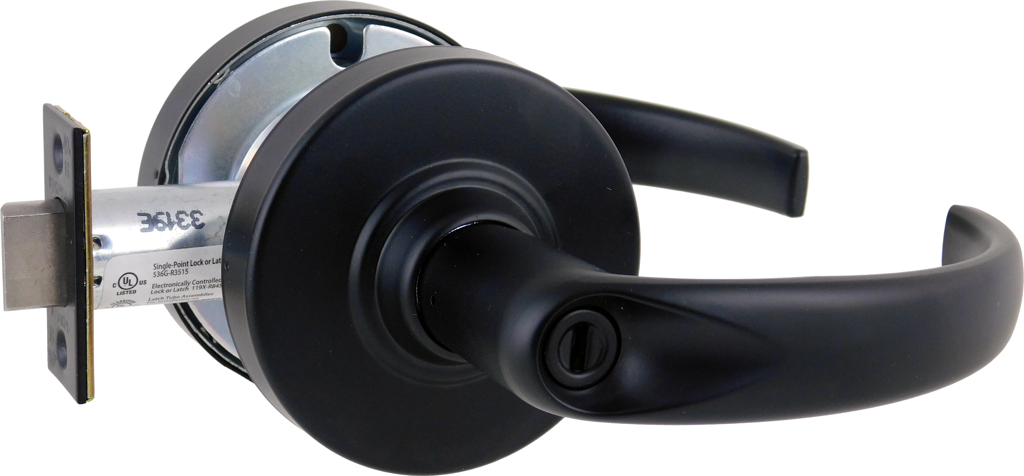

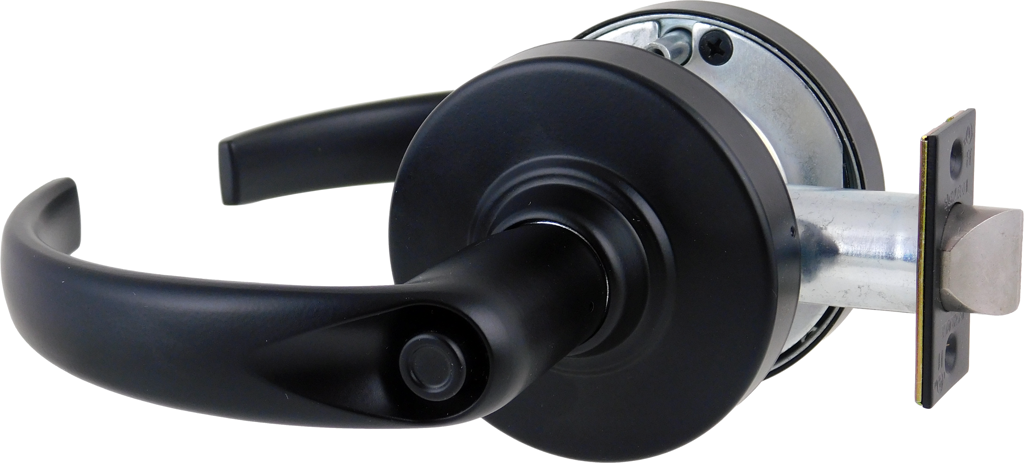

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 2.0%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND40SSPA622
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F76 - Privacy
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Application: Cylindrical Levers
Door Thickness: 1-5/8 In. - 2-1/8 In.
Finish: 622/US19
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 180 min
Function: 40-Bed Bathroom Privacy Lock
Function Family: Privacy
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Number: 13-248
Latch Type: Spring Latch (Unguarded)
Lever Design: Sparta
Lever Knob: Lever
Lever Knob Design: SPA - Sparta
Lever Knob Design Name: Sparta
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Bath/Bedroom Privacy Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Product Height: 3.44"
Product Length: 6.66"
Product Width: 3.5"
Projection: 3-1/2 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-248
Std Latch Type: Springlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: LOCK SETS
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
