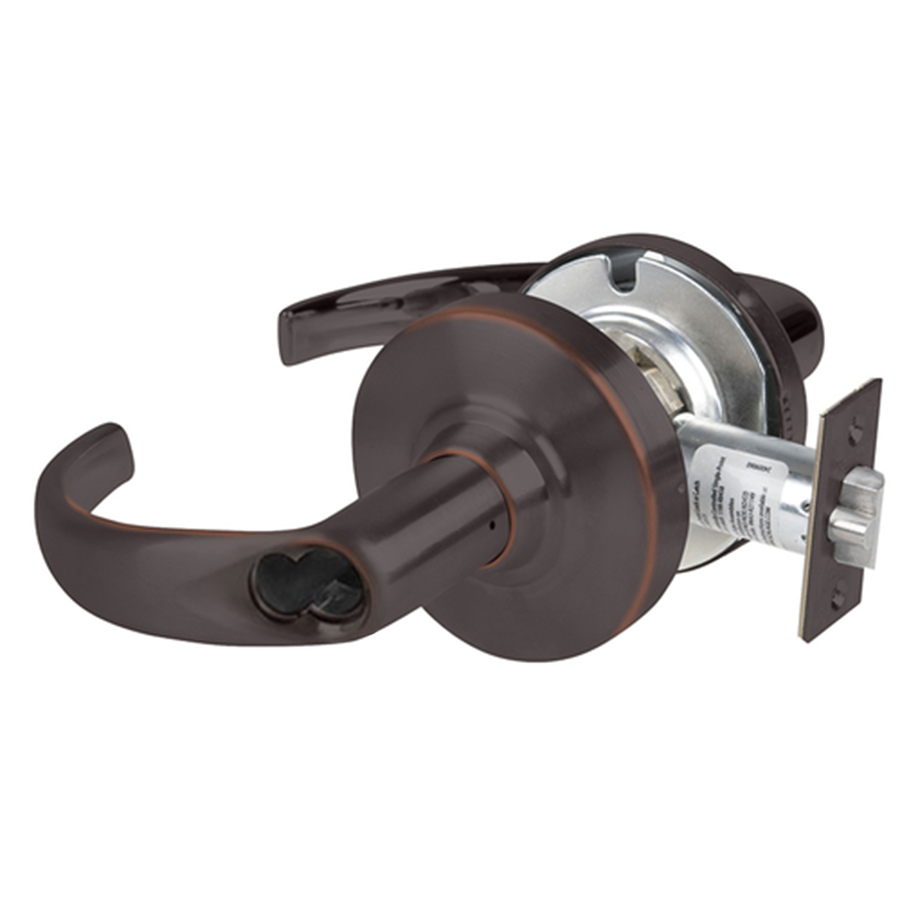

Images may not represent actual product and finish

Schlage ND50BDSPA643E ND Series Entry / Office Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Aged Bronze Finish

Your Price: $610.56

Retail Price:$954.000

Your Savings:$343.44(36%)

Grade 1 Pushbutton Office Cylindrical Lock, Sparta Lever, SFIC Less Core, Aged Bronze Finish, Non-handed

Part Number : SCH_ND50BDSPA643E

Availability: 9 In Stock

Quantity

Description

Schlage ND50BDSPA643E ND Series Entry / Office Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Aged Bronze Finish

Schlage Commercial ND50BDSPA643E ND Series Entry / Office Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Aged Bronze Finish

Entry/Office, Push-Button Locking, Push-Button Locks Outside Lever Until Unlocked With Key or By Turning Inside Lever, Inside Lever is Always Free for Immediate Egress
ANSI/BHMA Certified A156.2-2011
1-5/8" to 2-1/8" Door Range
Commercial Grade 1
UL Listed for 3 Hour Fire Door
No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Cast steel spindle construction exceeding 16 million cycles
Withstood aggressive Schlage development testing including lever-snap and abusive cycling
31 mechanical functions
6 wired functions with:
Autodetecting 12-24V DC input
Switch-selectable EL/EU operation
Modular request to exit (RX)
0.230A max/0.010A holding current
Available in 10 finishes, 5 lever designs, and 2 rose designs
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Alternate Codes: ND50BD SPA643E

Baa Qualified: Yes

Backset: 2-3/4" Backset

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Cylinder Type: Less Core, SFIC

Design: Sparta

Door Application: Cylindrical Levers

Finish: Aged Bronze

Finish Code: 643E

Finish Color: Aged Bronze, Venetian Bronze

Finish Description: Aged Bronze

Fire Rated: Yes

Fire Rating: 180 min

Function: Entry, Office

Grade: Grade 1

Lever Design: Sparta

Limited Warranty: 10 Year Warranty

Series: ND

Strike: ASA Strike

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Schlage ND50BDSPA643E ND Series Entry / Office Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Aged Bronze Finish
