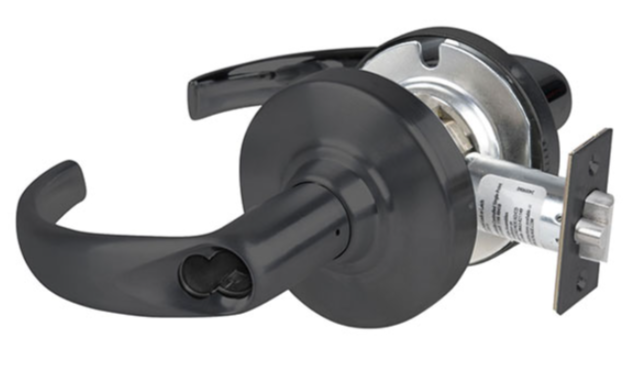

Schlage ND53BDSPA622 ND Series Entry Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Matte Black Finish

Images may not represent actual product and finish

Schlage ND53BDSPA622 ND Series Entry Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Matte Black Finish

Your Price: $540.60

Retail Price:$864.96

Your Savings:$324.36(38%)

Grade 1 Turn-Pushbutton Entrance Cylindrical Lock, Sparta Lever, SFIC Less Core, Matte Black Finish, Non-handed

Part Number

: SCH_ND53BDSPA622

Availability: 5 In stock

Quantity

Description

Schlage ND53BDSPA622 ND Series Entry Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Matte Black Finish

Schlage Commercial ND53BDSPA622 ND Series Entry Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Matte Black Finish

Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
ANSI/BHMA Certified A156.2-2011
1-5/8" to 2-1/8" Door Range
Commercial Grade 1
UL Listed for 3 Hour Fire Door
No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Cast steel spindle construction exceeding 16 million cycles
Withstood aggressive Schlage development testing including lever-snap and abusive cycling
31 mechanical functions
6 wired functions with:
Autodetecting 12-24V DC input
Switch-selectable EL/EU operation
Modular request to exit (RX)
0.230A max/0.010A holding current
Available in 10 finishes, 5 lever designs, and 2 rose designs
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Ship via: Can Ship UPS

Alternate Codes: ND53BDSPA622

Baa Qualified: Yes

Backset: 2-3/4" Backset

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Cylinder Type: Less Core, SFIC

Design: Sparta

Door Application: Cylindrical Levers

Finish: Matte Black

Finish Code: 622

Finish Color: Black, Flat Black, Flat Black Coated, Matte Black

Finish Description: Matte Black

Fire Rated: Yes

Fire Rating: 180 min

Function: Entry

Grade: Grade 1

Lever Design: Sparta

Limited Warranty: 10 Year Warranty

Series: ND

Strike: ASA Strike

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Schlage ALX53-P-RHO-643E E 234 Grade 2 Rhodes Lever, Key in Lever, E Keyway, 2-3/4" Backset, Aged Bronze

$263.92

1 In stock

Buy

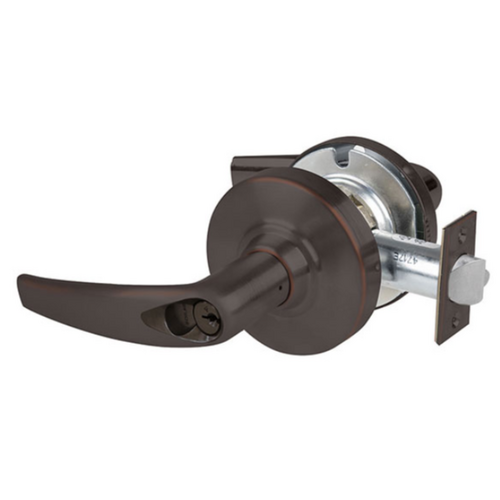

Schlage ALX53-R-ATH-643E C123 234 Athens Lever, Grade 2, FSIC Prep, Schlage IC Core, 2-3/4in Backset, Aged Bronze

$293.25

3 In stock

Buy

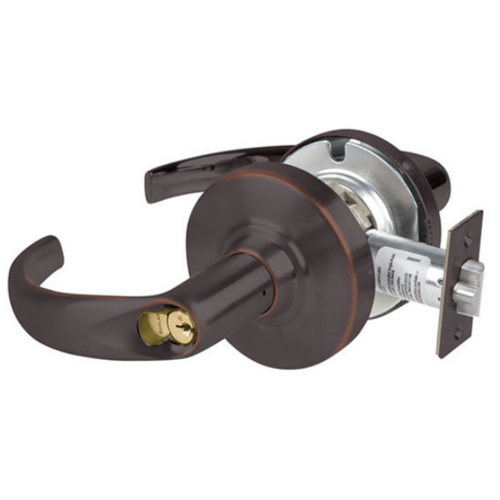

Schlage ALX53-R-SPA-643E C123 234 Sparta Lever Grade 2 Entry, FSIC Prep, Schlage IC Core, Aged Bronze 643E/US11
