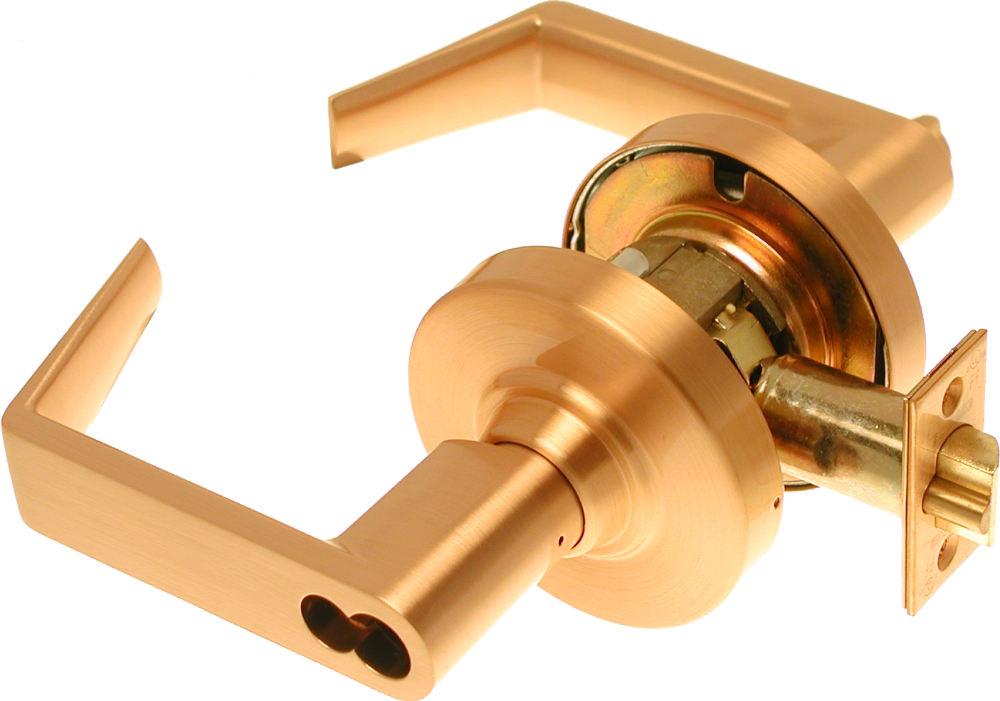

Turn/push-button locking; pushing and turning button locks outside lever, required use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 133404, D53JDRHO612, ND53JDRHO612
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Baa Qualified: Yes
Backset: 2-3/4"
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Cylinder Type: FSIC Cylinder
Cylinders Present: Single Cylinder
Design: Rhodes
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Thickness: 1-5/8" - 2-1/8"
Door Thickness Max: 2-1/8"
Door Thickness Min: 1-5/8"
Finish: 10, 612, US10
Finish Code: 612
Finish Color: Satin Bronze
Finish Description: Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 180 min
Function: 53-Entrance Lock
Function Family: Entrance
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Knob/ Lever Design: Rhodes
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1 In.
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Design: Rhodes
Lever Knob: Lever
Lever Knob Design: RHO - Rhodes
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance Lock
Manufacturer Function Description: Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Num Pins: 6
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4540298,4541421
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 2.94"
Projection: 2-15/16 In.
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16"
Rose/ Escutcheon Size: 3-7/16"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8"
Strike Number: 10-025
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: J
Structure Function: 53
Structure Latch: D
Structure Latch Number: 13-247
Structure Outside Finish: 612
Structure Outside Trim: RHO
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Supplier: Schlage
Type: LOCK SETS
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
