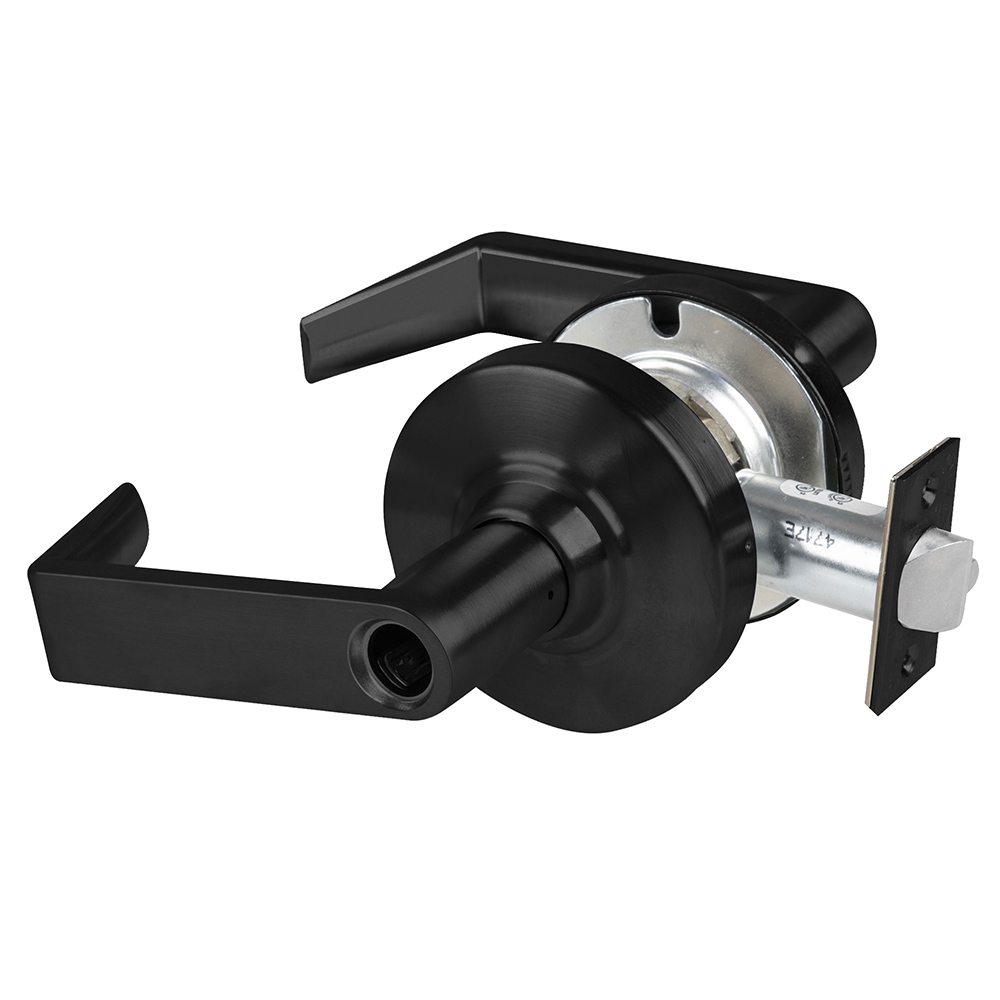

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 2.0%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND53LDRHO622
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Rhodes
Door Application: Cylindrical Levers
Door Thickness: 1-5/8 In. - 2-1/8 In.
Finish: 622/US19
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 180 min
Function: 53-Entrance Lock
Function Family: Entrance
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Design: Rhodes
Lever Knob: Lever
Lever Knob Design: RHO - Rhodes
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance Lock
Manufacturer Function Description: Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Num Pins: 6
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4541275,4541421
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 2.94"
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: L
Structure Function: 53
Structure Latch: D
Structure Latch Number: 13-247
Structure Outside Finish: 622
Structure Outside Trim: RHO
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Type: LOCK SETS
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
