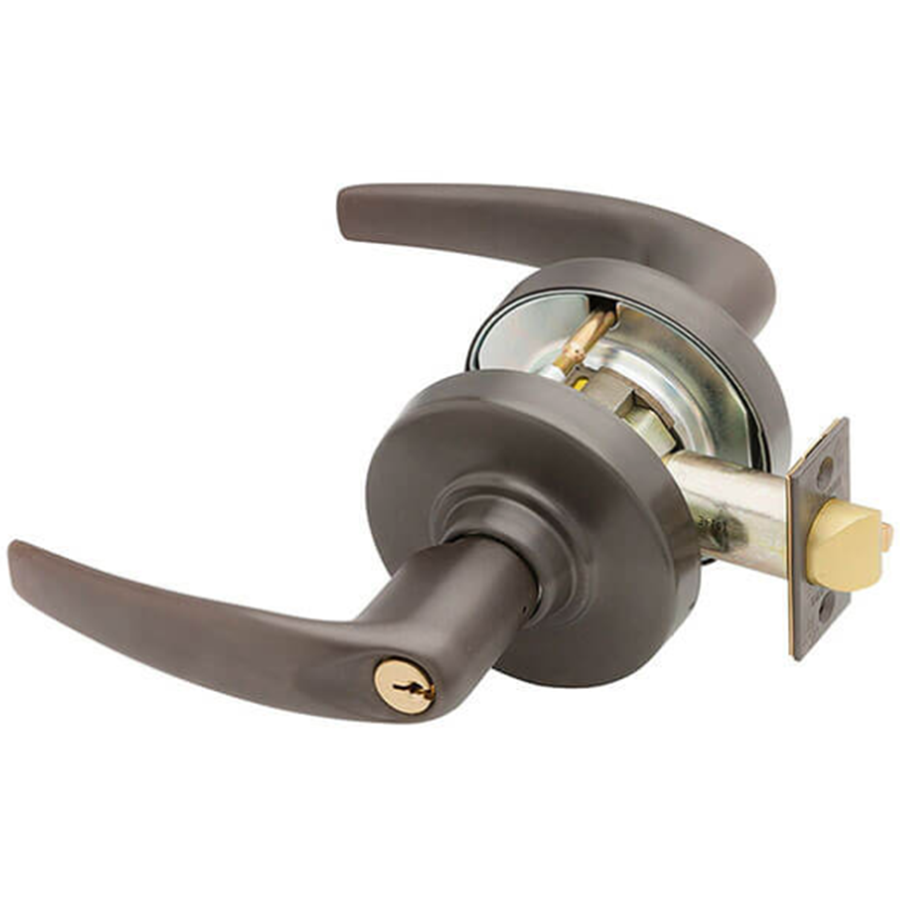

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 2.0%
Alternate Codes: ND53-PD-ATH-613 C123, ND53PDATH613 C123, ND53PDATH613C123, SCHND53PDATH613 C123
Ansi Function: F109 - Entry/Office
Bolt Projection: 1/2 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Cylinder Type: 6-Pin, Conventional - Schlage
Door Application: Cylindrical Levers
Door Thickness: 1-5/8 In. - 2-1/8 In.
Finish: 613/US10B
Finish Code: 613
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: Yes
Fire Rating: 180 min
Function: Entry
Grade: Grade 1
Handing: Not Handed
Keying: 0-Bitted
Keys: Cut
Keyway: Schlage C123
Lever Design: Athens
Leverknob Design: ATH - Athens Lever
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Of Keys: 2
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pins: 6
Roseescutcheon Design: 3-7/16" Diameter Rose
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Keyway: C123
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
