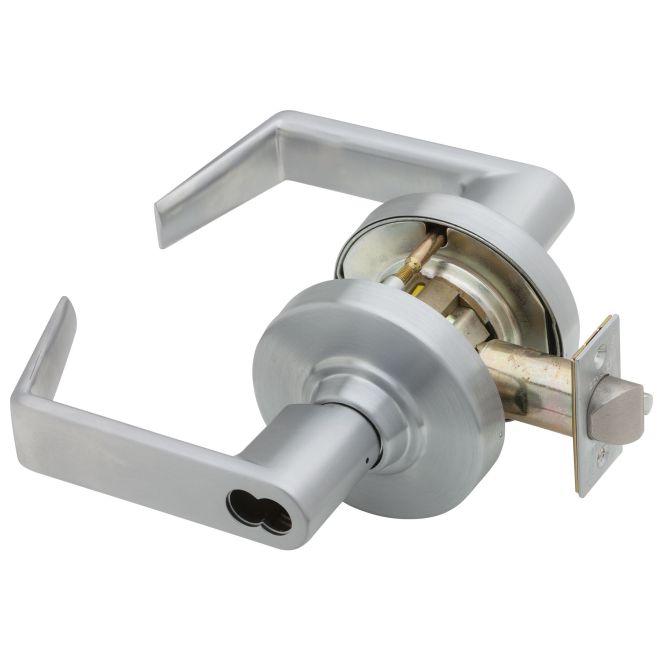

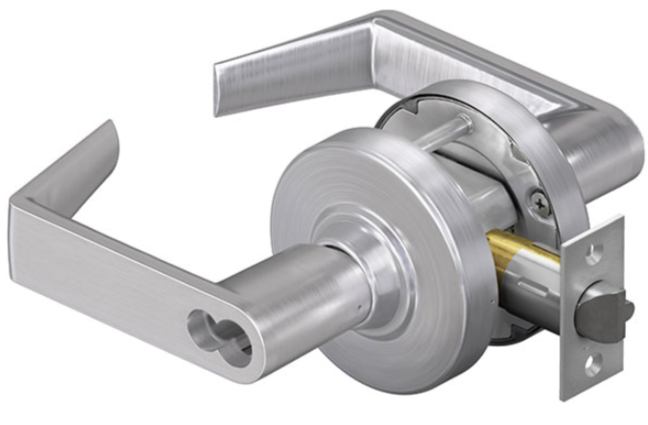

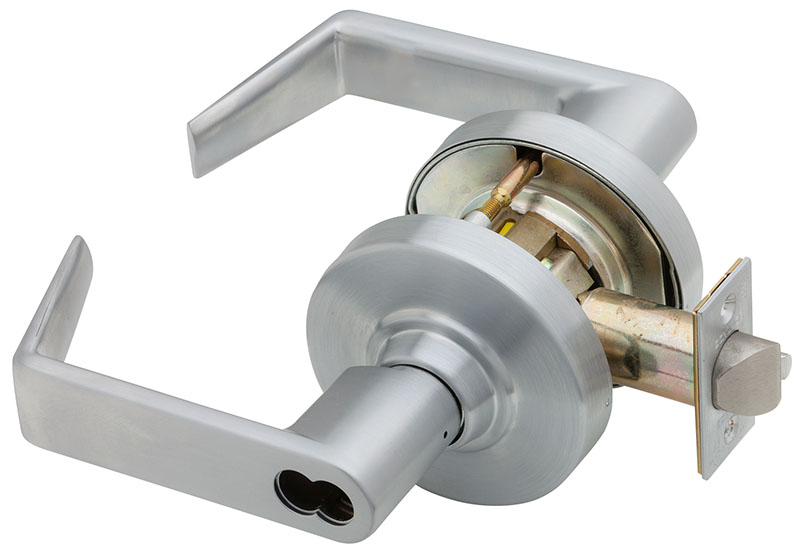

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Ship via: Can Ship UPS
Alternate Codes: ND73BDRHO626, SCHND73BDRHO626
Ansi Function: F90 - Dormitory
Ansi Function Description: Dormitory
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Mexico
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: Rhodes
Door Application: Cylindrical Levers
Door Thickness: 1-5/8" - 2-1/8"
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: 73-Corridor Lock
Function Family: Corridor
Grade: Grade 1
Hand: Not Handed
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Design: Rhodes
Lever Knob: Lever
Lever Knob Design: RHO - Rhodes
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Rhodes
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Corridor Lock
Manufacturer Function Description: Locked or unlocked by key from outside. Push-button locking from inside. Turning inside lever or closing door releases button. When outside lever is locked by key it can only be unlocked by key. Inside lever always unlocked for immediate egress.
Maximum Door Thickness: 2-1/8"
Minimum Door Thickness: 1-5/8"
Num Pins: 6/7
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ND
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: B
Structure Function: 73
Structure Latch: D
Structure Latch Number: 13-247
Structure Outside Finish: 626
Structure Outside Trim: RHO
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
