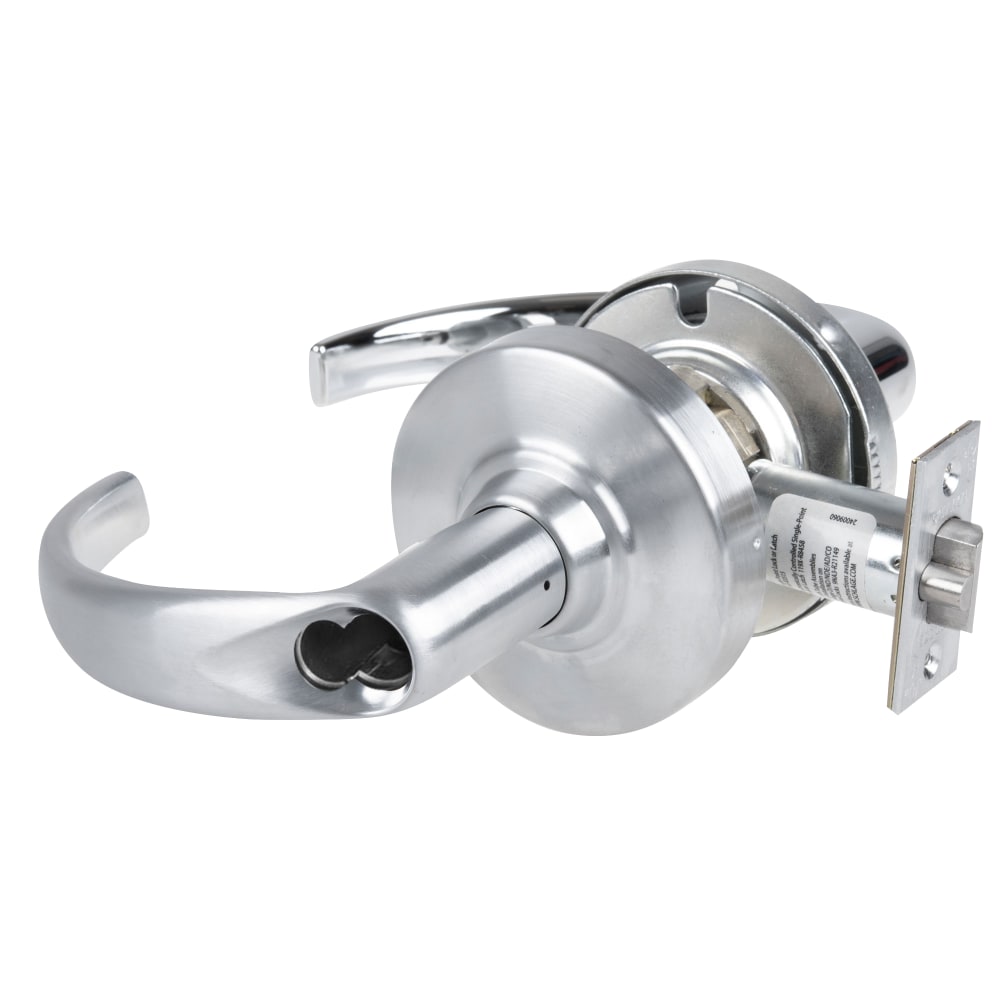

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Attributes
Ship via: Can Ship UPS
Alternate Codes: ND78-BD-SPA-626
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F110
Bolt Projection: 1/2"
Cam Number: N123-076
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-5/8" to 2-1/8"
Finish: 626/US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 78-Classroom Security (180-degree lockdown)
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Leverknob Design: SPA - Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4" x 1-1/8"
Origin: Mexico
Pack Qty: 1
Projection: 3-1/2"
Roseescutcheon Design: Rose
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
