Schlage ND78CD ATH 626 Cylindrical Lock

Images may not represent actual product and finish

Schlage ND78CD ATH 626 Cylindrical Lock

Your Price: $559.72

Retail Price:$895.56

Your Savings:$335.84(38%)

Grade 1 Classroom Security (180-Degree Lockdown) Cylindrical Lock, Athens Lever, Less Cylinder, Satin Chrome Finish, Non-Handed

Part Number

: SCH_ND78CDATH626

Availability: 27 In stock

Quantity

Description

Schlage ND78CD ATH 626 Cylindrical Lock

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.

No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Cast steel spindle construction exceeding 16 million cycles
Withstood aggressive Schlage development testing including lever-snap and abusive cycling
31 mechanical functions
6 wired functions with:
Autodetecting 12-24V DC input
Switch-selectable EL/EU operation
Modular request to exit (RX)
0.230A max/0.010A holding current
Available in 10 finishes, 5 lever designs, and 2 rose designs
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Ship via: Can Ship UPS

Alternate Codes: ND78-CD-ATH-626, ND78-LD-ATH-626, ND78LDATH626

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Finish: 626/US26D

Finish Description: Satin Chrome

Fire Rated: 3 Hours {A}

Grade: Grade 1

Limited Warranty: 10 Years

Series: ND Series Lever Locks

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

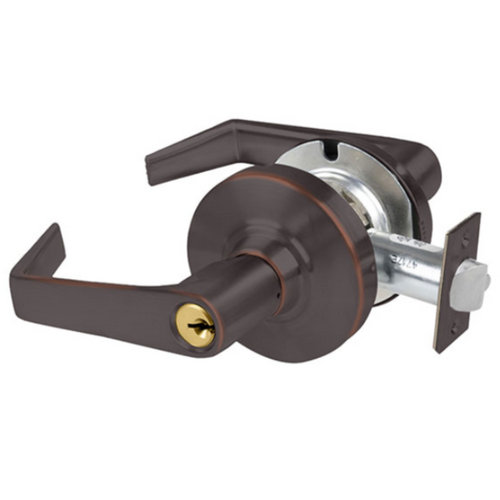

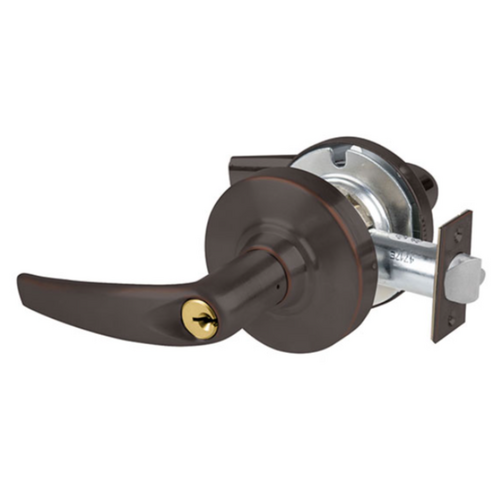

Schlage ALX53-P-ATH-643E S123 238 Grade 2 Athens Lever, Key in Lever, S123 Keyway, 2-3/8in Backset, Aged Bronze
