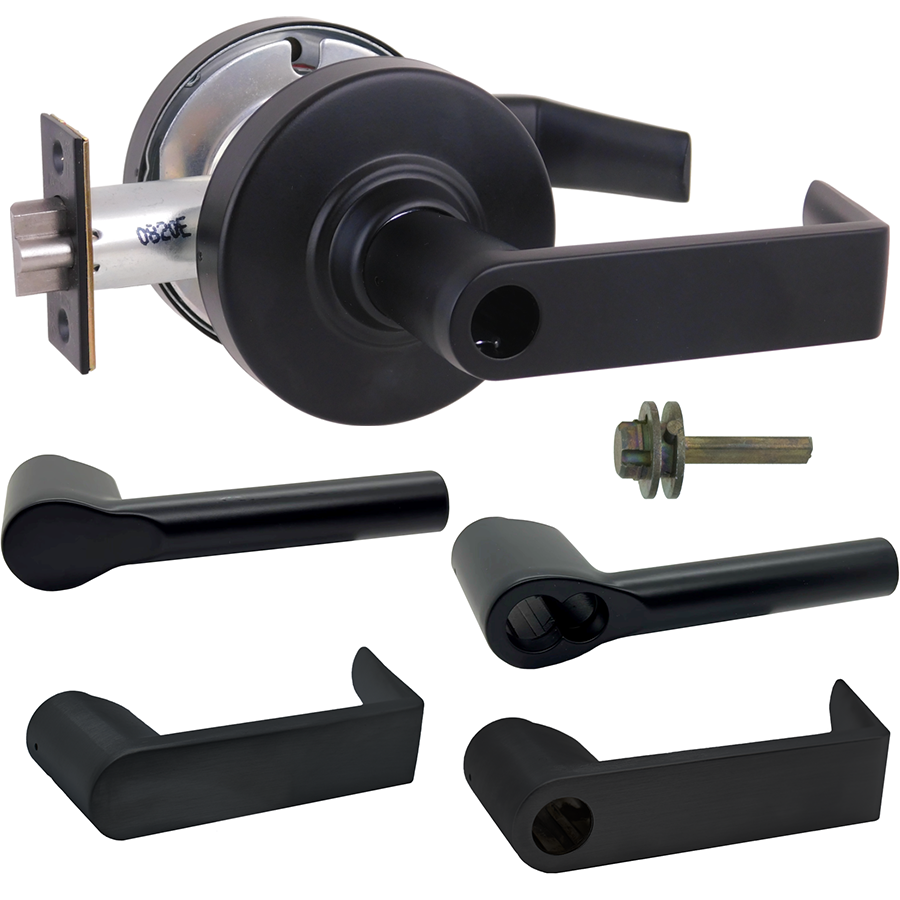

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
Attributes
Ship via: Can Ship UPS
Alternate Codes: ND80JD-BRW622, ND80JDBRW622, SCHND80JD-BRW622
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder
Design: Broadway
Door Thickness: 1-5/8 In. - 2-1/8 In.
Finish: 622/US19
Finish Description: Flat Black Coated
Fire Rated: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: BRW - Broadway
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Broadway
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom Lock
Manufacturer Function Description: Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress.
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Num Pins: 6
Projection: 3-1/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ND Series Lever Locks
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8"
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: J
Structure Function: 80
Structure Latch: D
Structure Latch Number: 13-247
Structure Outside Finish: 622
Structure Outside Trim: BRW
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
