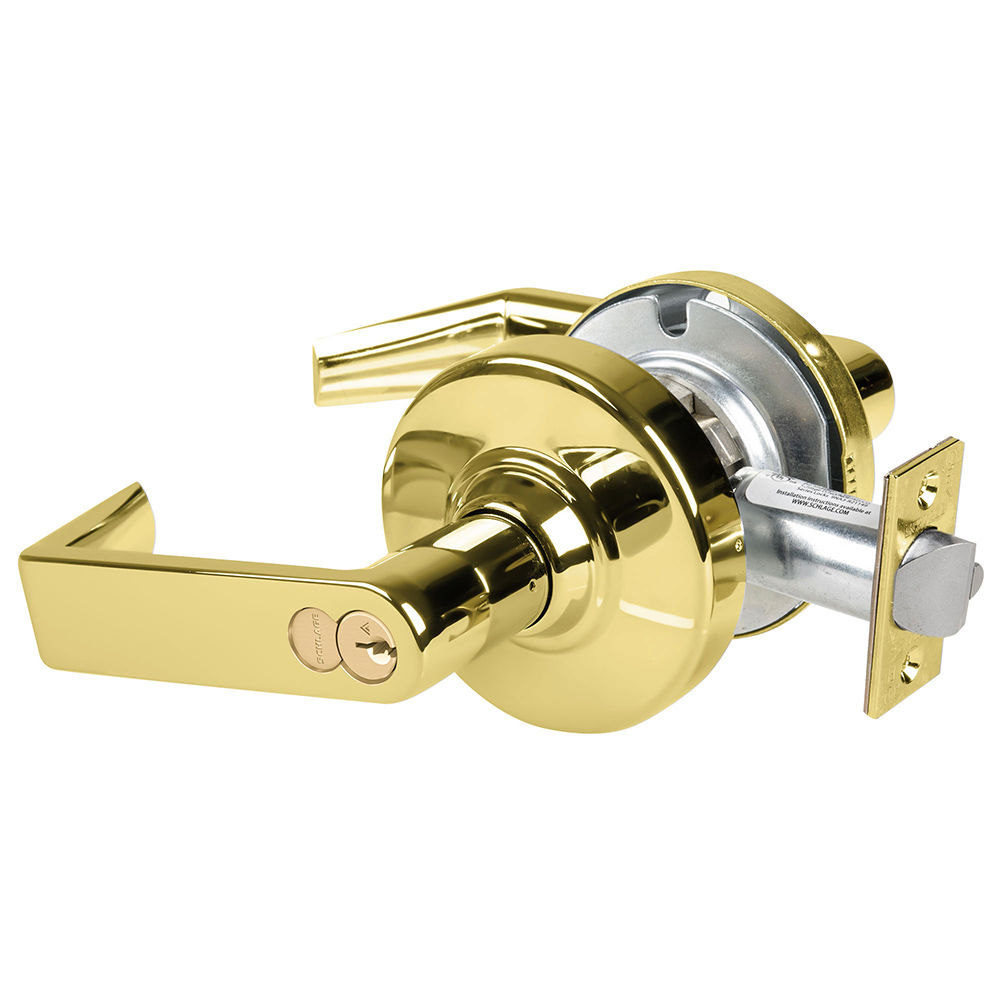

Schlage Commercial ND80RDRHO605 ND Series Storeroom Large Format Rhodes with 13-247 Latch 10-025 Strike Bright Brass Finish
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F86 - Storeroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Prep with Core
Cylinders Present: Single Cylinder
Design: Rhodes
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: Bright Brass
Finish Description: Bright Brass
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Storeroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Of Keys: 2
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4540296,4541421
Pins: 6
Product Height: 3.44"
Product Length: 6.28"
Product Width: 2.94"
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
