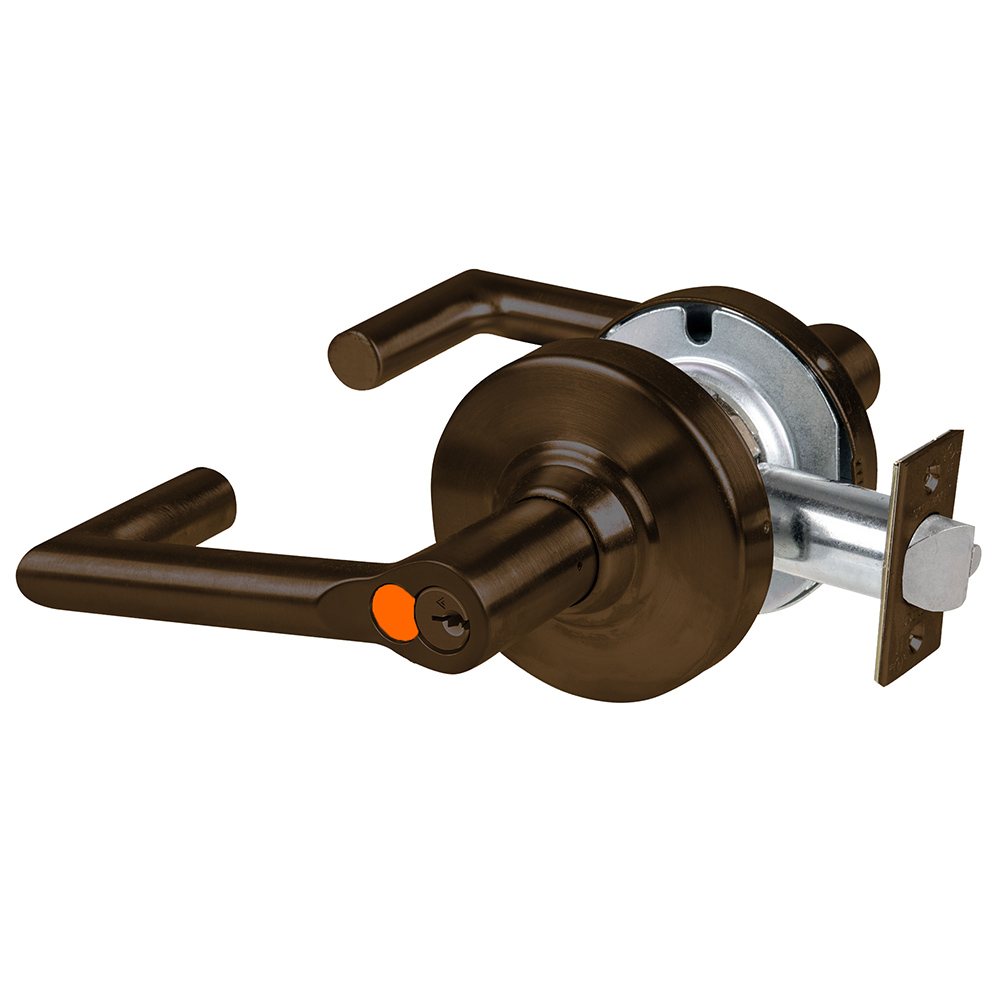

Schlage ND80TD BRK 613 14-028 Grade 1 Storeroom Lock is a reliable choice for commercial spaces that demand both security and durability. This Grade 1 storeroom lock features the elegant Boardwalk lever design and comes equipped with Schlage FSIC preparation, including a construction core for easy installation. With a 3-3/4" backset and oil-rubbed bronze finish, it blends seamlessly with any architectural style while providing robust performance. Designed to exceed BHMA Grade 1 requirements, the ND Series lockset boasts over three million cycles of operation without failure. This means you can trust its longevity in high-traffic areas such as healthcare, education, and retail environments. The non-handed design allows for versatile installation on doors with a thickness of 1 5/8" to 2 1/8", accommodating a variety of applications. The Schlage ND80TD features a 1/2" throw deadlocking latch bolt for added security, and its zinc-plated chassis ensures corrosion resistance. Additionally, it includes a 6-pin Everest keyway for enhanced key control, with options for master keying. With a limited ten-year warranty, this storeroom lock not only meets but exceeds your expectations for safety and performance.
Grade 1 Storeroom Lock, Boardwalk Lever, Schlage FSIC Prep with Construction Core, 3-3/4" Backset, Oil Rubbed Bronze Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F86 - Storeroom
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Schlage FSIC Prep With Construction Core
Cylinders Present: Single Cylinder
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keying: Construction
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Boardwalk
Leverknob Design: BRK - Boardwalk Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Storeroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75"
Pack Height 2: 10"
Pack Length: 9.5"
Pack Length 2: 16.38"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25"
Pack Width 2: 14.63"
Pbs Options: '4540297,217718659,4541421
Pins: 6
Product Height: 3.44"
Projection: 3-1/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 3-3/4 In.
Std Latch Number: 14-028
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
