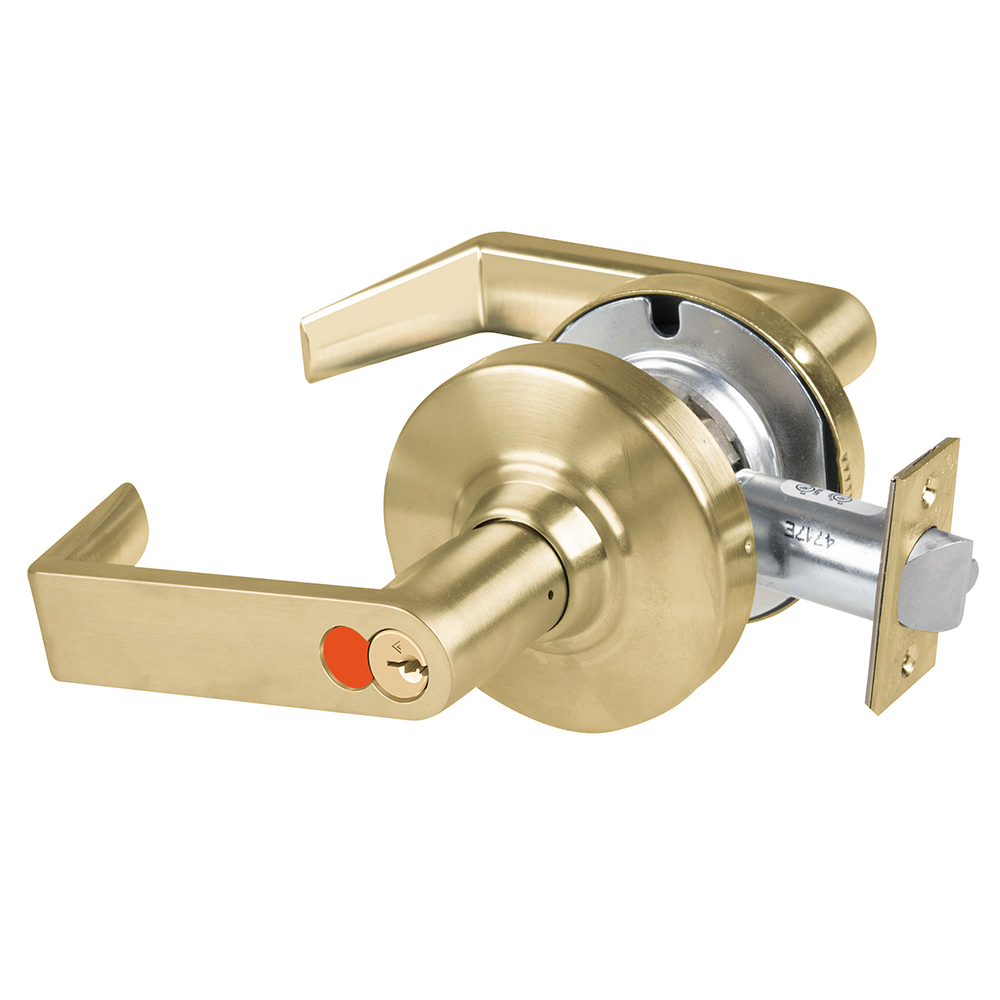

Schlage ND80TD RHO 606 Grade 1 Storeroom Lock
Images may not represent actual product and finish

Schlage ND80TD RHO 606 Grade 1 Storeroom Lock

Your Price: $612.34
Retail Price:$1,088.60
Your Savings:$476.26(44%)
The Schlage ND80TD RHO 606 is a durable Grade 1 storeroom lock with a satin brass finish and versatile installation options.
Part Number : SCH_ND80TDRHO606
Availability: 0 Assembled to order. Not on the shelf right now, but most orders ship within 5 business days. We email you if your order is delayed.

Choose Options

*
*
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Schlage ND80TD RHO 606 Grade 1 Storeroom Lock

Schlage ND80TD RHO 606 Grade 1 Storeroom Lock offers exceptional security and durability, making it ideal for various commercial applications such as healthcare, education, and retail. This Grade 1 storeroom lock features the Rhodes lever design and is Schlage FSIC prepared with a construction core, ensuring a reliable and robust locking mechanism. Its satin brass finish not only enhances its aesthetic appeal but also provides resistance to wear. Designed for non-handed installation, this lock accommodates door thicknesses ranging from 1 5/8" to 2 1/8", making it versatile for different settings. The lock’s zinc-plated chassis guarantees corrosion resistance, while the 1/2" throw deadlocking latch bolt adds an extra layer of security. With a proven record of exceeding 3 million operating cycles without failure, confidence in its performance is assured. The ND Series also meets ANSI A156.2 Series 4000 Grade 1 standards, confirming its high durability against abuse. Keying options include interchangeable cores and high-security cylinders, providing flexibility for complex security needs. Backed by a ten-year limited warranty, Schlage's commitment to quality is evident, ensuring peace of mind for facility owners.

Grade 1 Storeroom Lock

Grade 1 Storeroom Lock, Rhodes Lever, Schlage FSIC Prep with Construction Core, Satin Brass Finish, Non-Handed

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.

Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.

The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.

  • Handing: All ND-Series lever locksets are non-handed.
  • Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
  • Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
  • Lock Chassis: Zinc plated for corrosion resistance.
  • Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
  • Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
  • Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
  • Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
  • Warranty: Ten-year limited for all functions including Vandlgard.



Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI A156.2 Series 4000, Grade 1

Ansi Function: F86 - Storeroom

Baa Qualified: Yes

Bolt Projection: 1/2 In.

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Schlage FSIC Prep With Construction Core

Cylinders Present: Single Cylinder

Door Thickness: 1-5/8 In. to 2-1/8 In.

Finish: 606/US4

Finish Family: Matte Brass

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 80-Storeroom Lock

Function Family: Storeroom

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Keying: Construction

Latch Bore Diameter: 1 In.

Lever Knob: Lever

Lever Knob Design Name: Rhodes

Leverknob Design: RHO - Rhodes Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 10 Years

Lock Face Size: 1-1/8 In. x 2-1/4 In.

Manufacturer Function: Storeroom Lock

Maximum Door Thickness: 2-1/8 In.

Minimum Door Thickness: 1-5/8 In.

Origin: Mexico

Pack Height: 4.75"

Pack Height 2: 10"

Pack Length: 9.5"

Pack Length 2: 16.38"

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Volume 2: 2394.84 in³

Pack Width: 8.25"

Pack Width 2: 14.63"

Pbs Options: '4540297,4541421

Pins: 6

Product Height: 3.44"

Product Length: 6.28"

Product Width: 2.94"

Projection: 2-15/16 In.

Rose Escutcheon: Rose

Roseescutcheon Design: 3-7/16" Rose Diameter

Roseescutcheon Dimensions: 3-7/16"

Screws: Wood/Machine Screws

Series: ND Series Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Number: 13-247

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8 In.

Std Strike Number: 10-025

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
