Schlage ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

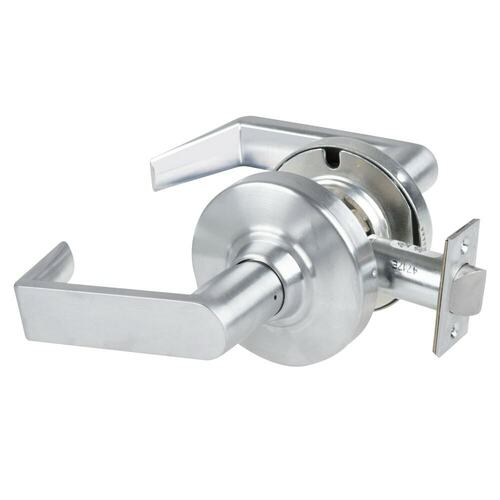

Images may not represent actual product and finish

Schlage ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Your Price: $600.88

Retail Price:$961.40

Your Savings:$360.52(37%)

Grade 1 Vandlgard Corridor Cylindrical Lock, Athens Lever, FSIC Less Core, Satin Chrome Finish, Non-handed

Part Number

: SCH_ND97JDATH626

Availability: 1 In Stock

Quantity

Description

Schlage ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Schlage Commercial ND97JDATH626 ND Series Vandlgard Corridor Large Format Less Core Athens with 13-247 Latch 10-025 Strike Satin Chrome Finish

Corridor, Locked or Unlocked by Key From Outside, Push-Button Locking From Inside, Turning Inside Lever or Closing Door Releases Button, When Outside Lever is Locked it Can Only Be Unlocked by Key, Inside Lever is Always Unlocked for Immediate Egress
ANSI/BHMA Certified A156.2-2011
1-5/8" to 2-1/8" Door Range
Commercial Grade 1
UL Listed for 3 Hour Fire Door
No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Cast steel spindle construction exceeding 16 million cycles
Withstood aggressive Schlage development testing including lever-snap and abusive cycling
31 mechanical functions
6 wired functions with:
Autodetecting 12-24V DC input
Switch-selectable EL/EU operation
Modular request to exit (RX)
0.230A max/0.010A holding current
Available in 10 finishes, 5 lever designs, and 2 rose designs
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Ship via: Can Ship UPS

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: ND97JDATH626, SCHND97JDATH626

Ansi: ANSI A156.2 Series 4000, Grade 1

Ansi Function: F90 - Dormitory

Baa Qualified: Yes

Backset: 2-3/4" Backset

Bolt Projection: 1/2 In.

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: 6-Pin, FSIC - Schlage, Less Core

Cylinders Present: Single Cylinder

Design: Athens

Door Application: Cylindrical Levers

Door Thickness: 1-5/8 In. to 2-1/8 In.

Finish: Satin Chrome

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chrome

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 180 min

Function: Corridor

Function Family: Corridor

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Latch Bore Diameter: 1 In.

Lever Design: Athens

Lever Knob: Lever

Lever Knob Design Name: Athens

Leverknob Design: ATH - Athens Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 10 Years

Lock Face Size: 1-1/8 In. x 2-1/4 In.

Manufacturer Function: Corridor Lock

Maximum Door Thickness: 2-1/8 In.

Minimum Door Thickness: 1-5/8 In.

Origin: Mexico

Pack Height: 4.75"

Pack Height 2: 10"

Pack Length: 9.5"

Pack Length 2: 16.38"

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Volume 2: 2394.84 in³

Pack Width: 8.25"

Pack Width 2: 14.63"

Pbs Options: '4540298,4541421

Pins: 6

Product Height: 3.44"

Product Length: 6.28"

Product Width: 3.31"

Projection: 3-5/16 In.

Rose Escutcheon: Rose

Roseescutcheon Design: 3-7/16" Rose Diameter

Roseescutcheon Dimensions: 3-7/16"

Screws: Wood/Machine Screws

Series: ND

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Number: 13-247

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8 In.

Std Strike Number: 10-025

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
