Attributes

Ship via: Can Ship UPS

Manufacturer surcharge: 2.0%

Accessible: Yes

Ada Compliance: Yes

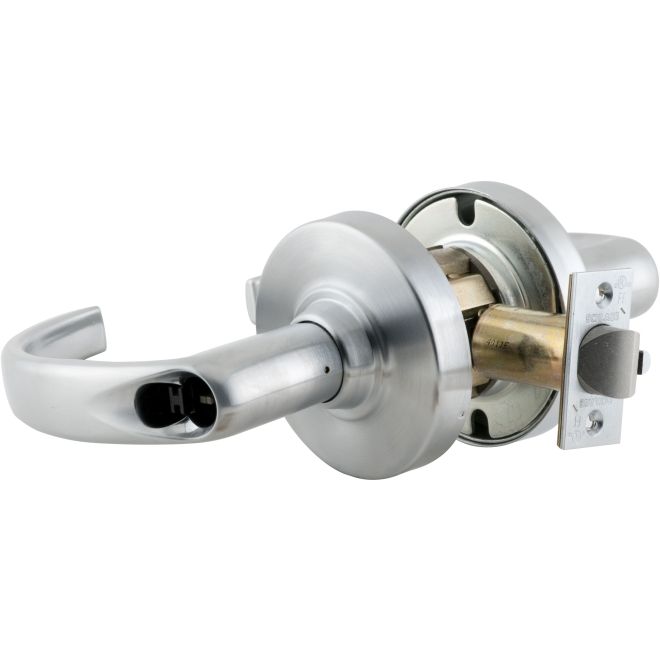

Alternate Codes: ND97JDSPA626

Ansi: ANSI A156.2 Series 4000, Grade 1

Ansi Function: F90 - Dormitory

Ansi Function Description: Dormitory

Baa Qualified: Yes

Backset: 2-3/4" Backset

Bolt Projection: 1/2 In.

Bolt Protection: 1/2"

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Schlage FSIC Less Core

Cylinders Present: Single Cylinder

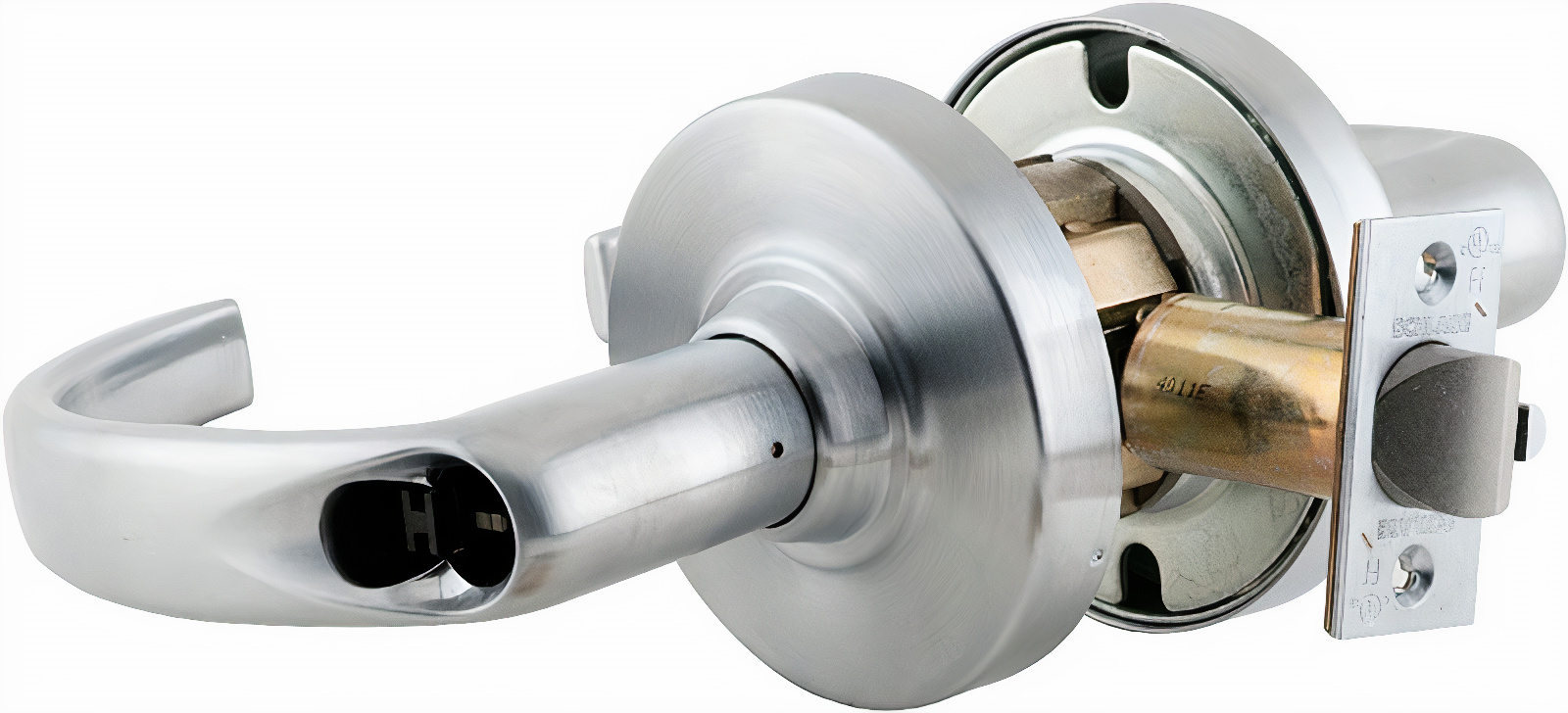

Design: Sparta

Door Application: Cylindrical Levers

Door Thickness: 1-5/8" - 2-1/8"

Finish: 626/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chrome

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 180 min

Function: 97-Corridor Lock

Function Family: Corridor

Grade: Grade 1

Hand: Not Handed

Handing: Non-handed

Installation: Commercial

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 1 In.

Latch Number: 13-247

Latch Type: Dead Latch (Guarded)

Lever Design: Sparta

Lever Knob: Lever

Lever Knob Design: SPA - Sparta

Lever Knob Design Family: Curved Return Lever

Lever Knob Design Name: Sparta

Leverknob Design: SPA - Sparta Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 10 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Corridor Lock

Manufacturer Function Description: Locked or unlocked by key from outside. Push-button locking from inside. Turning inside lever or closing door releases button. When outside lever is locked by key it can only be unlocked by key. Inside lever is always unlocked for immediate egress.

Maximum Door Thickness: 2-1/8 In.

Minimum Door Thickness: 1-5/8 In.

Num Pins: 6

Origin: Mexico

Pack Height: 4.75"

Pack Height 2: 10"

Pack Length: 9.5"

Pack Length 2: 16.38"

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Volume 2: 2394.84 in³

Pack Width: 8.25"

Pack Width 2: 14.63"

Pbs Options: '4540298,4541421

Pins: 6

Product Height: 3.44"

Product Length: 6.66"

Product Width: 3.5"

Projection: 3-1/2 In.

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16 In. Diameter

Rose Escutcheon Dimensions: 3-7/16"

Roseescutcheon Design: 3-7/16" Rose Diameter

Roseescutcheon Dimensions: 3-7/16"

Screws: Combination

Series: ND

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Number: 13-247

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8 In.

Std Strike Number: 10-025

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Strike Height: 4-7/8"

Strike Number: 10-025

Strike Type: ASA

Strike Width: 1-1/4"

Structure Cylinder: J

Structure Function: 97

Structure Latch: D

Structure Latch Number: 13-247

Structure Outside Finish: 626

Structure Outside Trim: SPA

Structure Series: ND

Structure Strike Number: 10-025

Subtype: Cylindrical Lock

Type: LOCK SETS

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
