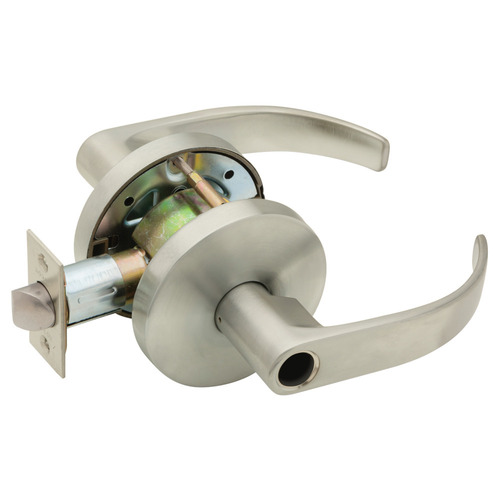

Schlage ND97LD ATH 626 ND97LD SPA 626 Lock Cylindrical Lock

Your Price: $332.32
Retail Price:$606.00
Your Savings:$273.68(45%)

Schlage ND97LD ATH 626

Vandlgard Corridor Lock, Grade 1, Cylindrical Lock, Sparta Lever, Less Cylinder, Satin Chrome
Part Number

:
SCH_ND97LDATH626

Choose Options

*
*
Schlage ND97LD ATH 626 ND97LD SPA 626 Lock Cylindrical Lock

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

  • Corridor, Locked or Unlocked by Key From Outside, Push-Button Locking From Inside, Turning Inside Lever or Closing Door Releases Button, When Outside Lever is Locked it Can Only Be Unlocked by Key, Inside Lever is Always Unlocked for Immediate Egress
  • ANSI/BHMA Certified A156.2-2011
  • 1-5/8" to 2-1/8" Door Range
  • Commercial Grade 1
  • UL Listed for 3 Hour Fire Door

Attributes

Ship via: Can Ship UPS

Ansi Function: F90 - Dormitory

Ansi Function Description: Dormitory

Baa Qualified: Yes

Backset: 2-3/4" Backset

Bolt Protection: 1/2"

Bore Hole Diameter: 2-1/8"

Country of Origin: Mexico

Cylinder Type: Less Cylinder

Cylinders Present: Single Cylinder

Design: Athens

Door Thickness: 1-5/8" - 2-1/8"

Finish: 626/US26D

Finish Description: Satin Chrome

Fire Rated: 3 Hours {A}

Function: 97-Corridor Lock

Function Family: Corridor

Grade: Grade 1

Hand: Not Handed

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 1"

Latch Number: 13-247

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: SPA - Sparta

Lever Knob Design Family: Curved Lever

Lever Knob Design Name: Athens

Limited Warranty: 3 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Corridor Lock

Manufacturer Function Description: Locked or unlocked by key from outside. Push-button locking from inside. Turning inside lever or closing door releases button. When outside lever is locked by key it can only be unlocked by key. Inside lever is always unlocked for immediate egress.

Maximum Door Thickness: 2-1/8"

Minimum Door Thickness: 1-5/8"

Num Pins: 6

Projection: 3-5/16"

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16 In. Diameter

Rose Escutcheon Dimensions: 3-7/16"

Screws: Combination

Series: ND Series Lever Locks

Strike: ASA Strike

Strike Dimensions: 1-1/4" x 4-7/8"

Strike Height: 4-7/8"

Strike Number: 10-025

Strike Type: ASA

Strike Width: 1-1/4"

Structure Cylinder: L

Structure Function: 97

Structure Latch: D

Structure Latch Number: 13-247

Structure Outside Finish: 626

Structure Outside Trim: ATH

Structure Series: ND

Structure Strike Number: 10-025

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks
