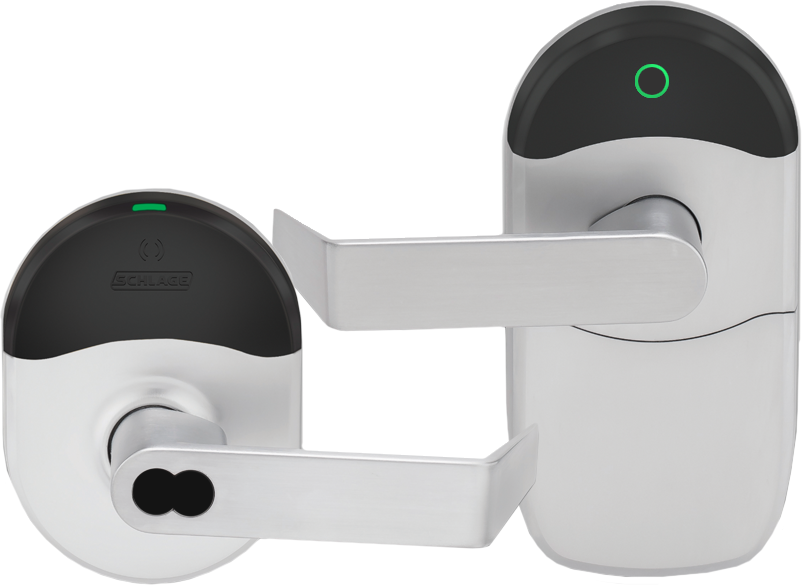

Schlage NDEB-BD-RHO-626 Wireless Cylindrical Lock, 125kHz/13.56MHz/2.4GHz, SFIC, 5000 Users, Grade 1

Schlage Electronic Security NDEB-BD-RHO-626 Mobile Enabled Wireless Cylindrical Lock offers a modern solution for enhancing security and convenience in commercial settings. This advanced locking system is designed to integrate seamlessly into your access control strategy, allowing users to employ smart devices for entry. With a robust capacity of up to 5,000 users and the ability to store 2,000 audits, it ensures effective management of access while maintaining a detailed log of entry events. This lock combines multiple functionalities into one unit, including a credential reader, door position sensor, and request-to-exit switch, simplifying installation and reducing the need for additional components. The NDE features standard multi-technology compatibility with Schlage MiFare, Bluetooth, and NFC mobile credentials, along with optional support for HID smart credentials. Built to withstand varying conditions, the weather-resistant design operates effectively in temperatures ranging from -31°F to 151°F. Additionally, the lever handing can be reversed in seconds without tools, enhancing versatility for any application. With a Grade 1 rating and ANSI certification, the NDEB-BD-RHO-626 ensures reliability and security that meets the highest industry standards, making it ideal for office entries, conference rooms, and sensitive storage areas.

Mobile Enabled Wireless Cylindrical Lock, 125khz Proximity, 13.56 MHz Smart, 2.4 GHz Bluetooth Low Energy Reader, SFIC (Small Format IC), Less Core, Rhodes Lever, 5000 Users, 2000 Audits, 2-3/4in Backset, ANSI Strike, Grade 1, 626/US26D Satin Chrome

The NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings and offers users the security and convenience of using a smart device to gain access. NDE wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit, eliminating the need to install additional components or run wires to each opening. The open architecture design of NDE allows it to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS Alliance program. This enables customers to choose the system that best fits their requirements now and transition to another solution at any time. NDE suites with all Schlage ND levers and keyways to provide attractive options to meet the requirements of nearly any environment.

Features:

• NDE includes interior push button with indication for storeroom, office, privacy, and apartment applications
• Standard multi-technology credential compatibility includes Schlage MiFare, Bluetooth and NFC mobile, and proximity
• Optional support for HID smart and NFC mobile credentials
• Wireless configuration from connected smartphones and tablets
• Built-in Wi-Fi enables automated daily updates sent directly from host software
• Networked real-time communication available with the Engage Gateway and PACS provider solutions
• Ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas
• Fits mechanical ND door prep with minor modifications
• Weather resistant design
• Lever handing is field reversible in seconds; no tools required
• Up to 2 years of battery life

NDE Wireless Lock Specifications:

• Users: Up to 5,000
• Audits: Up to 2,000
• Credential Verification Time: Smart and proximity: ≤ 1 second Mobile: mobile device dependent
• Visual Communications: LED (red, amber, green)
• Audible Communications: Audible indicator (field configurable)
• Communication Standards:
• 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
• WPA2, WPA, WEP, 802.1x
• Bluetooth low energy (version 4.2)
• Transport Layer Security (TLS) version 1.2
• Advanced Encryption Standard (AES), 256-bit
• Gateway Communication Range: Up to 30' in typical building environments. A detailed site survey is recommended using the Engage Test Kit (TKE).
• Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires PACS provider system)
• Data Rate: 54 Mbps
• Connectivity Options:
• Bluetooth via mobile device (send updates at the lock)
• Wi-Fi access point (automatic daily updates)
• No-Tour
• ENGAGE Gateway (real-time communication) - RS-485 to ACP or IP to host
• Battery Life: Uses 4 AA batteries, Up to 2 years
• Operating Temperature:
• Exterior: -31° to 151°F (-35° to 66°C)
• Exterior: -13° to 151°F (-25° to 66°C) (NDEBSi)
• Interior: 32° to 120°F (0° to 49°C) (battery)
• Operating Humidity: 0 - 100% non-condensing

Specifications:

• Chassis: Cylindrical
• Handing: Right-handed from factory. Field reversible in seconds (no tools required)
• ANSI standard (Meets or exceeds): ANSI/BHMA A156.25-2013 (indoor/outdoor). ANSI/BHMA A156.2-2011, series 4000, grade 1
• Door Thickness: Standard: 1 5⁄8" - 2" (41mm - 51mm) only
• Backset: Standard: 2 3⁄4" (70mm). Optional: 2 3⁄8" (60mm)
• Latch Bolt: Standard: 1⁄2" (12mm) throw deadlatch (steel). Optional: 3⁄4" (19mm) throw anti-friction deadlatch available for pairs of fire doors
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1 3⁄16" lip, ANSI, DPS, 1 1⁄4" x 4". Optional: Additional strikes, lip lengths and ANSI strike box available
• Cylinder and Keys: Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys. Additional keying options available, including interchangeable cores, competitor brands, master keying and grand master keying

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• OME: Omega
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Available Status Signals:

• Request-to-exit
• Door position
• Interior cover tamper
• Magnetic tamper
• Battery status
• Lock/unlock status
• Communication status

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 643e - Aged bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome with antimicrobial
