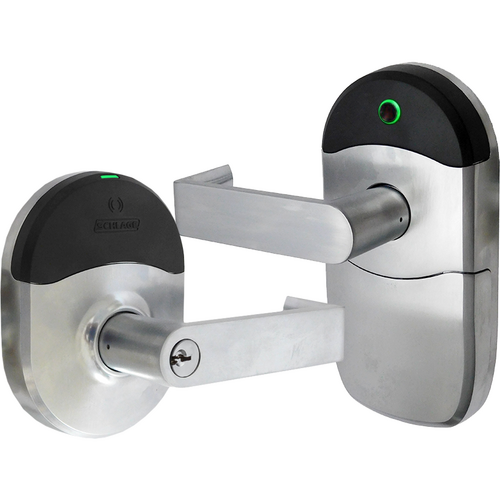

Schlage Electronic Security NDEB-LD-BRW-643E KIT is a mobile-enabled wireless cylindrical lock that seamlessly integrates advanced access control features into any commercial setting. Designed with convenience in mind, this lock allows users to gain entry via a smart device, eliminating the need for traditional keys. The NDEB-LD-BRW-643E supports up to 5,000 users and can store 2,000 audit trails, making it ideal for high-traffic environments. Its multi-technology compatibility includes Schlage MiFare, Bluetooth, NFC mobile credentials, and proximity access. The built-in Wi-Fi enables automated daily updates, ensuring the system remains secure and current. Installation is straightforward due to the all-in-one design that combines the lock, credential reader, door position sensor, and request-to-exit switch. The lock is ANSI Grade 1 certified, ensuring durability and reliability, and features a weather-resistant design suitable for various applications, from office suites to sensitive storage areas. With a lever handing that can be reversed in seconds without tools and a battery life of up to two years, the NDEB-LD-BRW-643E offers both flexibility and peace of mind. Available in an elegant Aged Bronze finish, this lock complements any decor while enhancing security.

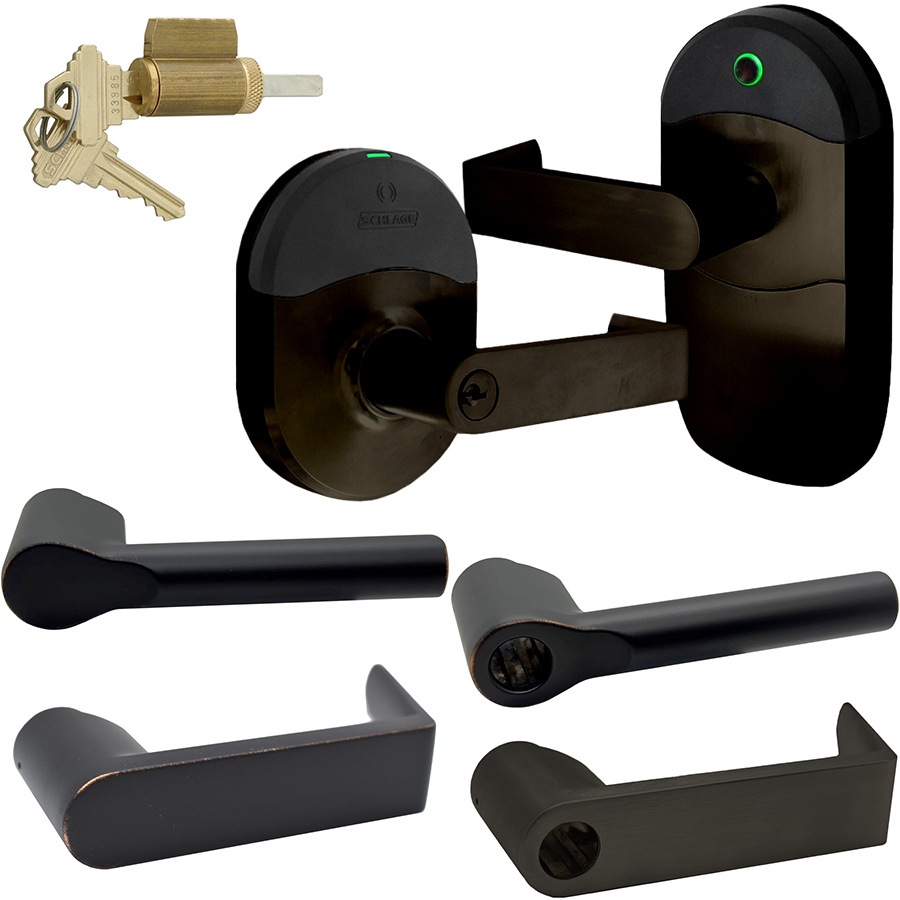

KIT - Mobile Enabled Wireless Cylindrical Lock, 125khz Proximity, 13.56MHz Smart, 2.4GHz Bluetooth Low Energy Reader, Key-in-Lever, Less Cylinder, Broadway Lever, 5000 Users, 2000 Audits, 2-3/4in Backset, ANSI Strike, Grade 1, 643E/US11P Aged Bronze

The NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings and offers users the security and convenience of using a smart device to gain access. NDE wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit, eliminating the need to install additional components or run wires to each opening. The open architecture design of NDE allows it to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS Alliance program. This enables customers to choose the system that best fits their requirements now and transition to another solution at any time. NDE suites with all Schlage ND levers and keyways to provide attractive options to meet the requirements of nearly any environment.

Features:

• NDE includes interior push button with indication for storeroom, office, privacy, and apartment applications
• Standard multi-technology credential compatibility includes Schlage MiFare, Bluetooth and NFC mobile, and proximity
• Optional support for HID smart and NFC mobile credentials
• Wireless configuration from connected smartphones and tablets
• Built-in Wi-Fi enables automated daily updates sent directly from host software
• Networked real-time communication available with the Engage Gateway and PACS provider solutions
• Ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas
• Fits mechanical ND door prep with minor modifications
• Weather resistant design
• Lever handing is field reversible in seconds; no tools required
• Up to 2 years of battery life

NDE Wireless Lock Specifications:

• Users: Up to 5,000
• Audits: Up to 2,000
• Credential Verification Time: Smart and proximity: ≤ 1 second Mobile: mobile device dependent
• Visual Communications: LED (red, amber, green)
• Audible Communications: Audible indicator (field configurable)
• Communication Standards:
• 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
• WPA2, WPA, WEP, 802.1x
• Bluetooth low energy (version 4.2)
• Transport Layer Security (TLS) version 1.2
• Advanced Encryption Standard (AES), 256-bit
• Gateway Communication Range: Up to 30' in typical building environments. A detailed site survey is recommended using the Engage Test Kit (TKE).
• Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires PACS provider system)
• Data Rate: 54 Mbps
• Connectivity Options:
• Bluetooth via mobile device (send updates at the lock)
• Wi-Fi access point (automatic daily updates)
• No-Tour
• ENGAGE Gateway (real-time communication) - RS-485 to ACP or IP to host
• Battery Life: Uses 4 AA batteries, Up to 2 years
• Operating Temperature:
• Exterior: -31° to 151°F (-35° to 66°C)
• Exterior: -13° to 151°F (-25° to 66°C) (NDEBSi)
• Interior: 32° to 120°F (0° to 49°C) (battery)
• Operating Humidity: 0 - 100% non-condensing

Specifications:

• Chassis: Cylindrical
• Handing: Right-handed from factory. Field reversible in seconds (no tools required)
• ANSI standard (Meets or exceeds): ANSI/BHMA A156.25-2013 (indoor/outdoor). ANSI/BHMA A156.2-2011, series 4000, grade 1
• Door Thickness: Standard: 1 5⁄8" - 2" (41mm - 51mm) only
• Backset: Standard: 2 3⁄4" (70mm). Optional: 2 3⁄8" (60mm)
• Latch Bolt: Standard: 1⁄2" (12mm) throw deadlatch (steel). Optional: 3⁄4" (19mm) throw anti-friction deadlatch available for pairs of fire doors
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1 3⁄16" lip, ANSI, DPS, 1 1⁄4" x 4". Optional: Additional strikes, lip lengths and ANSI strike box available
• Cylinder and Keys: Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys. Additional keying options available, including interchangeable cores, competitor brands, master keying and grand master keying

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• OME: Omega
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Available Status Signals:

• Request-to-exit
• Door position
• Interior cover tamper
• Magnetic tamper
• Battery status
• Lock/unlock status
• Communication status

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 643e - Aged bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome with antimicrobial
