Schlage PS902-4R-BBK 2 Amp Power Supply Relay Board with Battery Backup, 12/24VDC Selectable

Schlage Electronic Security PS902-4R-BBK KIT is a robust power supply solution designed to meet the evolving demands of access control systems. This unit features a 2 Amp output, field-selectable at 12 or 24 VDC, ensuring a constant and reliable power source tailored to your installation needs. It operates on a universal input voltage of 120/240 VAC, making it versatile for various applications. The power supply is equipped with a flat mounting design and polarized locking connectors, simplifying installation and enhancing accessibility to terminal blocks for connecting electrified devices like strikes and locks. The AC input and DC output monitoring circuit, complete with LED indicators, provides real-time status updates, while the high-voltage protective cover ensures safety during operation. Certified to UL 294, ULC-S318, RoHS, and FCC part 15 standards, the PS902-4R-BBK KIT also includes a battery backup board that automatically selects the appropriate voltage, maintaining functionality during power interruptions. With an operating temperature range of 32° to 120°F, this power supply is built to withstand various environments. Ideal for accessing control, alarm power supplies, and CCTV systems, the Schlage PS902-4R-BBK KIT is a reliable choice for professionals seeking quality and performance.

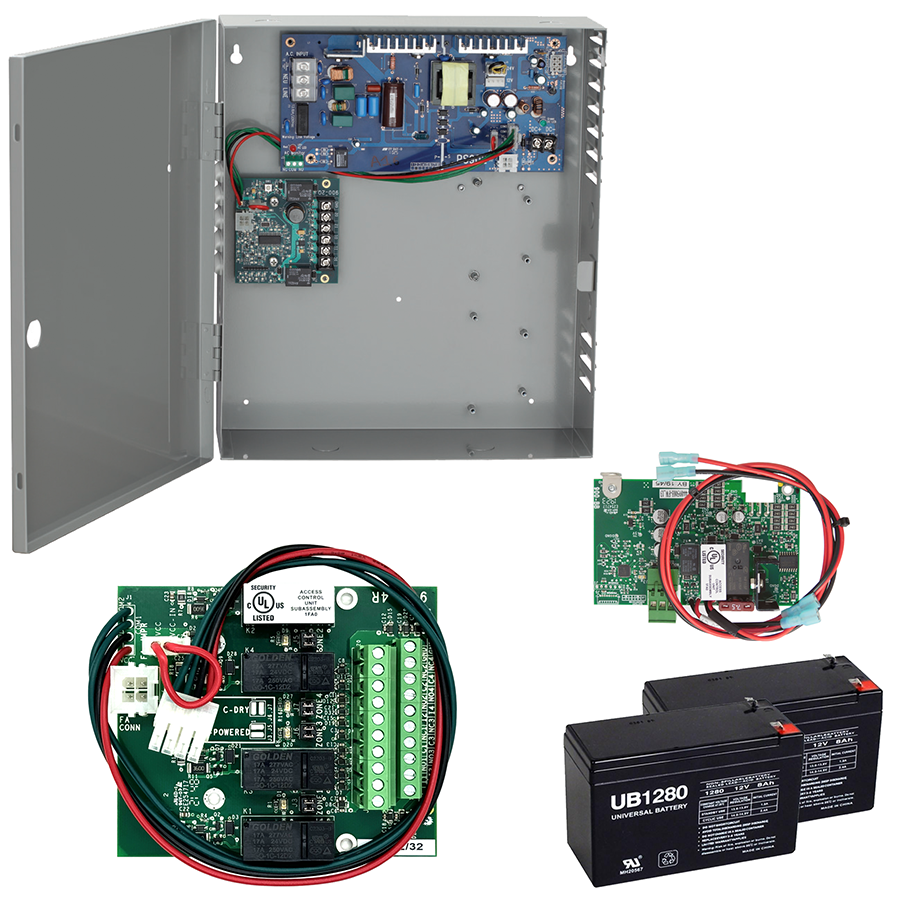

KIT - 2 Amp Power Supply, 4 Relay Option Board, Battery Backup Kit, 12/24VDC Field Selectable.

The Schlage comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 2A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 2, filtered and regulated power
• Universal 120-240 VAC, fused primary input
• Single polarized option board connector
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry (not shown)
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC part 15 certified

Specifications:

• Input Voltage: 120/240 VAC, 50/60 Hz, universal input
• Output Voltage: 2A @ 12 or 24 VDC Field selectable with jumper switching supply, 5% regulation, 240mVpp max ripple
• Enclosure: Grey/baked enamel 14" x 12" x 4" (H x W x D) eight 1⁄2" x 3⁄4" knockouts NEMA grade 1 hinged cover with lock down screws
• Operating Temperature: 32° - 120°F (0° - 49°C)
• Battery Backup (install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• AC Primary Fuse Size: 3.15A, 250v, 5 x 20mm
• Battery Fuse Size: 7.5A 32v ATO blade style
• DC Output Protection: Overload protection - current limited foldback circuit
• Accessories: 900-BAT: Backup battery pack
• LED Indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC Input Termination: 3 position terminal block with protective cover. Wire capacity: 10 AWG max.
• DC Output Termination: 2 position terminal block. Wire capacity: 12 AWG max.
• Option Board Connectors: 1
• Fire Alarm Board Connector: Yes
• Keylock: Optional

Available Option Boards:

• 900-BB: Battery backup option board (installs on main board)
• 900-BBK: Battery backup kit (includes option board and two 7A/hour batteries)
• 900-FA: Emergency interface/fire alarm plug-in (integrates with fire alarm and is used to cut power in case of emergency). Install on main or option board
• 900-2RS: 2 relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 relay board; independently controlled, no timing or logic
• 900-4RL: 4 relay board with integrated logic; field programmable; individual or sequential operation for controlling security interlocks, auto operators, and time delay function
• 900-8F: 8 individually fuse protected outputs, giving the flexibility to power multiple devices and provides another layer of protection
• 900-8P: 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2)
• 900-KL: Key lock cover
