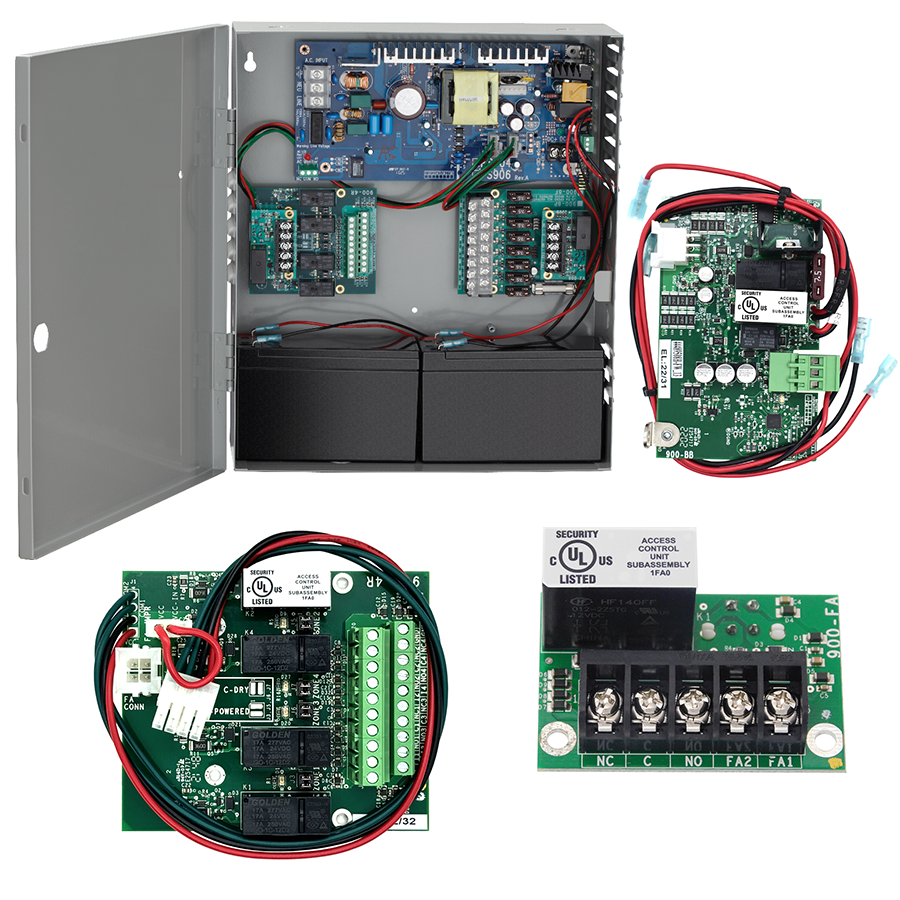

Schlage PS904-4R-FA-BB 4 Amp Power Supply Relay Board, Fire Alarm Relay, 12/24VDC, Battery Backup

Schlage Electronic Security PS904-4R-FA-BB KIT delivers reliable power management tailored for access control systems. This robust power supply features a 4 Amp output that is field-selectable between 12V and 24V DC, ensuring versatile application across various security devices. With a universal input voltage of 120-240 VAC and a durable grey enclosure, it is designed for easy installation and long-lasting performance. The kit includes a 4 Relay Option Board and a Plug-in Fire Alarm Relay, providing flexibility in configuring outputs for specific security needs, such as switched or unswitched power during alarm events. The design incorporates polarized option board connectors that eliminate the need for racks, simplifying connections to electrified devices like locks and card readers. Safety is prioritized with built-in features including AC input and DC output monitoring circuits with LED indicators, as well as overload protection to safeguard your devices. The battery backup board auto-selects voltage, ensuring seamless operation even during power outages. Certified by UL 294, ULC-S318, RoHS, and FCC Part 15, the Schlage PS904-4R-FA-BB KIT is an excellent investment for professionals seeking dependable power solutions in access control and security applications.

KIT - 4 Amp Power Supply, 4 Relay Option Board, Plug-in Fire Alarm Relay, Battery Backup Board Only, 12/24VDC Field Selectable

The comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 4A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 2, filtered and regulated power
• Universal 120-240 VAC, fused primary input
• Two polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC Part 15 certified

Specifications:

• Input voltage: 120/240 VAC, 50/60 Hz, universal input
• Output voltage: 4A @ 12 or 24 VDC Field selectable with jumper switching supply, 5% regulation, 240mVpp max ripple
• Enclosure: Grey/baked enamel 14" x 12" x 4" (H x W x D) eight 1 ⁄2" x 3⁄4" knockouts NEMA grade 1 hinged cover with lock down screws
• Operating temperature: 32° - 120°F (0° - 49°C)
• AC primary fuse size: 4A, 250v, 5 x 20mm SLOW-BLOW
• Battery fuse size: 7.5A 32v ATO blade style
• DC output protection: Overload protection - current limited foldback circuit
• LED indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC input termination: 3 position terminal block with protective cover. Wire capacity: 10 AWG max.
• DC output termination: 2 position terminal block. Wire capacity: 12 AWG max.
• Option board connectors: 2
• Fire alarm board connector: Yes (requires connection on option board)
• Keylock: Optional

Option Boards:

• 900-BB: Battery backup option board (installs on main board)
• 900-BBK: Battery backup kit (includes option board and two 7A/hour batteries)
• 900-FA: Emergency interface/fire alarm plug-in (integrates with fire alarm and is used to cut power in case of emergency). Must be installed on option boards
• 900-2RS: 2 relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 relay board; independently controlled, no timing or logic
• 900-4RL: 4 relay board with integrated logic; field programmable; individual or sequential operation for controlling security interlocks, auto operators, and time delay function
• 900-8F: 8 individually fuse protected outputs, giving the flexibility to power multiple devices and provides another layer of protection
• 900-8P: 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2)
• 900-KL: Key lock cover
