Schlage PS904-4R-FA-BBK 4 Amp Power Supply Relay Board Kit with Battery Backup, 12/24VDC

Schlage Electronic Security PS904-4R-FA-BBK KIT offers a robust 4 Amp power supply designed for versatile access control applications. This kit features a field-selectable output of 12 or 24 VDC, ensuring a constant power supply tailored to your specific needs. Its universal input accommodates 120 to 240 VAC, making it adaptable for various installation environments. Installation is streamlined with a flat mounting design and polarized locking connectors, eliminating the need for cumbersome racks and side connectors, while also providing easy access to terminal blocks for electrified devices like strikes and locks. The PS904-4R-FA-BBK KIT is equipped with an AC input monitoring circuit and LED indicators that provide real-time feedback on power status, enhancing operational awareness. Additional features include a high-voltage protective cover for safety, an optional fire alarm plug-in board that integrates seamlessly with existing fire alarm systems, and a battery backup board that automatically selects voltage. Certified under UL 294, ULC-S318, RoHS, and FCC Part 15, this power supply kit ensures compliance with stringent safety and environmental standards. With dimensions of 14" x 12" x 4" and a weight of approximately 9.0 lbs, the Schlage PS904-4R-FA-BBK KIT is a reliable choice for professionals seeking efficiency and safety in access control systems.

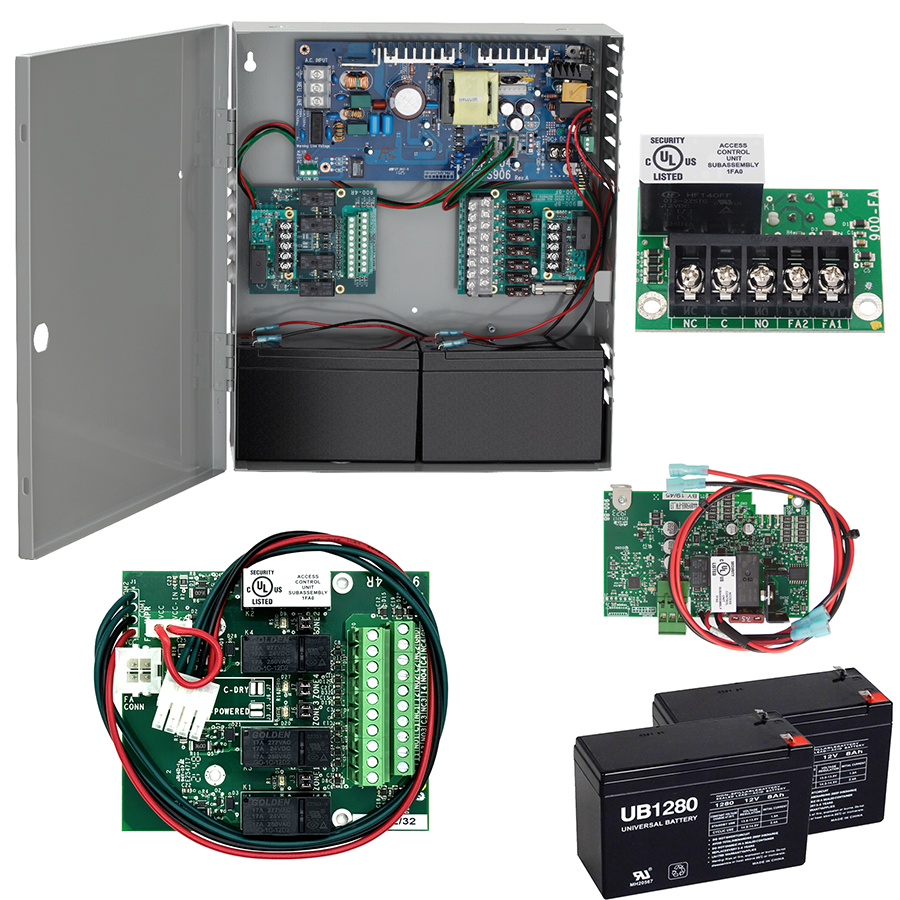

KIT - 4 Amp Power Supply, 4 Relay Option Board, Plug-in Fire Alarm Relay, Battery Backup Kit, 12/24VDC Field Selectable.

The comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 4A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 2, filtered and regulated power
• Universal 120-240 VAC, fused primary input
• Two polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC Part 15 certified

Specifications:

• Input voltage: 120/240 VAC, 50/60 Hz, universal input
• Output voltage: 4A @ 12 or 24 VDC Field selectable with jumper switching supply, 5% regulation, 240mVpp max ripple
• Enclosure: Grey/baked enamel 14" x 12" x 4" (H x W x D) eight 1 ⁄2" x 3⁄4" knockouts NEMA grade 1 hinged cover with lock down screws
• Operating temperature: 32° - 120°F (0° - 49°C)
• AC primary fuse size: 4A, 250v, 5 x 20mm SLOW-BLOW
• Battery fuse size: 7.5A 32v ATO blade style
• DC output protection: Overload protection - current limited foldback circuit
• LED indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC input termination: 3 position terminal block with protective cover. Wire capacity: 10 AWG max.
• DC output termination: 2 position terminal block. Wire capacity: 12 AWG max.
• Option board connectors: 2
• Fire alarm board connector: Yes (requires connection on option board)
• Keylock: Optional

Option Boards:

• 900-BB: Battery backup option board (installs on main board)
• 900-BBK: Battery backup kit (includes option board and two 7A/hour batteries)
• 900-FA: Emergency interface/fire alarm plug-in (integrates with fire alarm and is used to cut power in case of emergency). Must be installed on option boards
• 900-2RS: 2 relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 relay board; independently controlled, no timing or logic
• 900-4RL: 4 relay board with integrated logic; field programmable; individual or sequential operation for controlling security interlocks, auto operators, and time delay function
• 900-8F: 8 individually fuse protected outputs, giving the flexibility to power multiple devices and provides another layer of protection
• 900-8P: 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2)
• 900-KL: Key lock cover
