Schlage PS906-4R-BBK 6A Power Supply Relay Board with Battery Backup, 12/24VDC Selectable

Schlage Electronic Security PS906-4R-BBK KIT is a robust 6 Amp power supply designed to meet the evolving demands of the access control market. This versatile unit offers field-selectable output at both 12 and 24 VDC, ensuring adaptability to various security applications. Its universal input range of 120 to 240 VAC makes it suitable for different installation environments, while the polarized option board connectors simplify the setup process by eliminating the need for racks and side connectors. With a constant output rating and advanced features like AC input and DC output monitoring circuits with LED indicators, the PS906-4R-BBK KIT ensures reliable operation. The inclusion of a battery backup kit guarantees power continuity during outages, making it an essential component for critical security systems. The enclosure is designed for durability, featuring a NEMA grade 1 hinged cover and multiple knockouts for flexible wiring. Certified by UL 294, ULC-S318, RoHS, and FCC part 15, this power supply meets stringent safety standards. Weighing approximately 9.0 lbs, it is lightweight yet robust enough for demanding applications. Whether you're powering electrified locks, card readers, or other security devices, the Schlage Electronic Security PS906-4R-BBK KIT provides a dependable solution for your access control needs.

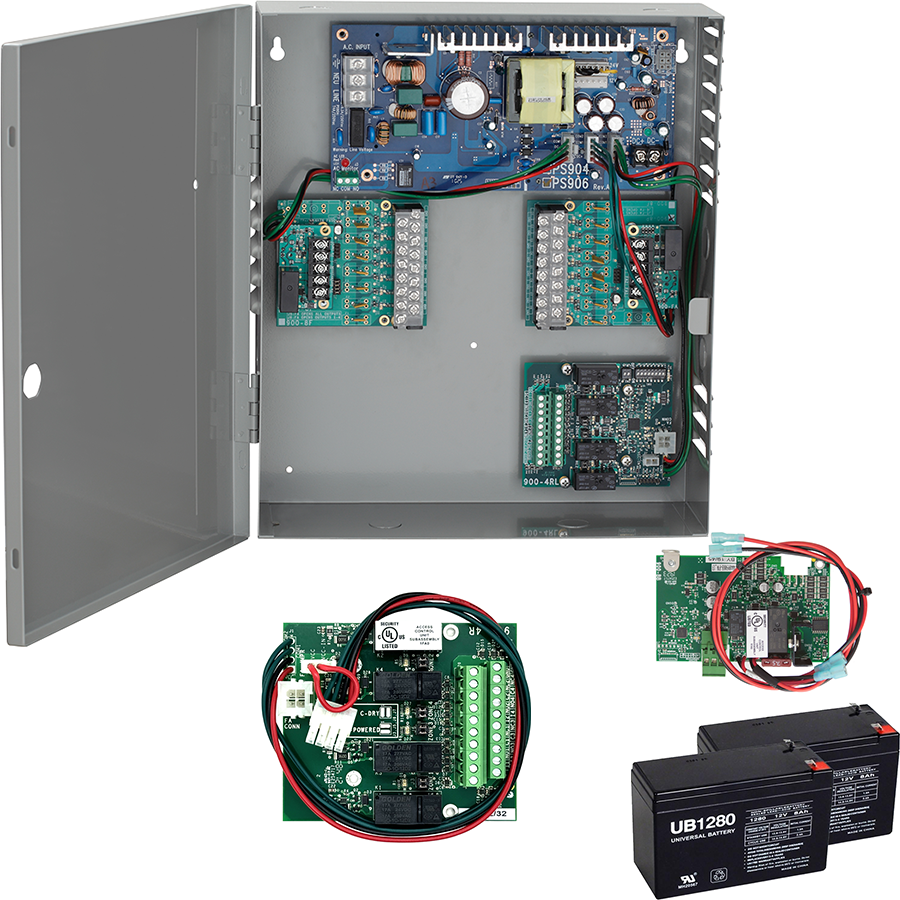

KIT - 6 Amp Power Supply, 4 Relay Option Board, Battery Backup Kit, 12/24VDC Field Selectable.

The comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 6A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 1, filtered and regulated power (class 2 when used with 900-8P option board)
• Universal 120-240 VAC, fused primary input
• Three polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC part 15 certified

Features:

• Input Voltage: 120/240 VAC, 50/60 Hz, universal input
• Output Voltage: 6A @ 12 or 24 VDC Field selectable with jumper switching supply, 5% regulation, 240mVpp max ripple
• Enclosure: Grey/baked enamel 14"x 12"x 4" (H x W x D) eight 1⁄2" x 3⁄4" knockouts NEMA grade 1 hinged cover with lock down screws
• Operating Temperature: 32° - 120°F (0°- 49° C)
• Battery Backup (install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• AC Primary Fuse Size : 6.3A, 250v, 5 x 20 mm
• Battery Fuse Size: 7.5A 32v ATO blade style
• DC Output Protection: Overload protection - current limited foldback circuit
• LED Indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC Input Termination: 3 position terminal block with protective cover. Wire capacity: 10 AWG max.
• DC Output Termination: 2 position terminal block. Wire capacity: 12 AWG max.
• Option Board Connectors: 3
• Fire Alarm Board Connector: Yes (requires connection on option board)
• Keylock: Optional

Available Option Boards:

• 900-BB: Battery backup option board (installs on main board)
• 900-BBK: Battery backup kit (includes option board and two 7A/hour batteries)
• 900-FA: Emergency interface/fire alarm plug-in (integrates with fire alarm and is used to cut power in case of emergency). Must be installed on option boards
• 900-2RS: 2 relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 relay board; independently controlled, no timing or logic
• 900-4RL: 4 relay board with integrated logic; field programmable; individual or sequential operation for controlling security interlocks, auto operators, and time delay function
• 900-8F: 8 individually fuse protected outputs, giving the flexibility to power multiple devices and provides another layer of protection
• 900-8P: 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2)
• 900-KL: Key lock cover
