Schlage PS906-4R-FA-BB 6A Power Supply Relay Board, Plug-in Fire Alarm, 12/24VDC, Battery Backup

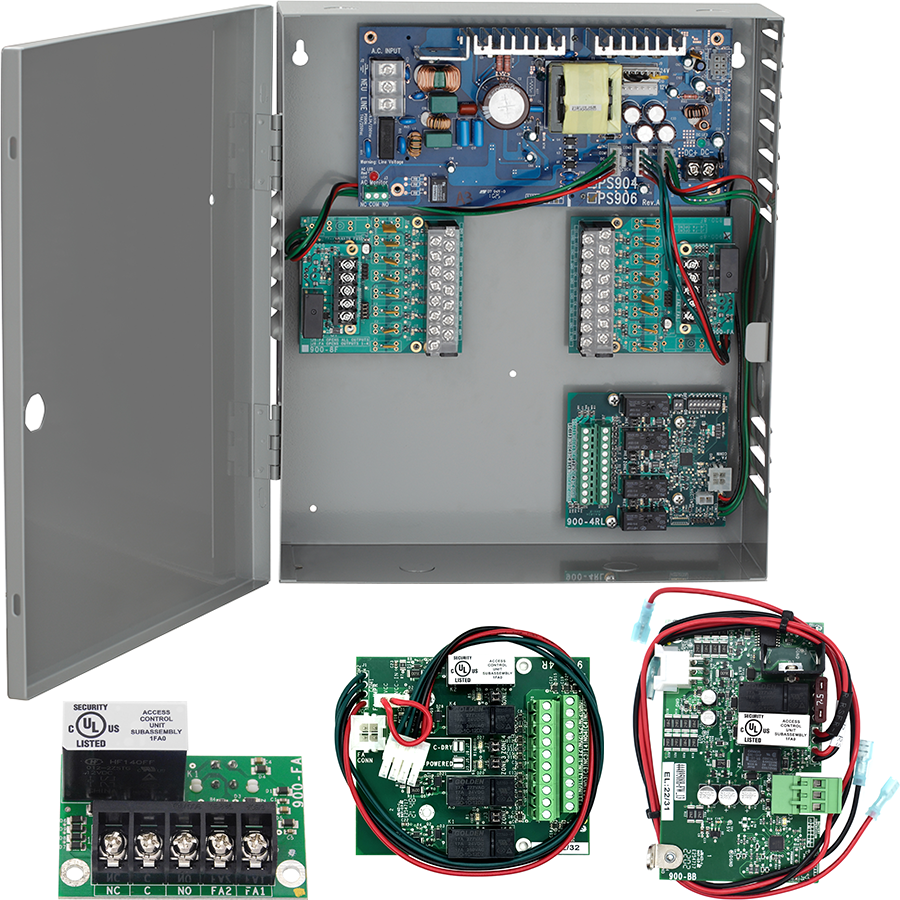

Schlage Electronic Security PS906-4R-FA-BB KIT is a robust power supply solution designed for modern access control systems. With a 6 Amp output, this unit supports both 12V and 24V DC, allowing for field-selectable configuration via jumper settings. The PS906-4R offers a universal input range of 120-240 VAC, ensuring compatibility across various installation environments. This kit features a flat mounting design complemented by polarized locking connectors, simplifying the installation of option boards without the need for cumbersome racks. The power supply is equipped with an AC input and DC output monitoring circuit, complete with visible LED indicators to help you easily track power status. Additionally, the battery backup board auto-selects voltage, providing peace of mind in case of power interruptions. Constructed with a durable grey baked enamel enclosure measuring 14"x12"x4", the power supply is designed for longevity and ease of access. It also complies with UL 294, ULC-S318, RoHS, and FCC part 15 standards, making it a reliable choice for security installations. The option to integrate a fire alarm interface board further enhances its functionality, making the Schlage PS906-4R-FA-BB KIT an essential component for comprehensive security solutions.

KIT - 6 Amp Power Supply, 4 Relay Option Board, Plug-in Fire Alarm, Battery Backup Board Only, 12/24VDC Field Selectable.

The comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 6A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 1, filtered and regulated power (class 2 when used with 900-8P option board)
• Universal 120-240 VAC, fused primary input
• Three polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC part 15 certified

Features:

• Input Voltage: 120/240 VAC, 50/60 Hz, universal input
• Output Voltage: 6A @ 12 or 24 VDC Field selectable with jumper switching supply, 5% regulation, 240mVpp max ripple
• Enclosure: Grey/baked enamel 14"x 12"x 4" (H x W x D) eight 1⁄2" x 3⁄4" knockouts NEMA grade 1 hinged cover with lock down screws
• Operating Temperature: 32° - 120°F (0°- 49° C)
• Battery Backup (install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• AC Primary Fuse Size : 6.3A, 250v, 5 x 20 mm
• Battery Fuse Size: 7.5A 32v ATO blade style
• DC Output Protection: Overload protection - current limited foldback circuit
• LED Indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC Input Termination: 3 position terminal block with protective cover. Wire capacity: 10 AWG max.
• DC Output Termination: 2 position terminal block. Wire capacity: 12 AWG max.
• Option Board Connectors: 3
• Fire Alarm Board Connector: Yes (requires connection on option board)
• Keylock: Optional

Available Option Boards:

• 900-BB: Battery backup option board (installs on main board)
• 900-BBK: Battery backup kit (includes option board and two 7A/hour batteries)
• 900-FA: Emergency interface/fire alarm plug-in (integrates with fire alarm and is used to cut power in case of emergency). Must be installed on option boards
• 900-2RS: 2 relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 relay board; independently controlled, no timing or logic
• 900-4RL: 4 relay board with integrated logic; field programmable; individual or sequential operation for controlling security interlocks, auto operators, and time delay function
• 900-8F: 8 individually fuse protected outputs, giving the flexibility to power multiple devices and provides another layer of protection
• 900-8P: 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2)
• 900-KL: Key lock cover
