SDC 1562ITC Concealed Shear Lock combines advanced security with an aesthetically pleasing design, featuring a totally concealed, high-security, failsafe locking mechanism. This electromagnetic lock operates on 12/24VDC and boasts a robust 2,000 lbs. holding force, ensuring reliable protection for your doors. With a compact depth of just 1-1/4 inches, it is suitable for frames ranging from 1-1/4 inches to 1-3/4 inches. The patented Hi/Shear design includes a floating armature assembly and special alloy steel locking tabs that can be adjusted both vertically and laterally, accommodating wide door gaps, warped, or misaligned doors. Ideal for commercial applications such as warehouses, convention centers, and long-term living facilities, this lock is perfect for interior and perimeter exit doors that require failsafe emergency release capabilities. The modular assembly of the EMLock® design simplifies stock management and installation, while the interlocking EZ mount assembly provides hands-free wiring for convenience. With compatibility across all access control systems and a lifetime warranty, the SDC 1562ITC offers a superior, unobtrusive alternative to traditional magnetic locks, making it a smart choice for any security-minded professional.

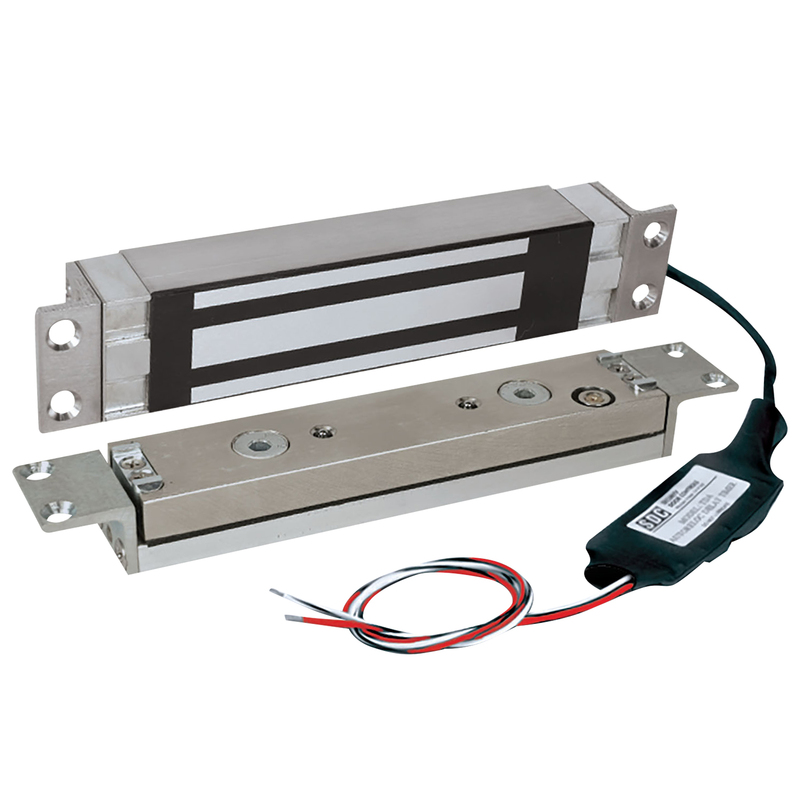

Concealed Shear Lock
Hi/Shear Concealed EMLock, 12/24VDC, 1-1/4" Depth, External Electronics for 1-1/4" to 1-3/4" Frames, 2,000 lbs. Holding Force, 8" by 1-1/2" Lock
The SDC Hi/Shear is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear electromagnetic lock design incorporates a âââÈ âìöâìÃâñfloatingâââÈ âìöâìÃâÈ armature assembly and special alloy steel locking âââÈ âìöâìÃâñtabsâââÈ âìöâìÃâÈ on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Hi/Shear magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.
Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.
Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.
Applications
Manufacturer surcharge: $ 0.0
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: SDC Magnetic Locks and Door Holders
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Upc: 7.12905E+11
