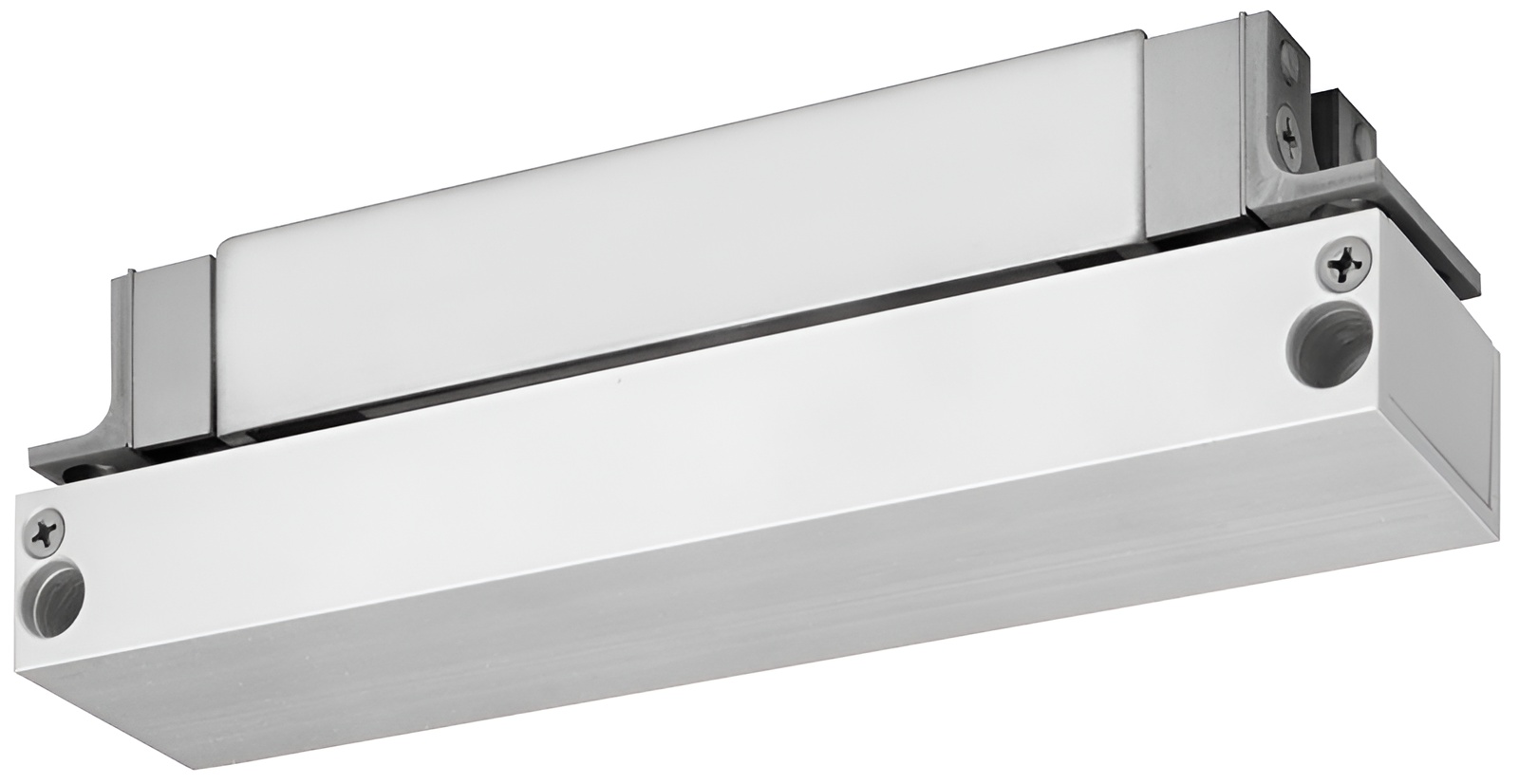

SDC 1562SCV Surface Mount Shear Lock offers a sophisticated solution for high-security access control. Engineered as a semi-concealed electromagnetic lock, this model operates on 12/24VDC and features a compact 1-1/4" depth suitable for frames ranging from 1-1/4" to 1-3/4". Its sleek satin aluminum finish not only enhances aesthetics but also ensures durability in various environments. The patented Hi/Shear design includes a unique floating armature assembly and special alloy steel locking tabs, which can be adjusted both vertically and laterally. This flexibility accommodates door gaps and compensates for misalignments, making it an ideal choice for commercial-grade hollow metal and wood doors, as well as Herculite doors without top rails. Perfectly suited for interior and perimeter exit doors, the SDC 1562SCV is designed for failsafe emergency release, ensuring safety without compromising security. Its modular assembly simplifies installation and maintenance, while the EZ mount system allows for hands-free wiring, significantly reducing setup time. Compatible with any access control system and backed by a lifetime warranty, this magnetic lock is an excellent investment for a variety of applications, including commercial buildings, technology centers, warehouses, and convention centers.
Surface Mount Shear Lock
Semi-ConcealedHi/Shear Concealed EMLock, 12/24VDC, 1-1/4" Depth, External Electronics for 1-1/4" to 1-3/4" Frames, Satin Aluminum Clear Anodized
The SDC Hi/Shear 1562SC and 1562SCHDB are semi-concealed, high security, failsafe locking mechanisms, with superior appearance. The patented Hi/Shear electromagnetic lock design incorporates a âââÈ âìöâìÃâñfloatingâââÈ âìöâìÃâÈ armature assembly and special alloy steel locking âââÈ âìöâìÃâñtabsâââÈ âìöâìÃâÈ on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Hi/Shear magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors without top rails.
Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.
Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.
Applications
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: SDC Magnetic Locks and Door Holders
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
