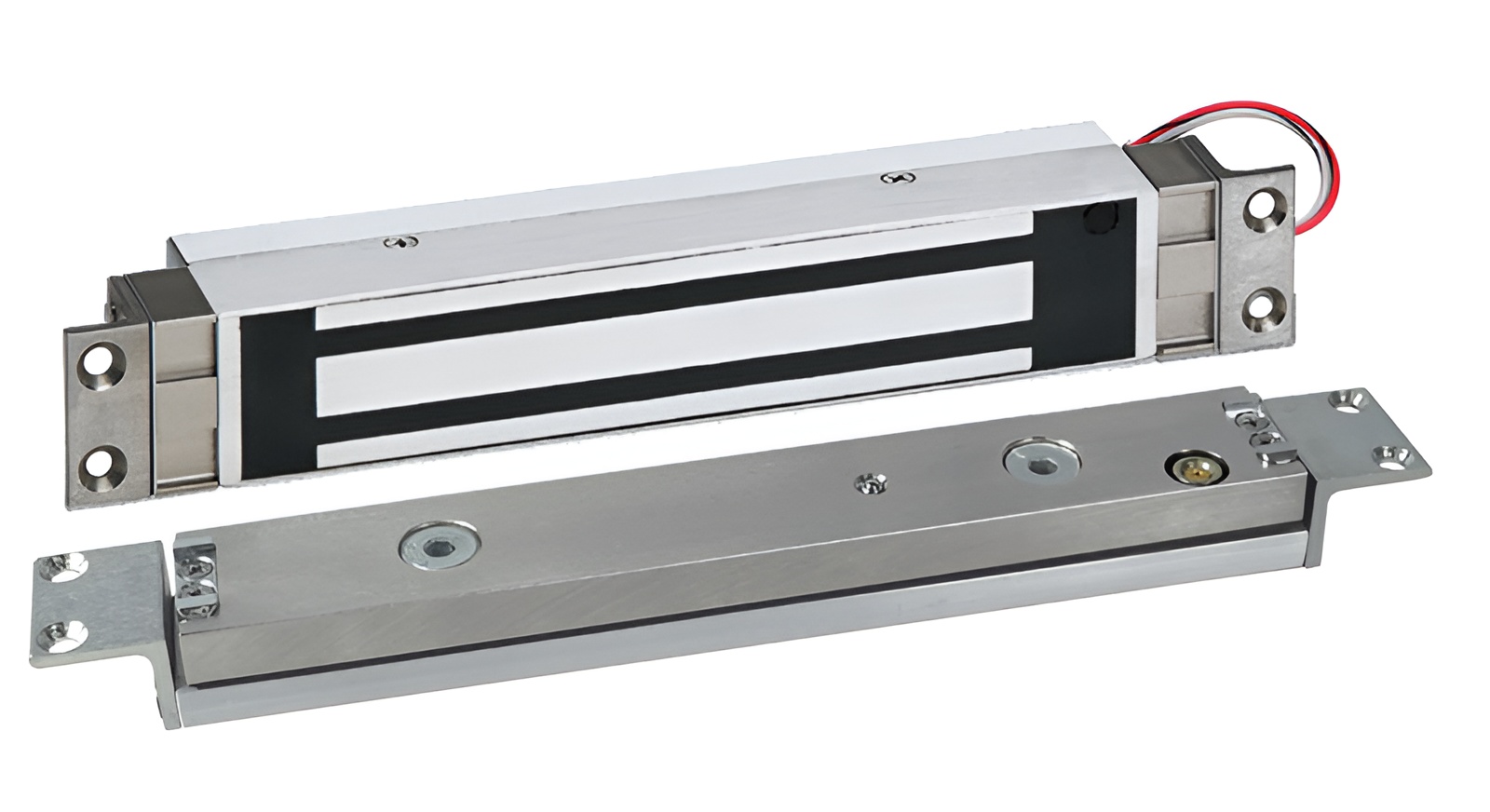

SDC 1565ITCD Concealed Shear Lock

SDC 1565ITCD Concealed Shear Lock offers a high-security, failsafe locking solution perfect for a variety of commercial applications. Designed with a sleek appearance, this concealed electromagnetic lock operates on 12/24VDC and features a robust 2,700 lbs. holding force, ensuring reliable security for your doors. Measuring 10-7/16" by 1-1/2" and with a depth of just 1-5/8", it seamlessly integrates into 1-3/4" to 2" frames. The innovative Hi/Shear design incorporates a floating armature assembly and special alloy steel locking tabs, which are adjustable both vertically and laterally. This flexibility accommodates wide door gaps and compensates for warped or misaligned doors, making it ideal for hollow metal, wood doors, and Herculite doors with top rails. This locking mechanism is perfectly suited for interior doors, perimeter exit doors, and entrances requiring failsafe emergency release capabilities. Plus, the modular assembly of the patented EMLock® design ensures easy stocking, installation, and maintenance. The SDC 1565ITCD is compatible with any access control system and is backed by a lifetime warranty, positioning it as a superior alternative to lower-cost imports. Choose SDC for a reliable, aesthetically pleasing security solution for commercial buildings, warehouses, and more.

Concealed Shear Lock

Hi/Shear Concealed EMLock, 12/24VDC, Door Position Switch, 1-5/8" Depth, Integrated Electronics for 1-3/4" to 2" Frames, 2,700 lbs. Holding Force, 10-7/16" by 1-1/2" Lock

The SDC Hi/Shear is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear electromagnetic lock design incorporates a ñfloatingî armature assembly and special alloy steel locking ñtabsî on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Hi/Shear magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.

Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.

Applications

• Commercial Buildings
• Technology Centers
• Warehouses
• Industrial Facilities
• Technology Centers
• Convention Centers
• Long Term Living Facilities
