SDC 1566ITC Concealed Shear Lock

SDC 1566ITC Concealed Shear Lock offers a high-security solution with a sleek, failsafe design perfect for various commercial applications. Operating on 12/24VDC, this electromagnetic lock boasts an impressive 2,700 lbs. of holding force, ensuring robust protection for interior doors, perimeter exits, and entrances that necessitate reliable emergency release capabilities. The innovative Hi/Shear design includes a patented floating armature assembly and specialized alloy steel locking tabs, which can be adjusted both vertically and laterally. This feature accommodates wide door gaps and compensates for warped or misaligned doors, making it ideal for use on hollow metal, wood, and Herculite doors with top rails. With dimensions of 10-7/16" by 1-1/2" and a depth of 1-5/8", the SDC 1566ITC is designed for easy installation and maintenance, thanks to its modular assembly. The EZ mount assembly allows for hands-free wiring and secure mounting, which significantly reduces installation time. This lock is compatible with any access control system, ensuring versatility in various settings, including commercial buildings, warehouses, and convention centers. Plus, it comes with a lifetime warranty, providing peace of mind for your security investments.

Concealed Shear Lock

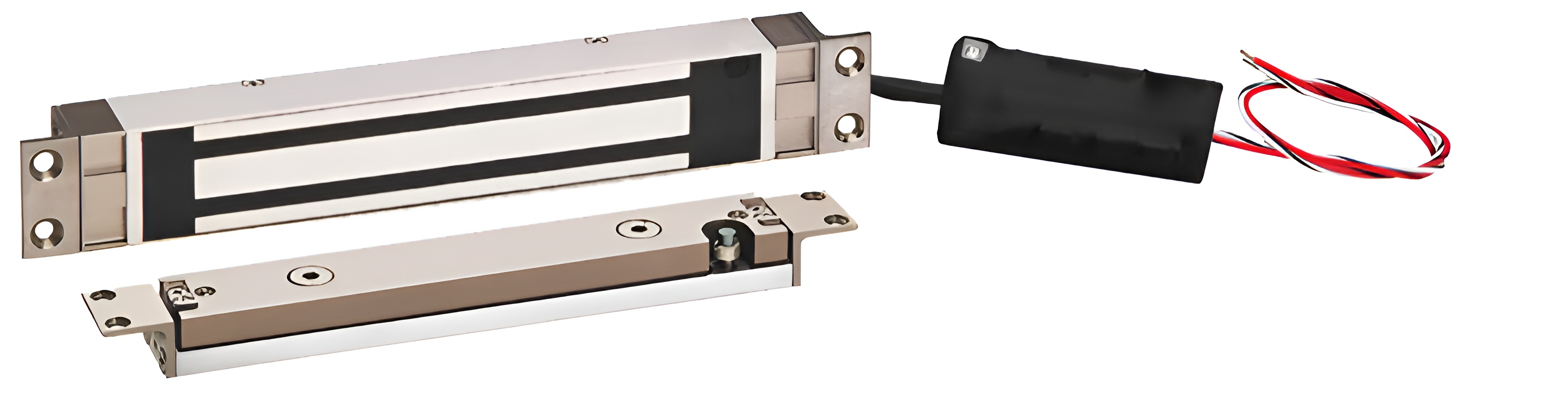

Hi/Shear Concealed EMLock, 12/24VDC, 1-5/8" Depth, Integrated Electronics for 1-3/4" to 2" Frames, 2,700 lbs. Holding Force, 10-7/16" by 1-1/2" Lock

The SDC Hi/Shear is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear electromagnetic lock design incorporates a ñfloatingî armature assembly and special alloy steel locking ñtabsî on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Hi/Shear magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.

Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.

Applications

• Commercial Buildings
• Technology Centers
• Warehouses
• Industrial Facilities
• Technology Centers
• Convention Centers
• Long Term Living Facilities
