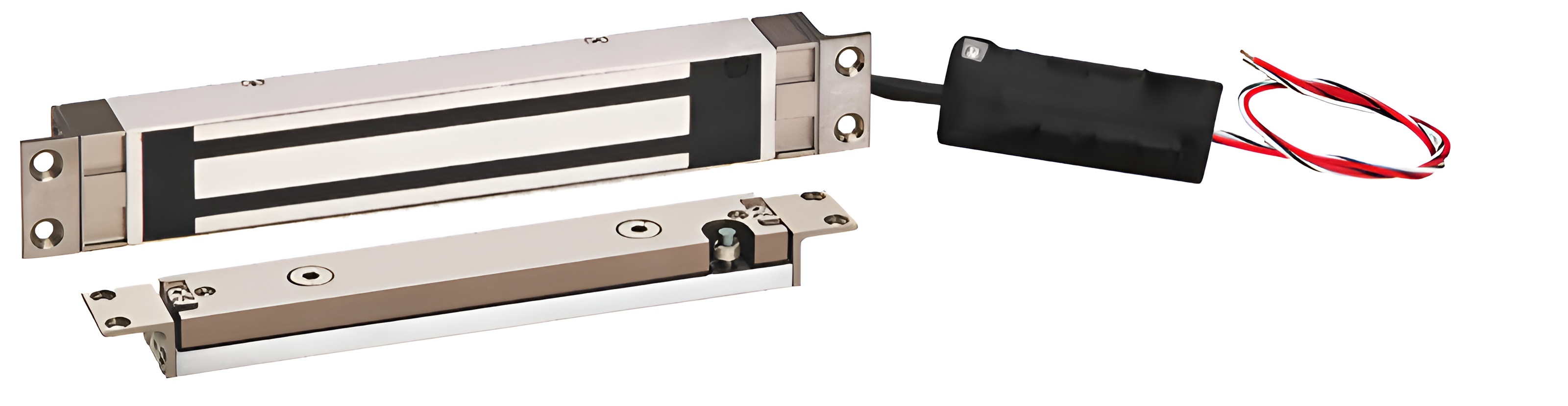

SDC 1566ITCD Concealed Shear Lock

SDC 1566ITCD Concealed Shear Lock offers a blend of high security and elegant design, making it an ideal choice for various commercial applications. This concealed electromagnetic lock operates on a versatile 12/24VDC power supply and features a robust holding force of 2,700 lbs, ensuring reliable security for your premises. With a depth of just 1-5/8 inches, it seamlessly integrates into 1-3/4" to 2" door frames, providing an unobtrusive look without compromising on strength. The patented Hi/Shear design includes a floating armature assembly and special alloy steel locking tabs, both of which can be adjusted vertically and laterally. This unique feature allows for quick compensation for wide door gaps, warped doors, or misalignments, making installation efficient and stress-free. The lock is suitable for a range of settings, including commercial buildings, technology centers, warehouses, and long-term living facilities. In addition to its practical benefits, the SDC 1566ITCD is compatible with any access control system and is backed by a lifetime warranty, ensuring peace of mind. Its modular assembly simplifies maintenance and upgrades, while the EZ mount assembly allows for hands-free wiring during installation. Elevate your security with the SDC 1566ITCD, where sophistication meets superior functionality.

Concealed Shear Lock

Hi/Shear Concealed EMLock, 12/24VDC, Door Position Switch, 1-5/8" Depth, Integrated Electronics for 1-3/4" to 2" Frames, 2,700 lbs. Holding Force, 10-7/16" by 1-1/2" Lock

The SDC Hi/Shear is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear electromagnetic lock design incorporates a ñfloatingî armature assembly and special alloy steel locking ñtabsî on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Hi/Shear magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.

Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.

Applications

• Commercial Buildings
• Technology Centers
• Warehouses
• Industrial Facilities
• Technology Centers
• Convention Centers
• Long Term Living Facilities
