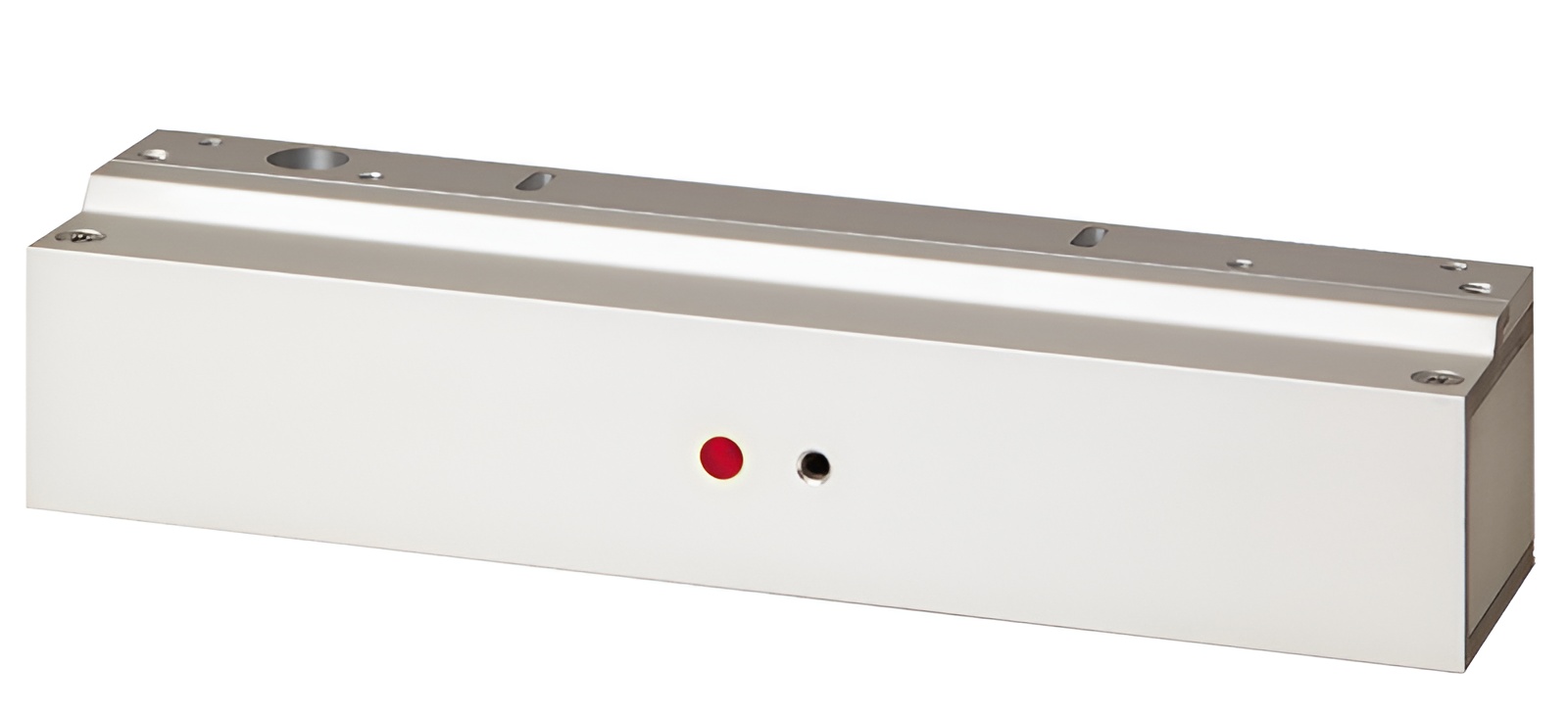

SDC 1581SBDV Single Delay Egress Mag Lock delivers a powerful combination of security and convenience for various commercial applications. With a robust 650 lbs holding force, this ANSI Grade 1 modular magnetic lock ensures reliable access control while maintaining compliance with the BOCA National Building Code. Designed for both interior and perimeter exit doors, it features failsafe emergency release capability, making it an ideal choice for environments such as commercial buildings, warehouses, and long-term living facilities. The innovative EMLock® design incorporates a modular assembly that facilitates easy stocking, installation, and servicing without the need to remove the lock from the door frame. Its interlocking EZ mount assembly allows hands-free wiring, streamlining the installation process. The lock’s matte silver finish not only enhances its aesthetic appeal but also provides a less obtrusive appearance compared to traditional stainless steel magnetic locks. Compatible with any access control system, the SDC 1581SBDV is a cost-effective solution that offers superior features without compromising quality. Backed by a lifetime warranty, this mag lock is an excellent investment for professionals seeking reliable security solutions.
Single Delay Egress Mag Lock
ExitCheck Mini Delayed Egress EMLock, 12/24 VDC, 650 lbs. Holding Force, BOCA National Building Code Compliant, Satin Aluminum Clear Anodized
ANSI Grade 1, Modular Magnetic Lock, 650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.
Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.
Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.
Applications
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: SDC Magnetic Locks and Door Holders
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Upc: 7.12905E+11
